Power supply and what it means for panel wiring

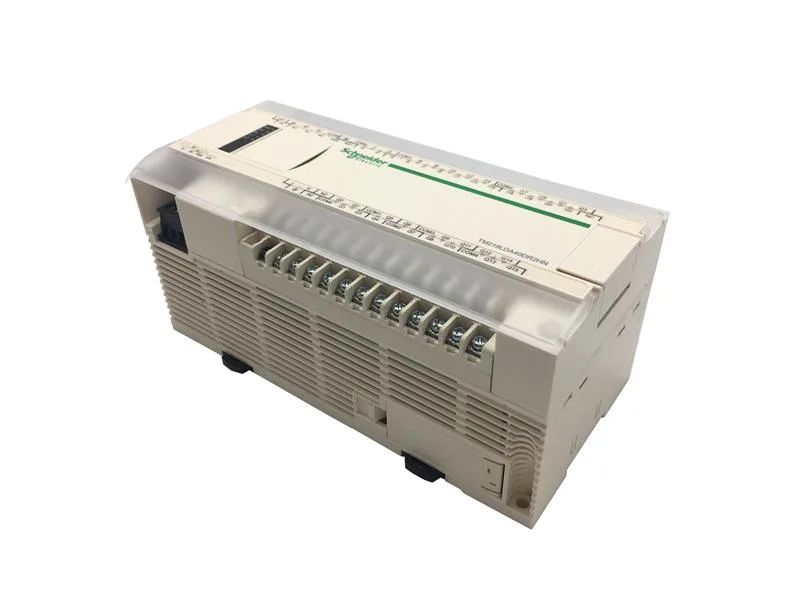

The TM218LDA40DR2HN runs on a universal AC supply — rated 100-240 Vac, 50/60 Hz, with a tolerance band of 85-264 Vac including ripple. That means it lands on a standard machine control transformer or direct line feed without a separate DC power supply module. Inrush current hits 30 A at 110 Vac and 60 A at 240 Vac — the internal bulk caps charge hard on power-up. Size the upstream circuit breaker or fuse to ride through this pulse without nuisance tripping; a C-curve MCB or slow-blow fuse handles it cleanly. The controller tolerates a 10 ms power dip at 100 Vac before the logic resets — enough to ride through a contactor dropout or brief line sag without a UPS in most industrial environments. Continuous output power draw is 34 W — the internal 24 VDC supply for the IO bus and sensor power is already accounted for in that figure. No external 24 V supply needed for the base unit.
IO complement — 24 inputs, 16 relay outputs, plus analog
Twenty regular digital inputs plus four fast inputs (for high-speed counters) give you 24 sinking inputs total at 24 VDC. The four fast channels handle encoder or pulse-train inputs up to the HSC rate without missing edges. Sixteen relay outputs on the base unit — rated for switching AC and DC loads up to the contact ratings. Relay outputs are forgiving for mixed-voltage field wiring; no polarity concerns, and they isolate the load from the logic side. Two analog outputs are built in — no separate analog module needed for simple setpoint or speed-reference signals. Handy for driving a small VFD or valve positioner straight from the base unit. Expansion capacity goes to 248 total I/O points with up to 7 expansion modules and a maximum of 90 relay outputs across the system. That covers a medium-sized machine or small line without swapping to a larger controller family.
Isolation and compliance — what the 1780 Vac rating means
Isolation between the AC power supply and the internal logic, IO, and protective earth is rated at 1780 Vac / 2500 Vdc. That's a reinforced insulation level — the controller can be wired directly to line voltage on the same panel as sensitive analog circuits without galvanic coupling issues.
