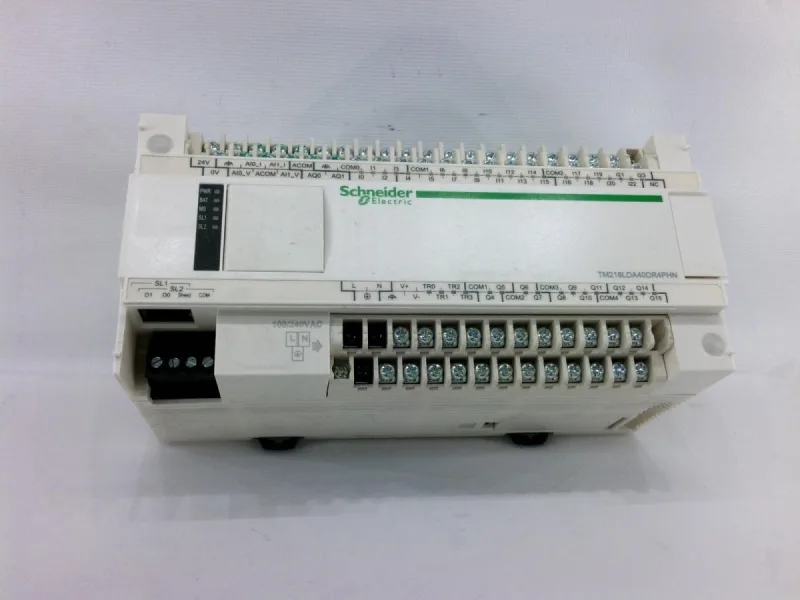

Schneider Electric TM218LDA40DR4PHN

Schneider TM218LDA40DR4PHN Modicon M218 Controller, Obsolete

MPNTM218LDA40DR4PHN
Obsolete

Schneider Modicon M218 logic controller, TM218LDA40DR4PHN, 40 discrete I/O, 2 ms response, 4700 Ohm input impedance.

$428.00 – $951.61Ref. price · indicative, final on quote
Schneider Electric TM218LDA40DR4PHN datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TM218LDA40DR4PHN key specifications
ParameterValue
Range of productModicon M218
Discrete output typeTransistor Relay
Product or component typeLogic controller
Discrete input voltage typeDC
Maximum voltage drop<1.5 V
Output voltage limits19.2...28.8 V DC 19.2...28.8 V
Supply voltage limits85...264 V
Discrete input voltage24 V
Analogue output voltage- 10...10 V 0...10 V
Supply voltage100...240 V AC
Analogue input current4...20 mA 0...20 mA
Analogue output current0...20 mA 4...20 mA

All specifications

TM218LDA40DR4PHN additional specifications
ParameterValue
Power supply input current300 mA at 22...27 V
Power consumption in34 W at 100...240 V AC
IP degree of protectionIP20
Maximum cable distance between devicesShielded cable: <5 m
Response time2 ms turn-on, turn-off
Pollution degree2
Shock resistance15 gn for 11 ms
Storage altitude0...3000 m
Relative humidity95 %, without condensation
Operating altitude0...2000 m
Vibration resistance3.5 mm at 5...150 Hz
Input impedance4700 Ohm for standard input 2800 Ohm for high speed input
Discrete i (O number)40
Analogue input number24
Discrete input number24 voltage inputs
Discrete output number12 relay output 4 transistor output
Ambient air temperature for storage-25...70 °C
Ambient air temperature for operation0...55 °C

Product details

Sourcing reality

The TM218LDA40DR4PHN: Schneider marked this controller obsolete. If you're filling a BOM line for a legacy panel, we can source it through our surplus and broker network. No official replacement part number appears in the lifecycle record, so cross-check your existing program's I/O map and response timing before committing.

Key specs that matter for fit

Response time is 2 ms turn-on and turn-off – this matches most standard logic cycles but confirm if your application uses faster input capture. Input impedance is 4700 Ω for standard inputs and 2800 Ω for high-speed inputs; sensor sourcing current needs to handle that load. Supply voltage is 100–240 V AC, power consumption 34 W. The unit is rated IP20 and pollution degree 2, suitable for clean indoor panels.

Frequently asked questions

What is the response time of the TM218LDA40DR4PHN?

The response time is 2 ms both turn-on and turn-off.

What is the input impedance of the TM218LDA40DR4PHN?

Standard inputs are 4700 Ohm; high-speed inputs are 2800 Ohm.
