Schneider Electric TM218LDA40DRN

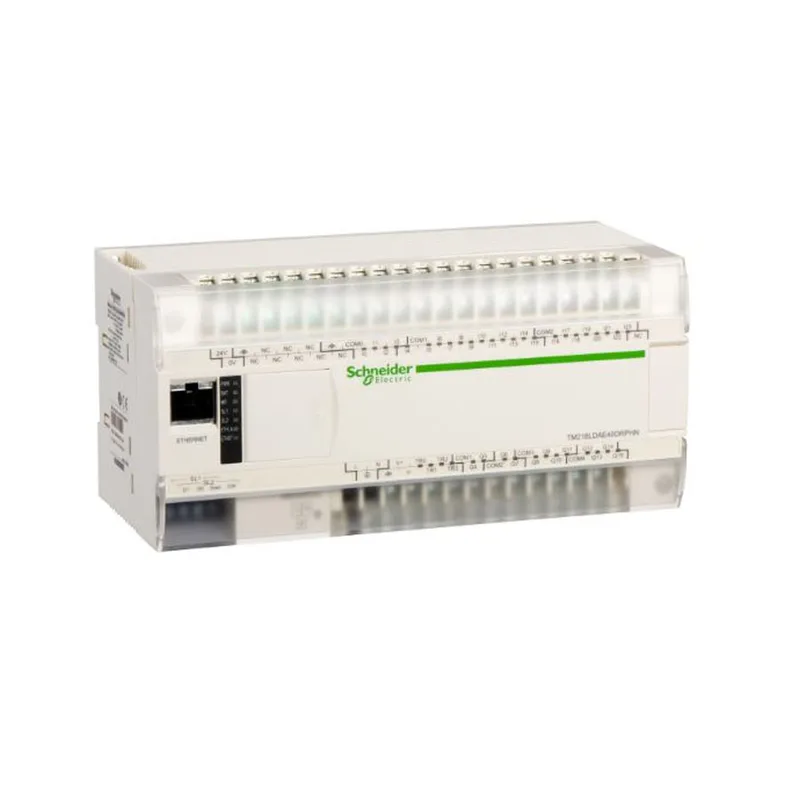

Schneider TM218LDA40DRN Modicon M218 Logic Controller, 22 In

MPN TM218LDA40DRN

Schneider Electric Modicon M218 Logic Controller, 40 I/O: 22 digital inputs (Sink/Source, 0…28.8 VDC, 7 mA enhanced / 5 mA standard) and 16 relay outputs. Part number TM218LDA40DRN.

$234.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

TM218LDA40DRN specifications
ParameterValue
Input typeSink/Source
Product typeModicon M218 Logic Controller

Product details

The Schneider TM218LDA40DRN is a Modicon M218 logic controller with 40 I/O points: 22 digital inputs that accept sink or source wiring over 0…28.8 VDC, and 16 relay outputs for switching loads up to the relay's rating.

Input specifics and wiring flexibility

The 22 inputs are configurable as sink or source, so both PNP and NPN sensors connect without pull-up/down resistors. Each input draws either 7 mA (enhanced mode) or 5 mA (standard mode), both within the 0...28.8 VDC range. There is no overvoltage protection on the inputs. In environments with inductive switching or long cable runs, an external surge suppressor on each input line is worth budgeting for.

We quote this part against an RFQ with confirmed lead time and pricing. No known cross-reference or alternate MPN exists in the same family — the TM218LDA40DRN is the specific variant for 22 inputs and relay outputs.

MPN
TM218LDA40DRN
