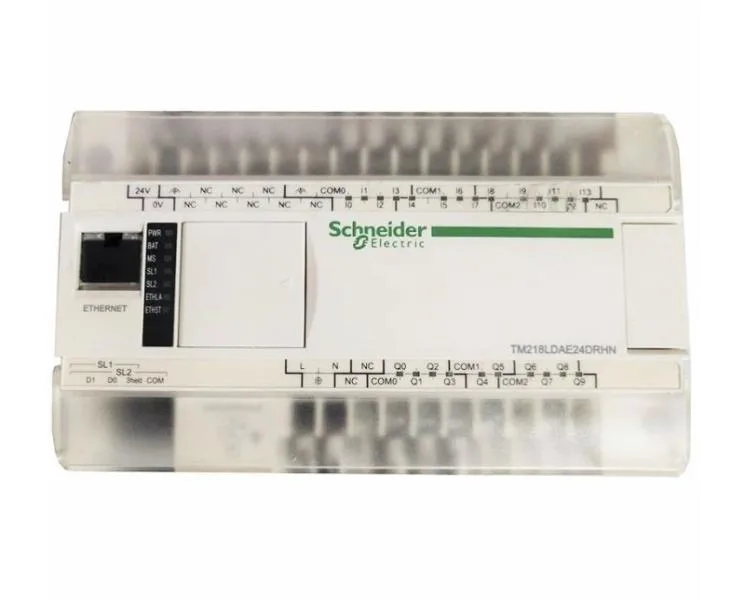

Schneider Electric TM218LDAE24DRHN — PLCs (Programmable Logic Controllers)

Schneider TM218LDAE24DRHN Modicon M218, Rated 100-240 Vac

MPNTM218LDAE24DRHN

Schneider Modicon M218 Logic Controller, TM218LDAE24DRHN, Rated 100...240 Vac, 30/60 A inrush, 24 I/O, 4 expansion slots, 25 W continuous output.

$290.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

TM218LDAE24DRHN key specifications
ParameterValue
Product typeModicon M218 Logic Controller
VoltageRated : 100...240 VacLimit (including ripple) : 85...264 Vac
Maximum inrush currentAt 110 Vac : 30 AAt 240 Vac : 60 A
Continuous output power25 W
Power interruption time10 ms at 100 Vac
Isolation between AC power supply and internal logic, i (O and protective ground)1780 Vac/2500 Vdc
Frequency50/60 Hz
Shipping weight2 Kg
Rated100...240 Vac
Analog inputNo
Analog outputNo
Digital input10 regular inputs and 4 fast inputs (HSC)
Digital output10 relay outputs
Estimated lead time1 - 10 working days.
Limit (including ripple)85...264 Vac
Maximum number of i (O points)152
Maximum number of relay outputs42
Maximum number of expansion modules4
TM218LDAE24DRHN — By operating voltage
ParameterValue
At 110 Vac30 A
At 240 Vac60 A

Product details

What you're picking up

The TM218LDAE24DRHN: This is a current-production Modicon M218 controller, Schneider's compact brick for small machine control. It runs on 100...240 Vac (85...264 Vac including ripple) at 50/60 Hz, and the inrush at switch-on can hit 30 A at 110 Vac or 60 A at 240 Vac — factor that into your power supply sizing if you bang power multiple times a shift. It comes with 10 regular digital inputs plus 4 fast inputs for high-speed counting, and 10 relay outputs on board. You can add up to 4 expansion modules to reach 152 I/O max, with up to 42 relay outputs across the system.

Power and isolation

Continuous output power is rated at 25 W. Isolation between the AC supply and the logic/I/O/PE is 1780 Vac / 2500 Vdc — solid for industrial environments where ground loops are a headache.

MPN
TM218LDAE24DRHN
