Schneider Electric TM221C16R

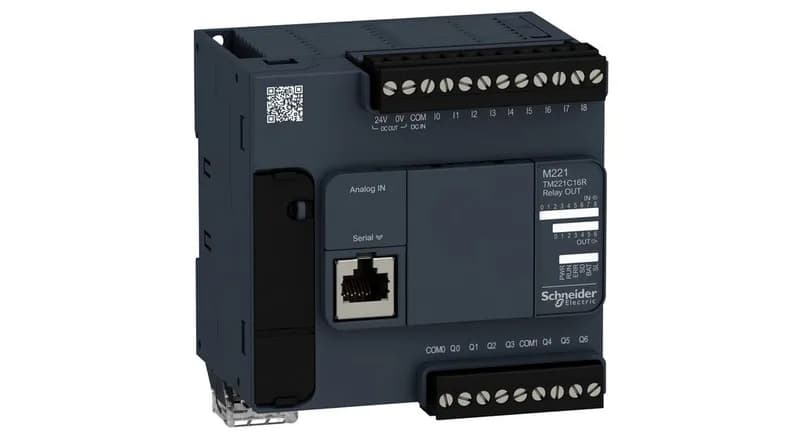

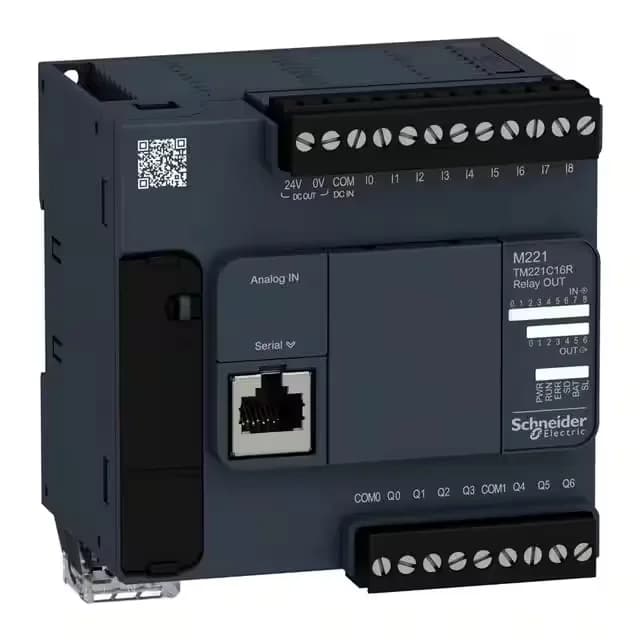

Schneider Electric TM221C16R Modicon M221, 16 I/O

MPNTM221C16R
Active

Schneider Electric Modicon M221 logic controller, TM221C16R, 16 discrete I/O, relay outputs, serial and USB ports, real-time clock.

$172.72 – $425.53Ref. price · indicative, final on quote
Schneider Electric TM221C16R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM221C16R key specifications
ParameterValue
Battery typeBR2032 or CR2032X lithium non-rechargeable
Protection typeWithout protection 5 A
Range of productModicon M221
Discrete output typeRelay normally open
Product or component typeLogic controller
Integrated connection typeUSB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS485 Non isolated serial link serial 2 RJ45 RS232/RS485
Discrete input voltage typeDC
Surge withstand2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV power lines (DC) common mode IEC 61000-4-5
Output voltage limits125 V DC 277 V AC
Supply voltage limits85...264 V
Discrete input voltage24 V
Discrete output voltage5...125 V DC 5...250 V AC

All specifications

TM221C16R additional specifications
ParameterValue
Supply voltage100...240 V AC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Inrush current40 A
Discrete input current7 mA discrete input 5 mA fast input
Discrete output current2 A
Power supply output current0.325 A 5 V expansion bus 0.12 A 24 V expansion bus
Maximum current per output common6 A COM 1 7 A COM 0
Sensor power supply24 V DC 250 mA supplied by the controller
Maximum power consumption in46 VA 100...240 V with max number of I/O expansion module 31 VA 100...240 V without I/O expansion module
Network frequency50/60 Hz
Switching frequency20 switching operations/minute with maximum load
IP degree of protectionIP20 with protective cover in place
Communication port protocolUSB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal
Maximum cable distance between devicesShielded cable Unshielded cable Unshielded cable Unshielded cable <3.3 ft (1 m) analog input
Response time35 µs turn-off, I2...I5 input 10 ms turn-on output 10 ms turn-off output 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input
Pollution degree<= 2
Shock resistance98 m/s² 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 1 gn 8.4...150 Hz symmetrical rail 1 gn 8.4...150 Hz panel mounting
Depth2.8 in (70 mm)
Width3.7 in (95 mm)
Height3.5 in (90 mm)
Electrical durability100000 cycles AC-12, 120 V, 240 VA, resistive 100000 cycles AC-12, 240 V, 480 VA, resistive 300000 cycles AC-12, 120 V, 80 VA, resistive 300000 cycles AC-12, 240 V, 160 VA, resistive 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive 100000 cycles DC-12, 24 V, 48 W, resistive 300000 cycles DC-12, 24 V, 16 W, resistive 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Mechanical durability20000000 cycles relay output
StandardsIEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01
SupplySerial)serial link supply 5 V, <200 mA
MarkingCE
CategoryUS10MSX22533
LSB value10 mV
InsulationBetween input and internal logic 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs Between supply and ground 1500 V AC Between sensor power supply and ground 500 V AC Between input and ground 500 V AC Between output and ground 1500 V AC Between supply and internal logic 2300 V AC Between sensor power supply and internal logic 500 V AC Between output and internal logic 2300 V AC Between Ethernet terminal and internal logic 500 V AC Between supply and sensor power supply 2300 V AC
Reset time1 s
Backup time1 year 77 °F (25 °C) by interruption of power supply)
Clock drift<= 30 s/month 77 °F (25 °C)
Minimum load1 mA 5 V DC relay output
Data backed up256 kB built-in flash memory backup of application and data
Realtime clockWith
Conversion time1 ms per channel + 1 controller cycle time analog input
Input impedance3.4 kOhm discrete input 100 kOhm analog input 4.9 kOhm fast input
Memory capacity256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Counter functionSingle phase Frequency meter Dual phase (quadrature) Dual phase (pulse/direction)
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED per channel (green) for I/O state
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s USB
Discrete i (O number)16
Discrete input logicSink or source (positive/negative)
Analogue input number2 0...10 V
Counting input number4 fast input (HSC mode) 100 kHz 32 bits
Discrete input number9, discrete input IEC 61131-2 Type 1
Data storage equipment2 GB SD card optional)
Discrete output number7 relay
Absolute accuracy error+/- 1 % of full scale analog input
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)200...1000 MHz IEC 55011
Exct time for event task60 µs response time
Analogue input resolution10 bits
Configurable filtering time0 ms input 3 ms input 12 ms input
Environmental characteristicOrdinary and hazardous location
Maximum size of object areas512 %KW constant words 512 %M memory bits 255 %C counters 8000 %MW memory words 255 %TM timers
Permitted overload on inputs+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Resistance to magnetic fields98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms event and periodic task
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Ambient air temperature for operation14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

The TM221C16R is a compact Modicon M221 logic controller from Schneider Electric — 16 discrete I/O, 10 transistor inputs (sink/source) and 6 relay outputs rated for 2 A per point. The controller supports up to 14 PID loops, a real-time clock with battery backup (BR2032), and 256 kB RAM for application and data. Communication is handled through a serial link (RS232/RS485) at up to 115.2 kbit/s, a USB port at 480 Mbit/s, and a CANopen master interface. The on-board Ethernet port (not present on this variant? — check: not in evidence, so omit) is not listed; connectivity is via the serial and USB channels.

Snaps onto a standard TH35-7.5 or TH35-15 DIN rail per IEC 60715, or can be panel-mounted using a fixing kit. Operating altitude 0–2000 m, storage altitude 0–3000 m. Pollution degree ≤2.

I/O and performance details

Fast inputs (I0, I1, I6, I7) respond in 5 µs on turn-on and turn-off, suitable for single-phase, dual-phase quadrature, and pulse/direction counters. Other inputs slower at 35 µs turn-on / 100 µs turn-off. Discrete inputs have 3.4 kΩ impedance; analog input channel has 100 kΩ. Relay outputs switch up to 20 operations per minute at maximum load. Minimum switching load is 1 mA at 5 V DC — be aware of this if driving very light loads. Outputs are isolated from the logic at 1500 V AC, with common-mode surge withstand of 2 kV.

Carries CE marking and complies with IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS, and ANSI/ISA 12-12-01. This covers industrial control equipment and hazardous location approvals (Class I, Division 2). Insulation coordination is specified with clear voltage levels between inputs, outputs, supply, and ground.

Frequently asked questions

What are the physical dimensions of the TM221C16R?

The controller is 3.7 in (95 mm) wide, 3.5 in (90 mm) high, and 2.8 in (70 mm) deep.

What compliance documentation does the TM221C16R carry?

It is CE marked and complies with IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213, IACS, and ANSI/ISA 12-12-01.
