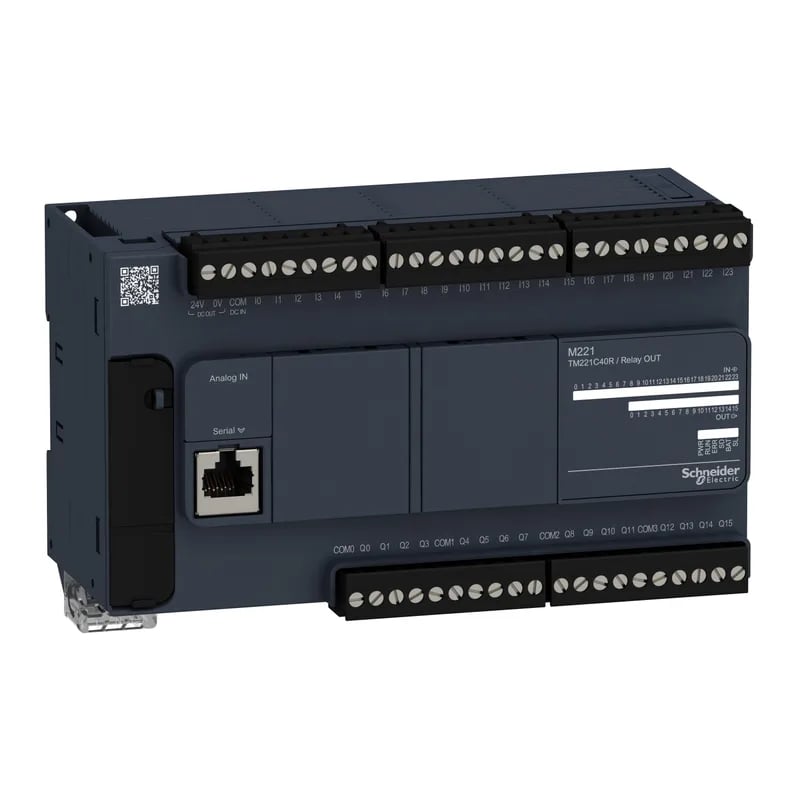

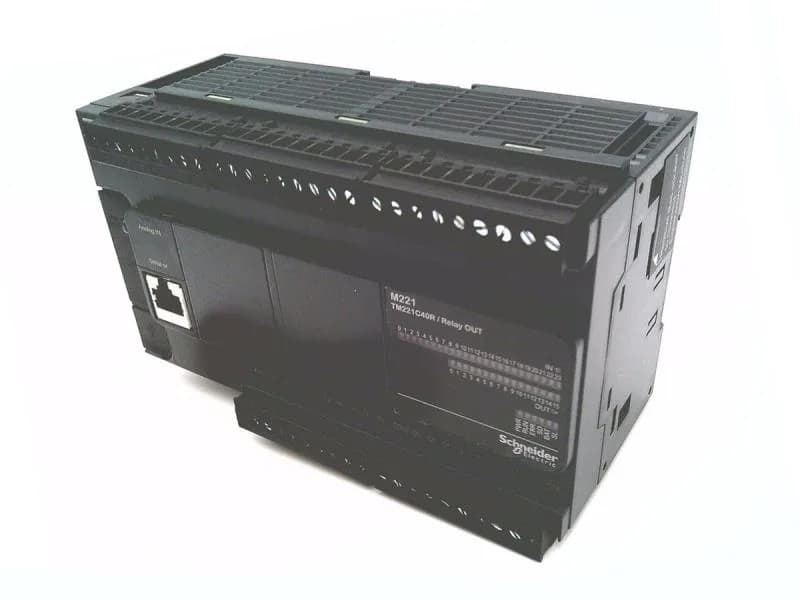

Schneider Electric TM221C40R

Schneider TM221C40R Modicon M221, 40 I/O logic controller, c

MPNTM221C40R
Active

Schneider Modicon M221 logic controller, 40 discrete I/O, relay outputs, 24 V DC sensor supply, 256 kB memory, current production.

$192.77 – $572.56Ref. price · indicative, final on quote
Schneider Electric TM221C40R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM221C40R key specifications
ParameterValue
Battery typeBR2032 or CR2032X lithium non-rechargeable
Protection typeWithout protection 5 A
Range of productModicon M221
Discrete output typeRelay normally open
Product or component typeLogic controller
Integrated connection typeUSB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS485 Non isolated serial link serial 2 RJ45 RS232/RS485
Discrete input voltage typeDC
Surge withstand2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV power lines (DC) common mode IEC 61000-4-5
Output voltage limits125 V DC 277 V AC
Supply voltage limits85...264 V
Discrete input voltage24 V
Discrete output voltage5...125 V DC 5...250 V AC

All specifications

TM221C40R additional specifications
ParameterValue
Supply voltage100...240 V AC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Inrush current40 A
Discrete input current7 mA discrete input 5 mA fast input
Discrete output current2 A
Power supply output current0.52 A 5 V expansion bus 0.24 A 24 V expansion bus
Maximum current per output common7 A
Sensor power supply24 V DC 250 mA supplied by the controller
Maximum power consumption in67 VA 100...240 V with max number of I/O expansion module 37 VA 100...240 V without I/O expansion module
Network frequency50/60 Hz
Switching frequency20 switching operations/minute with maximum load
IP degree of protectionIP20 with protective cover in place
Communication port protocolUSB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal
Maximum cable distance between devicesShielded cable Unshielded cable Unshielded cable Unshielded cable <3.3 ft (1 m) analog input
Response time35 µs turn-off, I2...I5 input 10 ms turn-on output 10 ms turn-off output 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input
Pollution degree<= 2
Shock resistance98 m/s² 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 1 gn 8.4...150 Hz symmetrical rail 1 gn 8.4...150 Hz panel mounting
Depth2.8 in (70 mm)
Width6.3 in (160 mm)
Height3.5 in (90 mm)
Electrical durability100000 cycles AC-12, 120 V, 240 VA, resistive 100000 cycles AC-12, 240 V, 480 VA, resistive 300000 cycles AC-12, 120 V, 80 VA, resistive 300000 cycles AC-12, 240 V, 160 VA, resistive 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive 100000 cycles DC-12, 24 V, 48 W, resistive 300000 cycles DC-12, 24 V, 16 W, resistive 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Mechanical durability20000000 cycles relay output
StandardsIEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01
SupplySerial)serial link supply 5 V, <200 mA
MarkingCE
CategoryUS10MSX22533
LSB value10 mV
InsulationBetween input and internal logic 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs Between supply and ground 1500 V AC Between sensor power supply and ground 500 V AC Between input and ground 500 V AC Between output and ground 1500 V AC Between supply and internal logic 2300 V AC Between sensor power supply and internal logic 500 V AC Between output and internal logic 2300 V AC Between Ethernet terminal and internal logic 500 V AC Between supply and sensor power supply 2300 V AC
Reset time1 s
Backup time1 year 77 °F (25 °C) by interruption of power supply)
Clock drift<= 30 s/month 77 °F (25 °C)
Minimum load1 mA 5 V DC relay output
Data backed up256 kB built-in flash memory backup of application and data
Realtime clockWith
Conversion time1 ms per channel + 1 controller cycle time analog input
Input impedance3.4 kOhm discrete input 100 kOhm analog input 4.9 kOhm fast input
Memory capacity256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM
Regulation loopAdjustable PID regulator up to 14 simultaneous loops
Counter functionSingle phase Pulse/direction A/B
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED per channel (green) for I/O state
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s USB
Discrete i (O number)40
Discrete input logicSink or source (positive/negative)
Analogue input number2 0...10 V
Counting input number4 fast input (HSC mode) 100 kHz 32 bits
Discrete input number24, discrete input IEC 61131-2 Type 1
Data storage equipment2 GB SD card optional)
Discrete output number16 relay
Absolute accuracy error+/- 1 % of full scale analog input
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)200...1000 MHz IEC 55011
Exct time for event task60 µs response time
Analogue input resolution10 bits
Configurable filtering time0 ms input 3 ms input 12 ms input
Environmental characteristicOrdinary and hazardous location
Maximum size of object areas512 %M memory bits 512 %KW constant words 8000 %MW memory words 255 %C counters 255 %TM timers
Permitted overload on inputs+/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Resistance to magnetic fields98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8
Execution time per instruction0.2 µs Boolean
Execution time for 1 KInstruction0.3 ms event and periodic task
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Ambient air temperature for operation14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

What the ratings mean in the field

The TM221C40R: Relay outputs carry a minimum load of 1 mA at 5 V DC — that's the spec that matters when you're switching small signal relays or pilot lights. Switches up to 20 times per minute at max load, so it'll handle a contactor cycling for a conveyor but not a high-speed pick-and-place. Fast inputs I0, I1, I6, I7 turn off in 35 µs and turn on in 5 µs. That's enough for single-phase pulse counting or encoder feedback on a slow axis. If you need high-speed counting, this controller also handles A/B quadrature with the same fast inputs. The 24 V DC sensor supply gives you 250 mA to power proximity sensors or photo-eyes directly from the controller — one less power supply to lug around. Isolation between logic and outputs is 2300 V AC; between supply and ground is 1500 V AC. That's solid for most industrial environments without active grounding schemes.

Built-in regulation and backup

Backup goes to built-in flash memory (256 kB for app and data), so a battery failure doesn't lose the program. The battery just keeps the clock and volatile variables. On the van I'd carry a spare BR2032 or CR2032X; they're common coin cells.

Compliance and paperwork

Stamped CE, listed to UL 508, CSA C22.2 No. 213, and IEC 61131-2. Also carries IACS and ANSI/ISA 12-12-01 for hazardous location use — Class I Division 2 groups A,B,C,D. If your FAT or site acceptance needs a declaration, the standards are all published; the CE marking covers RoHS and REACH by self-declaration under the Low Voltage Directive. Pollution degree 2 — normal factory floor, not conductive dust or wet environments. Operating altitude to 2000 m, storage to 3000 m. That covers most installations outside high-altitude mining or pressurised chambers.

Sourcing note

This part is active and widely stocked. Submit an RFQ with your quantity and target lead time; we'll quote against the Schneider distributor network. No obsolete scavenging or cross-reference guesswork.

Frequently asked questions

What are the key compliance documents for TM221C40R?

CE, UL 508, CSA C22.2 No. 213, IEC 61131-2, IACS, and ANSI/ISA 12-12-01. CE covers RoHS and REACH by directive.

What is the listed depth and width of TM221C40R?

Depth is 2.8 in (70 mm), width is 6.3 in (160 mm). These are the panel cutout dimensions to plan for.
