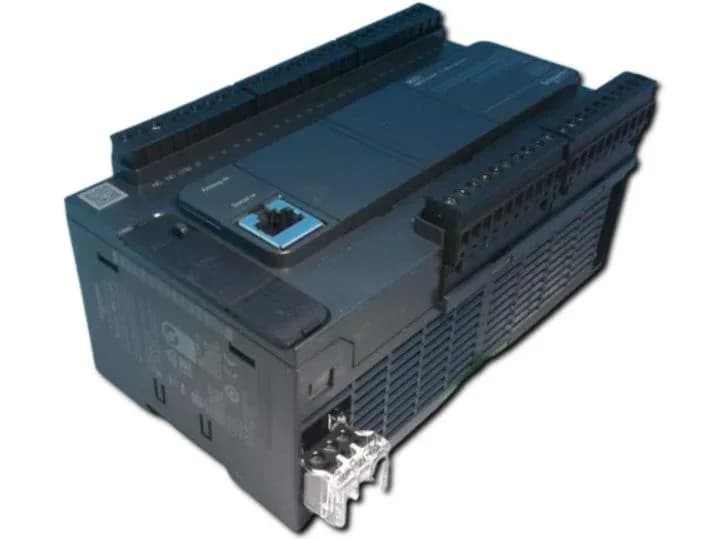

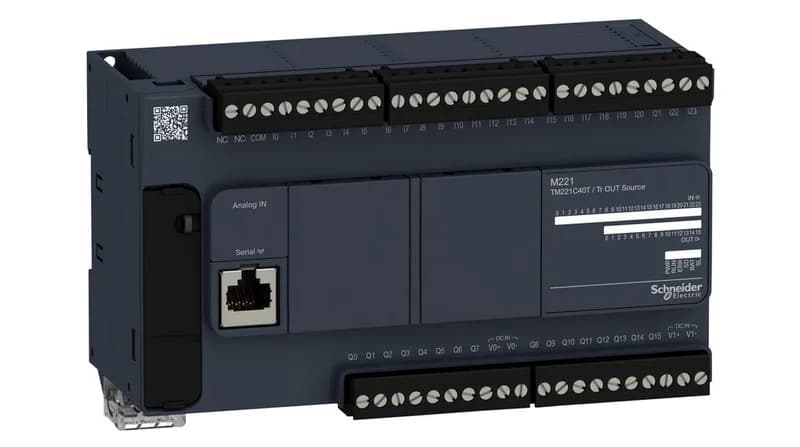

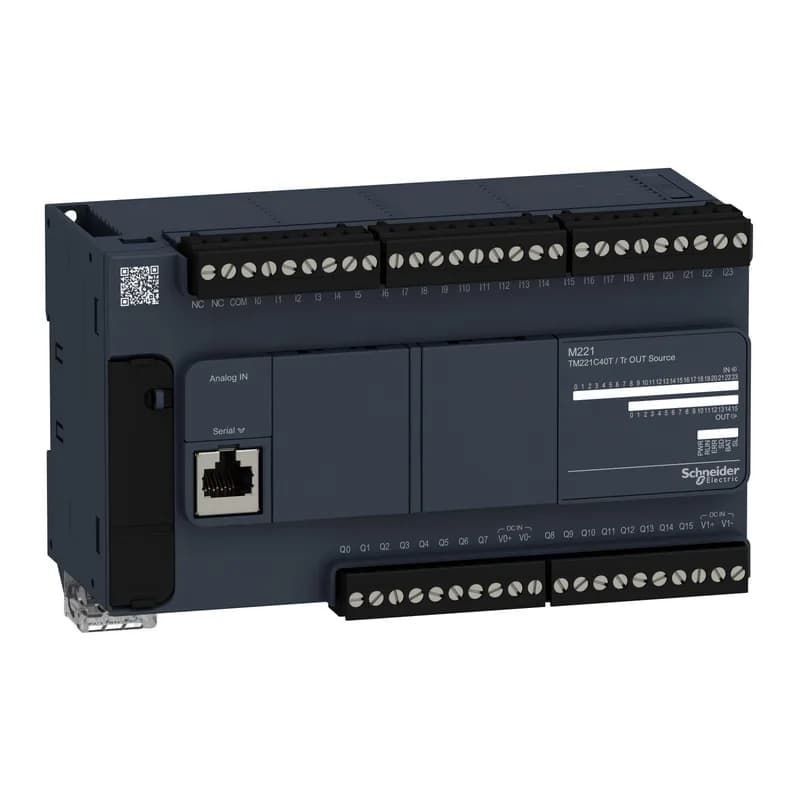

TM221C40T - Schneider Electric
MPNTM221C40T
Obsolete
LOGIC CONTROLLER, MODICON M221,
$278.13 – $559.04Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Battery type | BR2032 or CR2032X lithium non-rechargeable |
| Protection type | Overload and short-circuit protection 1 A |
| Range of product | Modicon M221 |
| Discrete output type | Transistor |
| Product or component type | Logic controller |
| Integrated connection type | USB port mini B USB 2.0 Non isolated serial link serial 1 RJ45 RS485 Non isolated serial link serial 2 RJ45 RS232/RS485 |
| Discrete input voltage type | DC |
| Surge withstand | 2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV power lines (DC) common mode IEC 61000-4-5 |
| Maximum voltage drop | <1 V |
| Supply voltage limits | 20.4...28.8 V |
| Discrete input voltage | 24 V |
| Discrete output voltage | 24 V DC |
All specifications
| Parameter | Value |
|---|---|
| Supply voltage | 24 V DC |
| Voltage state 0 guaranteed | <= 5 V input |
| Voltage state 1 guaranteed | >= 15 V input |
| Inrush current | 35 A |
| Discrete input current | 7 mA discrete input 5 mA fast input |
| Discrete output current | 0.5 A |
| Maximum leakage current | 0.1 mA transistor output |
| Power supply output current | 0.52 A 5 V expansion bus 0.3 A 24 V expansion bus |
| Maximum current per output common | 4 A |
| Maximum power consumption in | 4.1 W 24 V without I/O expansion module) 16 W 24 V with max number of I/O expansion module) |
| Output frequency (sync to mains) | 100 kHz fast output (PWM/PLS mode) Q0...Q1 5 kHz output Q2...Q3 0.1 kHz output Q4...Q15 |
| IP degree of protection | IP20 with protective cover in place |
| Communication port protocol | USB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 for connecting the 24 V DC power supply connector, 4 for analogue inputs Mini B USB 2.0 connector for a programming terminal |
| Maximum cable distance between devices | Shielded cable Unshielded cable Unshielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output |
| Response time | 35 µs turn-off, I2...I5 input 5 µs turn-on, I0, I1, I6, I7 fast input 35 µs turn-on, other terminals input 5 µs turn-off, I0, I1, I6, I7 fast input 100 µs turn-off, other terminals input 5 µs turn-on, turn-off, Q0...Q1 output 50 µs turn-on, turn-off, Q2...Q3 output 300 µs turn-on, turn-off, other terminals output |
| Pollution degree | <= 2 |
| Shock resistance | 147 m/s² 11 ms |
| Storage altitude | 0...9842.5 ft (0...3000 m) |
| Relative humidity | 10...95 %, without condensation in operation) 10...95 %, without condensation in storage) |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3.5 mm 5...8.4 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 1 gn 8.4...150 Hz symmetrical rail 1 gn 8.4...150 Hz panel mounting |
| Depth | 2.8 in (70 mm) |
| Width | 6.3 in (160 mm) |
| Height | 3.5 in (90 mm) |
| Mechanical durability | 20000000 cycles transistor output |
| Standards | IEC 61131-2 UL 508 CAN/CSA C22.2 No. 213 IACS E10 ANSI/ISA 12-12-01 |
| Supply | Serial)serial link supply 5 V, <200 mA |
| Marking | CE |
| Category | US10MSX22533 |
| LSB value | 10 mV |
| Insulation | Between input and internal logic 500 V AC Between fast input and internal logic 500 V AC Non-insulated between inputs Between output and internal logic 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs |
| Reset time | 1 s automatic reset |
| Backup time | 1 year 77 °F (25 °C) by interruption of power supply) |
| Clock drift | <= 30 s/month 77 °F (25 °C) |
| Data backed up | 256 kB built-in flash memory backup of application and data |
| Realtime clock | With |
| Conversion time | 1 ms per channel + 1 controller cycle time analog input |
| Input impedance | 3.4 kOhm discrete input 100 kOhm analog input 4.9 kOhm fast input |
| Memory capacity | 256 kB user application and data RAM 10000 instructions 256 kB internal variables RAM |
| Regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| Counter function | Pulse/direction Single phase A/B |
| Local signalling | 1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED per channel (green) for I/O state |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s USB |
| Function available | Frequency generator PWM PLS |
| Discrete i (O number) | 40 |
| Discrete input logic | Sink or source (positive/negative) |
| Analogue input number | 2 0...10 V |
| Counting input number | 4 fast input (HSC mode) 100 kHz 32 bits |
| Discrete input number | 24, discrete input 4 fast input IEC 61131-2 Type 1 |
| Discrete output logic | Positive logic (source) |
| Maximum tungsten load | <12 W output and fast output |
| Positioning functions | PTO 2 pulse/direction 100 kHz) PTO 1 CW/CCW 100 kHz) |
| Data storage equipment | 2 GB SD card optional) |
| Discrete output number | 16 transistor 2 fast output |
| Absolute accuracy error | +/- 1 % of full scale analog input |
| Immunity to microbreaks | 10 ms |
| Electromagnetic emission | Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)200...1000 MHz IEC 55011 |
| Exct time for event task | 60 µs response time |
| Analogue input resolution | 10 bits |
| Configurable filtering time | 0 ms input 3 ms input 12 ms input |
| Environmental characteristic | Ordinary and hazardous location |
| Maximum size of object areas | 255 %TM timers 512 %M memory bits 255 %C counters 512 %KW constant words 8000 %MW memory words |
| Permitted overload on inputs | +/- 30 V DC 5 min maximum)analog input +/- 13 V DC permanent)analog input |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) |
| Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Execution time per instruction | 0.2 µs Boolean |
| Execution time for 1 KInstruction | 0.3 ms event and periodic task |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation) |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2 |
