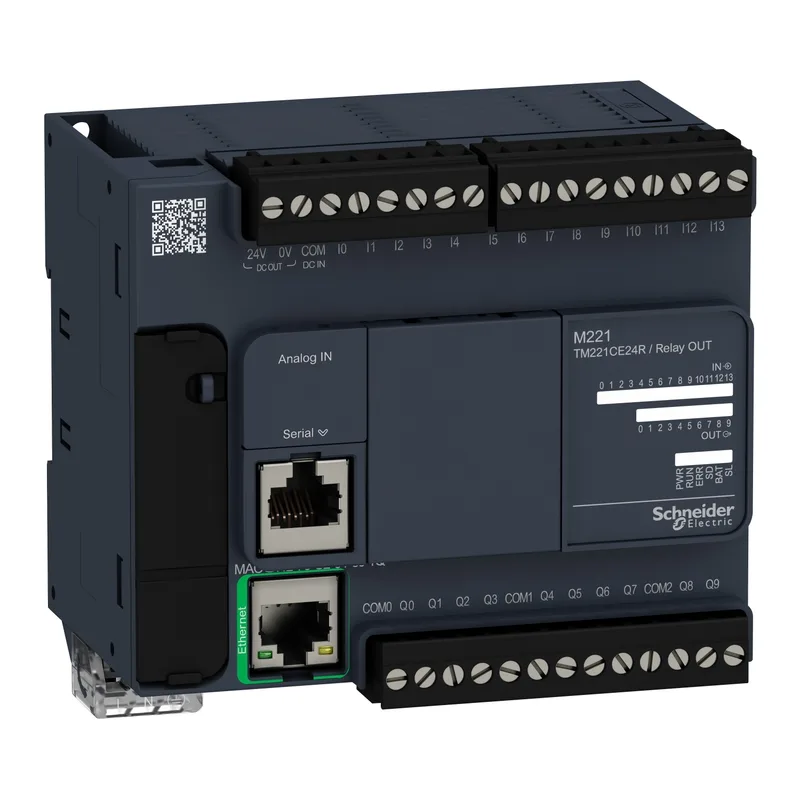

Schneider Modicon M221 logic controller, TM221PACKCE24R, 24 IO with relay outputs and Ethernet, 100-240 V AC supply, 2 analog inputs 0-10 V.
| Parameter | Value |
|---|---|
| Range of product | Modicon M221 |
| Discrete output type | Relay normally open |
| Analogue input number | 2 at 0...10 V |
| Discrete input number | 14, discrete input conforming to IEC 61131-2 Type 1 |
| Discrete output number | 10 relay |
| Discrete output current | 2 A |
| Discrete output voltage | 5...125 V DC5...250 V AC |
| Product or component type | Logic controller |
| Supply voltage | 100...240 V AC |
Modicon M221 logic controller TM221PACKCE24R with 14 discrete inputs (Type 1), 10 relay outputs, 2 analog inputs (0-10 V). Supply 100-240 V AC.
Each relay output is normally open and rated 2 A across both 5-125 V DC and 5-250 V AC. That covers small solenoids, contactor coils, and indicator lamps directly — no interposing relays needed for typical pilot-duty loads.
