Schneider TM241C40U Modicon M241 PLC, 40 I/O, transistor outputs

MPNTM241C40U
Obsolete

Schneider TM241C40U Controllers Programmable (Plc, Pac) — now discontinued, supplied from remaining surplus and broker stock.

$498.00 – $760.08Ref. price · indicative, final on quote
Schneider Electric TM241C40U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM241C40U key specifications
ParameterValue
Battery typeBR2032 lithium non-rechargeable 4 year(s)
Protection typeShort-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
Range of productModicon M241
Control signal typeA/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeNon isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0
Discrete input voltage typeDC
Surge withstand1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Maximum voltage drop<1 V
Output voltage limits30 V DC
Supply voltage limits20.4...28.8 V

All specifications

TM241C40U additional specifications
ParameterValue
Discrete input voltage24 V
Discrete output voltage24 V DC transistor output
Supply voltage24 V DC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Inrush current50 A
Discrete input current10.7 mA fast input 7 mA input
Discrete output current0.1 A fast output (PTO mode) Q0...Q3) 0.5 A transistor output Q0...Q15)
Maximum leakage current5 µA output
Maximum current per output common2 A
Power consumption in32.6...40.4 W with max number of I/O expansion module)
Maximum output frequency20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
IP degree of protectionIP20 with protective cover in place
Communication port protocolNon isolated serial link Modbus master/slave
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum cable distance between devicesUnshielded cable Shielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time50 µs turn-on, I0...I15 input 50 µs turn-off, I0...I15 input <= 250 µs turn-off, Q0...Q15 output
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth3.7 in (95 mm)
Width7.5 in (190 mm)
Height3.5 in (90 mm)
StandardsANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
SupplySerial 1)serial link supply 5 V, <200 mA
MarkingCE
Accuracy+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
CategoryUS10MSX22533
InsulationBetween supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal logic 500 V AC Non-insulated between outputs Between fast output and internal logic 500 V AC Between output groups 500 V AC
Reset time10 ms automatic reset output 12 s automatic reset fast output
Backup time2 years 77 °F (25 °C)
Clock drift<= 60 s/month 77 °F (25 °C)
Data backed up128 MB built-in flash memory backup of user programs
Realtime clockWith
Input impedance4.7 kOhm input 2.81 kOhm fast input
Memory capacity64 MB system memory RAM
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB
Discrete i (O number)40
Discrete input logicSink or source
Application structure8 event tasks 8 external event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task
Counting input number4 fast input (HSC mode) 200 kHz 16 standard input 1 kHz
Discrete input number24, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output logicNegative logic (sink)
Maximum tungsten load<2.4 W
Positioning functionsPTO 4 100 kHz) PTO 4 transistor output 1 kHz)
Data storage equipment<= 16 GB SD card optional)
Discrete output number16 transistor 4 fast output
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230...1000 MHz IEC 55011
Configurable filtering time1 s fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation14...122 °F (-10...50 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Overview

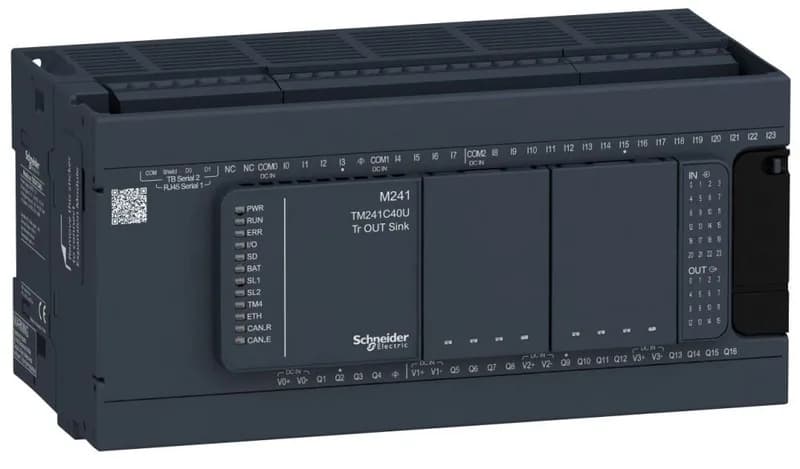

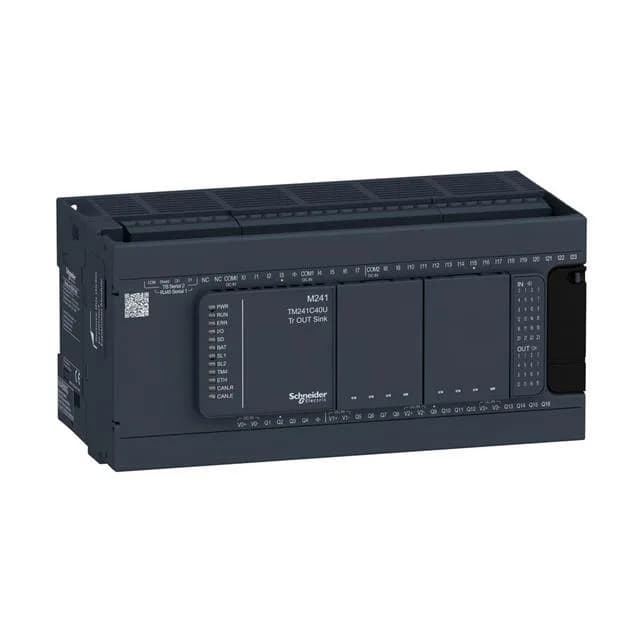

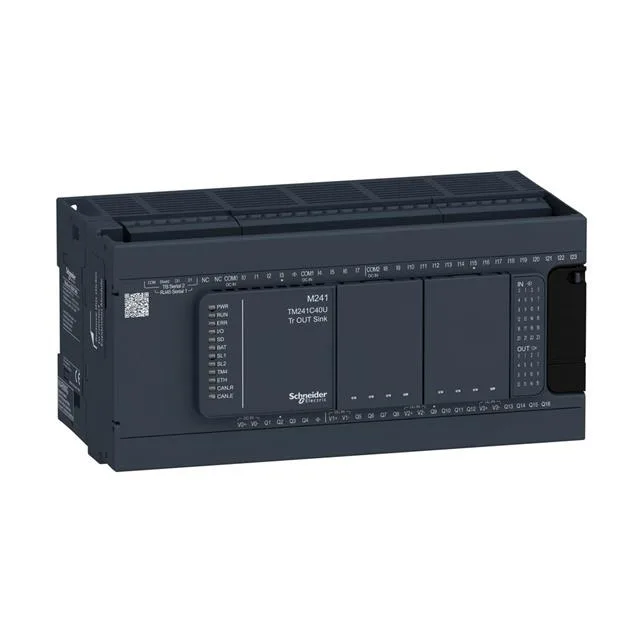

The TM241C40U is a Schneider Modicon M241 PLC with 40 discrete I/O: 24 inputs (8 of which are fast inputs configurable for HSC at 200 kHz) and 16 transistor outputs (4 fast outputs supporting PLS at 100 kHz or PWM at 20 kHz). Communication is via a non-isolated serial link supporting Modbus master/slave on RJ45, RS-232, RS-485, or USB. The real-time clock is backed by a BR2032 lithium battery with a 4-year life at 25 °C.

Compared to the TM241C24U, the TM241C40U adds 16 more I/O points (40 vs 24), including 10 additional standard inputs (16 vs 14) while keeping the same 4 fast inputs at 200 kHz. This makes the TM241C40U the right choice when the application needs more discrete sensing or control points without moving to a larger frame or adding an expansion module.
