Schneider Electric TM241CE24R

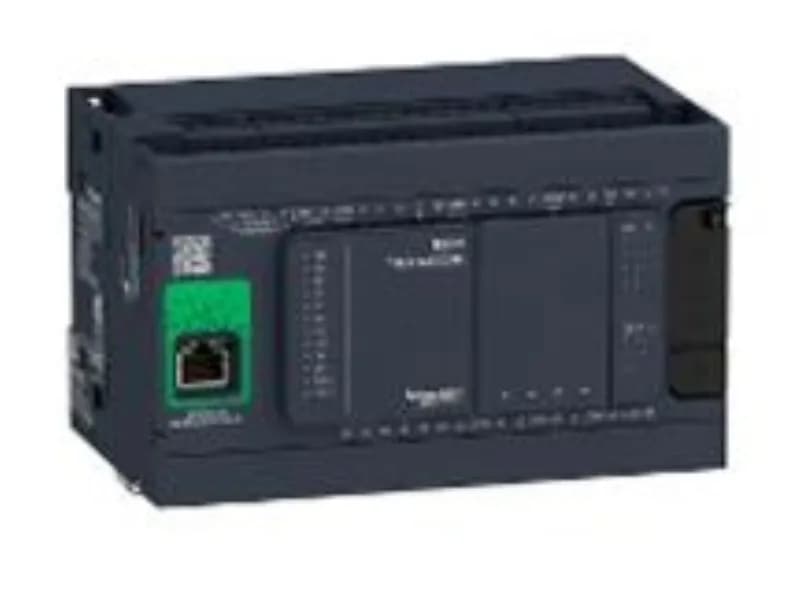

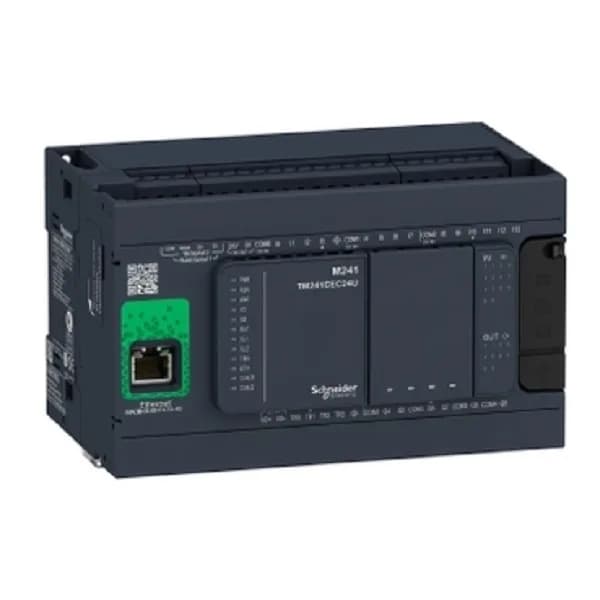

Schneider TM241CE24R Modicon M241 PLC, 24 I/O

MPNTM241CE24R
Active

Schneider Modicon M241 logic controller, TM241CE24R, 24 discrete I/O, Ethernet, 64 MB RAM, real-time clock.

$326.39 – $725.68Ref. price · indicative, final on quote
Schneider Electric TM241CE24R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM241CE24R key specifications
ParameterValue
Battery typeBR2032 lithium non-rechargeable 4 year(s)
Protection typeShort-circuit protection transistor output Short-circuit and overload protection with automatic reset transistor output Reverse polarity protection transistor output Without protection relay output
Range of productModicon M241
Control signal typeA/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Discrete output typeRelay Transistor
Product or component typeLogic controller
Integrated connection typeNon isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
Discrete input voltage typeDC
Surge withstand2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Output voltage limits125 V DC relay output 30 V DC transistor output 277 V AC relay output
Supply voltage limits85...264 V
Discrete input voltage24 V

All specifications

TM241CE24R additional specifications
ParameterValue
Discrete output voltage5...125 V DC relay output 5...250 V AC relay output 24 V DC transistor output
Supply voltage100...240 V AC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Discrete input current5 mA input
Discrete output current2 A relay output Q4...Q9) 0.1 A fast output (PTO mode) TR0...TR3) 0.5 A transistor output TR0...TR3)
Sensor power supply24 V DC 400 mA supplied by the controller
Network frequency50/60 Hz
Maximum output frequency1 kHz transistor output 20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode)
IP degree of protectionIP20 with protective cover in place
Communication port protocolNon isolated serial link Modbus master/slave
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum number of connections8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
Maximum cable distance between devicesUnshielded cable Shielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time50 µs turn-on, I0...I13 input
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth3.7 in (95 mm)
Width5.9 in (150 mm)
Height3.5 in (90 mm)
StandardsANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
SupplySerial 1)serial link supply 5 V, <200 mA
MarkingCE
Accuracy+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
CategoryUS10MSX22533
Cycle time10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
InsulationBetween supply and internal logic 500 V AC Non-insulated between supply and ground
Reset time10 ms automatic reset output 12 s automatic reset fast output
Backup time2 years 77 °F (25 °C)
Clock drift<= 60 s/month 77 °F (25 °C)
Web servicesWeb server
Port ethernet10BASE-T/100BASE-TX - 1 copper cable
Data backed up128 MB built-in flash memory backup of user programs
Realtime clockWith
Input impedance4.7 kOhm input
Memory capacity64 MB system memory RAM
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state 1 LED (green) for Ethernet port activity
Ethernet servicesFDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server Downloading SQL client Modbus TCP client I/O scanner Ethernet/IP originator I/O scanner embedded Ethernet port Ethernet/IP target, Modbus TCP server and Modbus TCP slave Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet
Discrete i (O number)24
Discrete input logicSink or source
Application structure8 external event tasks 3 cyclic master tasks + 1 freewheeling task 8 event tasks 4 cyclic master tasks
Counting input number4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
Discrete input number14, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output logicPositive logic (source)
Positioning functionsPTO 4 100 kHz)
Data storage equipment<= 16 GB SD card optional)
Discrete output number6 relay 4 transistor 4 fast output
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5...300 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011
Number of server device64 Modbus TCP 16 EtherNet/IP
Configurable filtering time1 s fast input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation14...122 °F (-10...50 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Controller fit and connectivity

The TM241CE24R: Its 150 mm width and 95 mm depth fit a standard TH35-15 DIN rail or panel-mount kit, making it a compact choice for a small machine cell or sub-panel. The controller offers both relay and transistor outputs, giving you the flexibility to switch AC loads or high-speed DC signals from the same unit. Cycle time runs at 10 ms for an EtherNet/IP network task and 64 ms for a Modbus TCP task, adequate for most discrete automation loops.

Memory, clock, and environment

Onboard 64 MB RAM and 128 MB flash backup store the application program; the real-time clock holds time drift within 60 seconds per month at 25 °C, backed by a BR2032 lithium battery lasting up to 4 years. Rated for 0 to 2000 m operating altitude, 10–95 % relative humidity, and 15 gn shock resistance, it handles typical industrial panel environments. Compliance to IEC 61131-2, UL 508, CSA C22.2, and marine standards (LR, ABS, DNV, GL) means it can be specified for both land and offshore applications.

The TM241CE24R is a current-production part. We source it through our distribution channel and can quote against an RFQ for your BOM line.

Frequently asked questions

What is TM241CE24R's listed depth and width?

The listed depth is 3.7 in (95 mm) and the width is 5.9 in (150 mm).

MPN
TM241CE24R
