Schneider Electric TM241CE24T

TM241CE24T - Schneider Modicon M241 PLC, 24 I/O

MPNTM241CE24T
Active

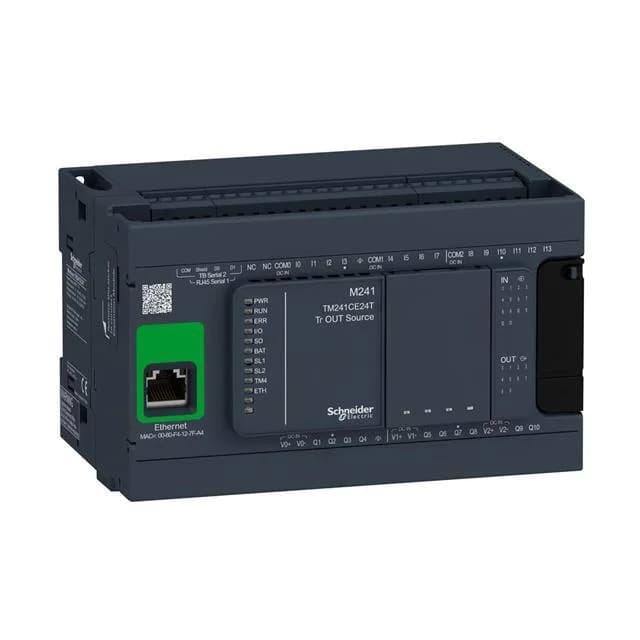

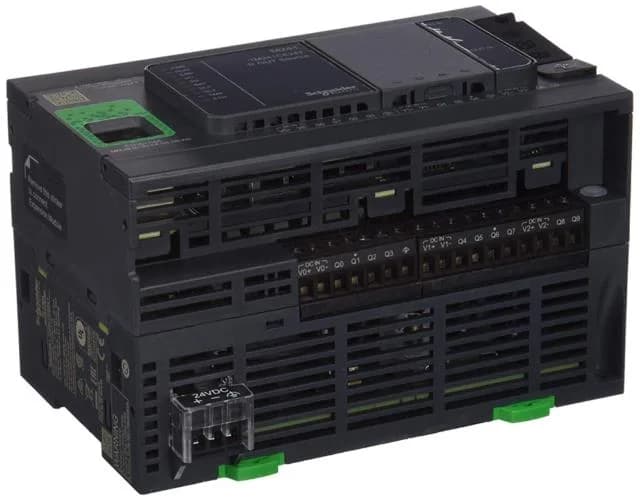

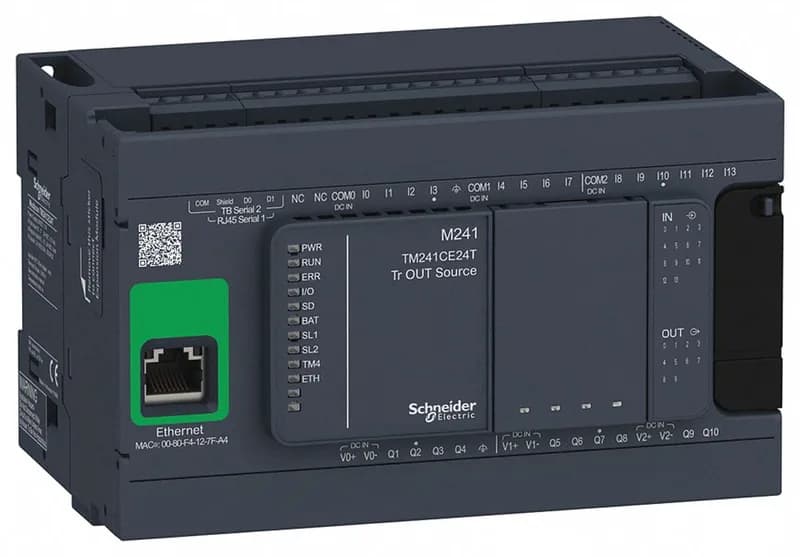

Schneider Modicon M241 PLC, TM241CE24T, 24 discrete I/O transistor outputs, Ethernet, serial, USB, CE marked.

$314.96 – $759.17Ref. price · indicative, final on quote
Schneider Electric TM241CE24T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM241CE24T key specifications
ParameterValue
Battery typeBR2032 lithium non-rechargeable 4 year(s)
Protection typeShort-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
Range of productModicon M241
Control signal typeA/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeNon isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
Discrete input voltage typeDC
Surge withstand1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Maximum voltage drop<1 V
Output voltage limits30 V DC
Supply voltage limits20.4...28.8 V

All specifications

TM241CE24T additional specifications
ParameterValue
Discrete input voltage24 V
Discrete output voltage24 V DC transistor output
Supply voltage24 V DC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Inrush current50 A
Discrete input current5 mA input 10.7 mA fast input
Discrete output current0.5 A transistor output Q0...Q9) 0.1 A fast output (PTO mode) Q0...Q3)
Maximum leakage current5 µA output
Maximum current per output common2 A Q0...Q3 fast output 2 A Q4...Q7 output 1 A Q8...Q9 output
Power consumption in32.6...40.4 W with max number of I/O expansion module)
Maximum output frequency20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
IP degree of protectionIP20 with protective cover in place
Communication port protocolNon isolated serial link Modbus master/slave
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum number of connections8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
Maximum cable distance between devicesUnshielded cable Shielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time50 µs turn-on, I0...I13 input 50 µs turn-off, I0...I13 input <= 2 µs turn-off, Q0...Q3 fast output
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth3.7 in (95 mm)
Width5.9 in (150 mm)
Height3.5 in (90 mm)
StandardsANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
SupplySerial 1)serial link supply 5 V, <200 mA
MarkingCE
Accuracy+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
CategoryUS10MSX22533
Cycle time10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
InsulationBetween supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal logic 500 V AC Non-insulated between outputs Between fast output and internal logic 500 V AC Between output groups 500 V AC
Reset time10 ms automatic reset output 12 s automatic reset fast output
Backup time2 years 77 °F (25 °C)
Clock drift<= 60 s/month 77 °F (25 °C)
Web servicesWeb server
Port ethernet10BASE-T/100BASE-TX - 1 copper cable
Data backed up128 MB built-in flash memory backup of user programs
Realtime clockWith
Input impedance4.7 kOhm input 2.81 kOhm fast input
Memory capacity64 MB system memory RAM
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state 1 LED (green) for Ethernet port activity
Ethernet servicesFDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server Downloading SQL client Modbus TCP client I/O scanner Ethernet/IP originator I/O scanner embedded Ethernet port Ethernet/IP target, Modbus TCP server and Modbus TCP slave Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet
Discrete i (O number)24
Discrete input logicSink or source
Application structure8 external event tasks 8 event tasks 3 cyclic master tasks + 1 freewheeling task 4 cyclic master tasks
Counting input number4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
Discrete input number14, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output logicPositive logic (source)
Maximum tungsten load<2.4 W
Positioning functionsPTO 4 100 kHz) PTO 4 transistor output 1 kHz)
Data storage equipment<= 16 GB SD card optional)
Discrete output number10 transistor 4 fast output
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230...1000 MHz IEC 55011
Number of server device64 Modbus TCP 16 EtherNet/IP
Configurable filtering time1 s fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation14...122 °F (-10...50 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Compact controller with 24 I/O and dual-network ports

The TM241CE24T is a Modicon M241 programmable logic controller with 24 discrete I/O — sink/source inputs and transistor outputs — built around 64 MB system RAM and 128 MB flash for program backup. Two serial ports (RS232/RS485) and a 10/100 Ethernet port handle fieldbus and HMI communication via Modbus TCP, Ethernet/IP, or OPC UA.

Isolation, surge, and compliance

Isolation is rated 500 V AC between supply and internal logic, between input and logic, and between output and logic; non-insulated between supply and ground and between outputs within the same group. Surge withstand is tested to 1 kV common mode on power lines and shielded cable per IEC 61000-4-5. The controller carries UL 508, CSA C22.2 No 142, IEC 61131-2:2007, marine classification (LR, ABS, DNV, GL), and ANSI/ISA 12-12-01 for hazardous locations. No exceptions.

Fast counting and pulse outputs

High-speed counter channels accept single-phase, A/B quadrature, or pulse/direction up to 200 kHz. Fast transistor outputs switch on in under 2 µs and handle PWM or PTO with accuracy ±0.1% in the 20–100 Hz band and ±1% up to 1 kHz. Short-circuit and reverse-polarity protection are included on the fast outputs.

Network and embedded services

The embedded Ethernet port supports Ethernet/IP originator and target, Modbus TCP server/client, OPC UA server, FTP, SNMP, DHCP, DNS, and a web server for WebVisu and XWeb system. Serial links run RS232 up to 115.2 kbit/s and RS485 up to 15 m at the same rate. USB and SD card slots allow local program transfer and logging.

Frequently asked questions

What compliance certifications does TM241CE24T carry?

It is certified to UL 508, CSA C22.2 No 142, IEC 61131-2:2007, Marine (LR, ABS, DNV, GL), and ANSI/ISA 12-12-01.
