Schneider Electric TM241CE40T

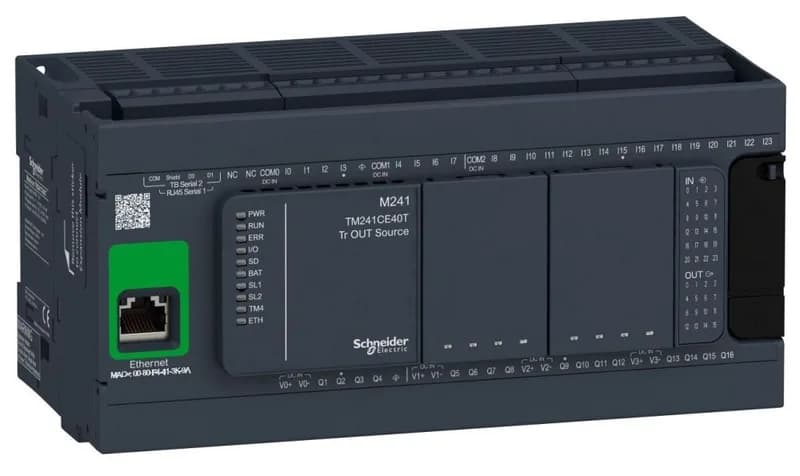

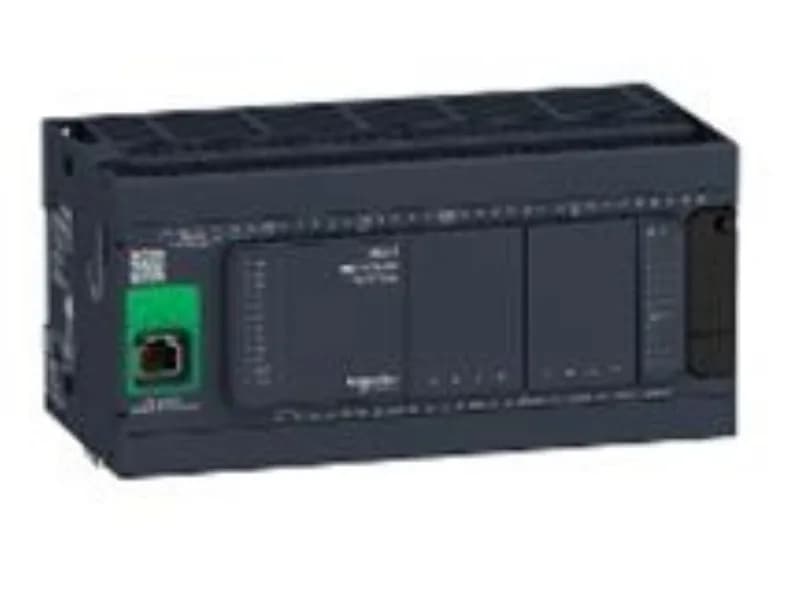

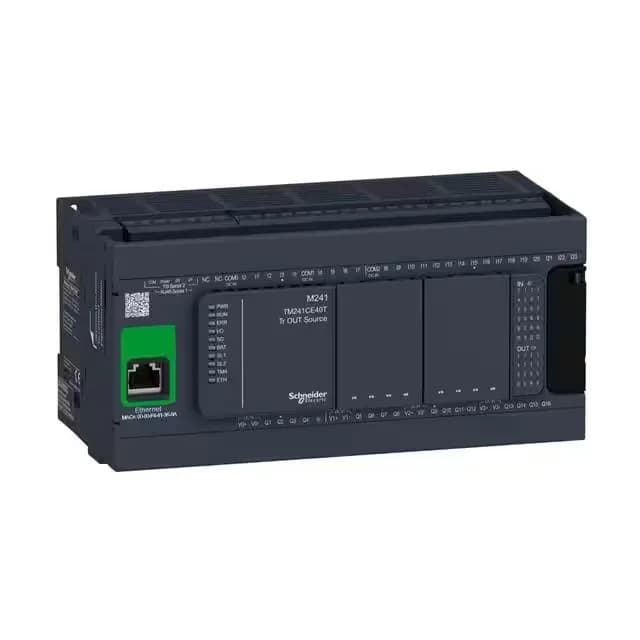

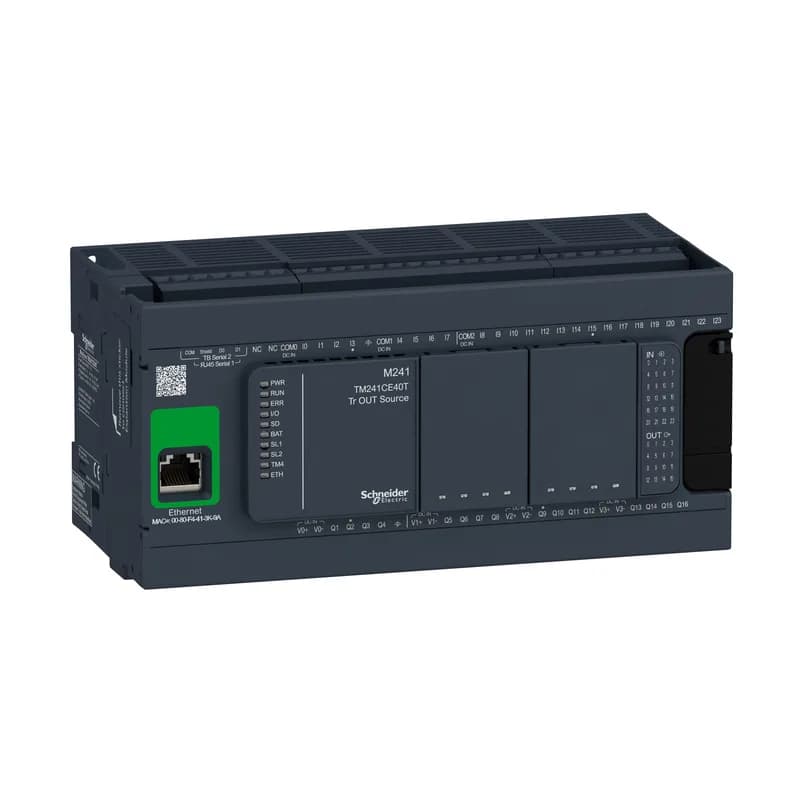

TM241CE40T Modicon M241 PLC, 40 I/O Transistor

MPNTM241CE40T
Obsolete

Schneider Electric Modicon M241 PLC, TM241CE40T, 40 discrete I/O transistor outputs, Ethernet, 3.7 in deep.

$401.32 – $833.30Ref. price · indicative, final on quote
Schneider Electric TM241CE40T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM241CE40T key specifications
ParameterValue
Battery typeBR2032 lithium non-rechargeable 4 year(s)
Protection typeShort-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
Range of productModicon M241
Control signal typeA/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeNon isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
Discrete input voltage typeDC
Surge withstand1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Maximum voltage drop<1 V
Output voltage limits30 V DC
Supply voltage limits20.4...28.8 V

All specifications

TM241CE40T additional specifications
ParameterValue
Discrete input voltage24 V
Discrete output voltage24 V DC transistor output
Supply voltage24 V DC
Voltage state 0 guaranteed<= 5 V input
Voltage state 1 guaranteed>= 15 V input
Inrush current50 A
Discrete input current10.7 mA fast input 7 mA input
Discrete output current0.1 A fast output (PTO mode) Q0...Q3) 0.5 A transistor output Q0...Q15)
Maximum leakage current5 µA output
Maximum current per output common2 A
Power consumption in32.6...40.4 W with max number of I/O expansion module)
Maximum output frequency20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
IP degree of protectionIP20 with protective cover in place
Communication port protocolNon isolated serial link Modbus master/slave
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum number of connections8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
Maximum cable distance between devicesUnshielded cable Shielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time50 µs turn-on, I0...I15 input 50 µs turn-off, I0...I15 input <= 250 µs turn-off, Q0...Q15 output
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth3.7 in (95 mm)
Width7.5 in (190 mm)
Height3.5 in (90 mm)
StandardsANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
SupplySerial 1)serial link supply 5 V, <200 mA
MarkingCE
Accuracy+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
CategoryUS10MSX22533
Cycle time10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
InsulationBetween supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal logic 500 V AC Non-insulated between outputs Between fast output and internal logic 500 V AC Between output groups 500 V AC
Reset time10 ms automatic reset output 12 s automatic reset fast output
Backup time2 years 77 °F (25 °C)
Clock drift<= 60 s/month 77 °F (25 °C)
Web servicesWeb server
Port ethernet10BASE-T/100BASE-TX - 1 copper cable
Data backed up128 MB built-in flash memory backup of user programs
Realtime clockWith
Input impedance4.7 kOhm input 2.81 kOhm fast input
Memory capacity64 MB system memory RAM
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state 1 LED (green) for Ethernet port activity
Ethernet servicesFDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server Downloading SQL client Modbus TCP client I/O scanner Ethernet/IP originator I/O scanner embedded Ethernet port Ethernet/IP target, Modbus TCP server and Modbus TCP slave Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet
Discrete i (O number)40
Discrete input logicSink or source
Application structure3 cyclic master tasks + 1 freewheeling task 8 external event tasks 4 cyclic master tasks 8 event tasks
Counting input number4 fast input (HSC mode) 200 kHz 16 standard input 1 kHz
Discrete input number24, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output logicPositive logic (source)
Maximum tungsten load<2.4 W
Positioning functionsPTO 4 100 kHz) PTO 4 transistor output 1 kHz)
Data storage equipment<= 16 GB SD card optional)
Discrete output number16 transistor 4 fast output
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230...1000 MHz IEC 55011
Number of server device64 Modbus TCP 16 EtherNet/IP
Configurable filtering time1 s fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation14...122 °F (-10...50 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

TM241CE40T, a 40-point transistor-output PLC from Modicon M241, mounts on a top hat rail (IEC 60715) with 190 mm width. RTC retains time for two years at 25 °C via BR2032 lithium cell. On the Ethernet side, there's a single 10/100 port handling EtherNet/IP originator and target, Modbus TCP client and server, OPC UA server, and web server (WebVisu). Cycle time runs 10 ms per 16 EtherNet/IP nodes; for Modbus TCP it stretches to 64 ms for 64 connections. The fast inputs accept single-phase or pulse/direction up to 200 kHz, plus A/B quadrature at 100 kHz. Turn-on and turn-off settle in 50 µs on the first 16 inputs. Transistor outputs switch in under 250 µs off-time. Power draw: the serial link supplies 5 V at under 200 mA. Inrush hits 50 A. Insulation between supply and logic at 500 V AC.

Compliance documentation covers ANSI/ISA 12-12-01, CSA C22.2 No. 142 and No. 213, IEC 61131-2:2007, and UL 508. Marine approvals include Lloyd's Register, ABS, DNV, and GL. The CE marking is on the nameplate.

Ambient operating range: 10–95 % RH non-condensing, altitude up to 2000 m operating, 3000 m storage. Shock rated at 15 gn for 11 ms.
