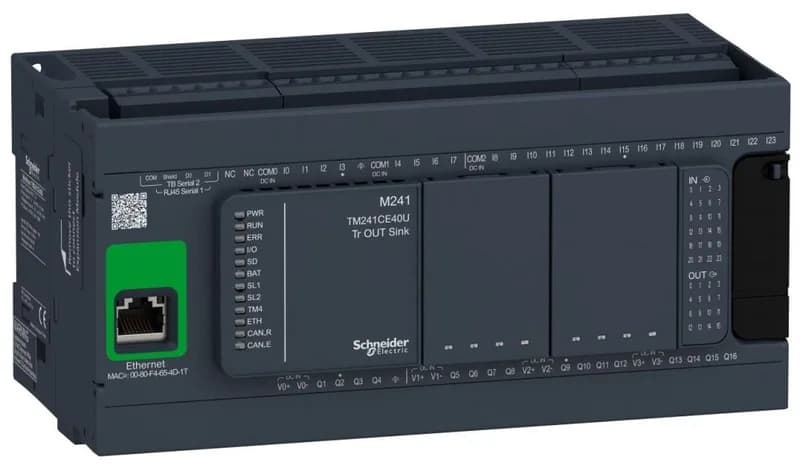

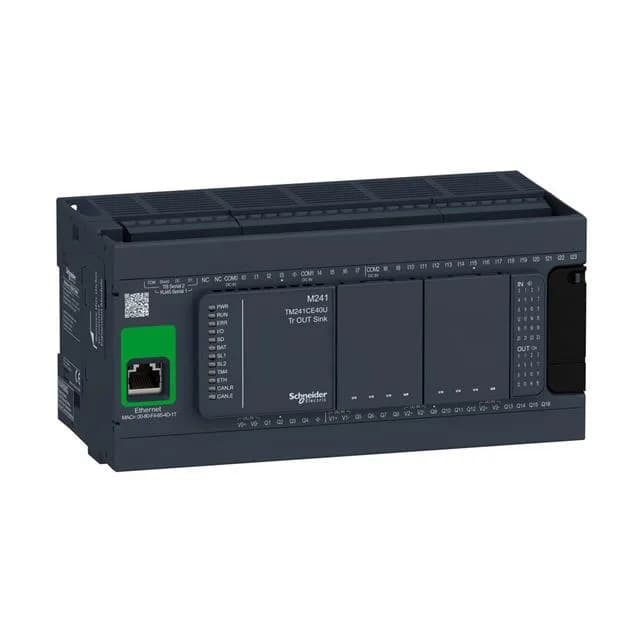

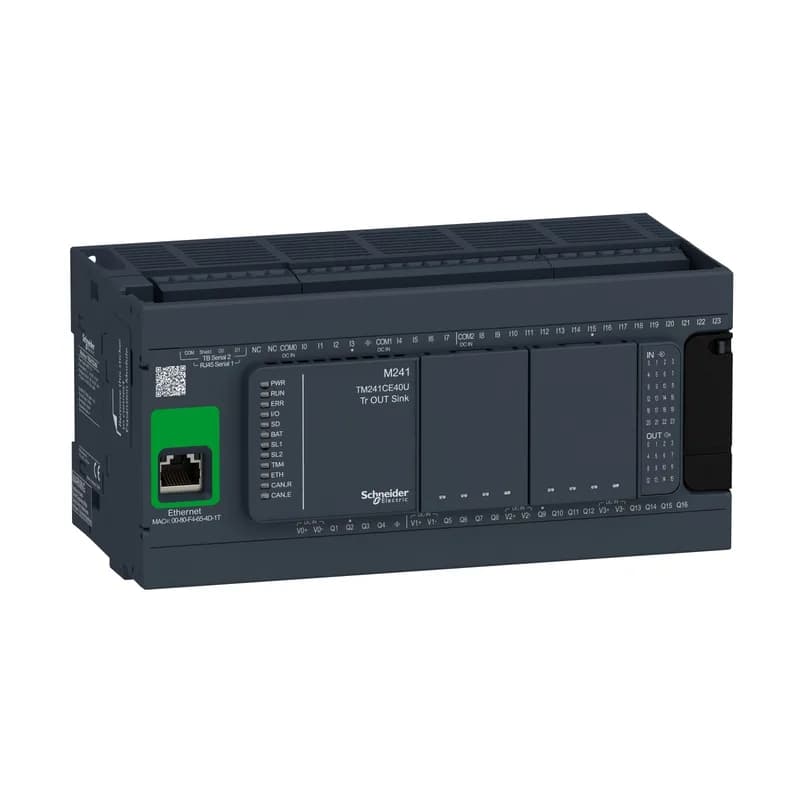

Schneider TM241CE40U Modicon M241 Controller, 40 I/O, Transi

Name: TM241CE40U
Brand: Schneider Electric
SKU: TM241CE40U
Availability: LimitedAvailability
Author: Gray-Market Gita

MPNTM241CE40U

Active

Schneider Electric Modicon M241 logic controller, 40 discrete I/O, transistor outputs, Ethernet/IP + Modbus TCP, 100 kHz fast inputs, UL/CSA/IEC/marine rated.

$417.83 – $818.66Ref. price · indicative, final on quote

Request quote

Schneider Electric TM241CE40U datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM241CE40U key specifications
Parameter	Value
Battery type	BR2032 lithium non-rechargeable 4 year(s)
Protection type	Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
Range of product	Modicon M241
Control signal type	A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Discrete output type	Transistor
Product or component type	Logic controller
Integrated connection type	Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45
Discrete input voltage type	DC
Surge withstand	1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Maximum voltage drop	<1 V
Output voltage limits	30 V DC
Supply voltage limits	20.4...28.8 V

All specifications

TM241CE40U additional specifications
Parameter	Value
Discrete input voltage	24 V
Discrete output voltage	24 V DC transistor output
Supply voltage	24 V DC
Voltage state 0 guaranteed	<= 5 V input
Voltage state 1 guaranteed	>= 15 V input
Inrush current	50 A
Discrete input current	10.7 mA fast input 7 mA input
Discrete output current	0.1 A fast output (PTO mode) Q0...Q3) 0.5 A transistor output Q0...Q15)
Maximum leakage current	5 µA output
Maximum current per output common	2 A
Power consumption in	32.6...40.4 W with max number of I/O expansion module)
Maximum output frequency	20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
IP degree of protection	IP20 with protective cover in place
Communication port protocol	Non isolated serial link Modbus master/slave
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection	removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum number of connections	8 Modbus server 8 SoMachine protocol 10 web server 4 FTP server 16 Ethernet/IP target 8 Modbus client
Maximum cable distance between devices	Unshielded cable Shielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time	50 µs turn-on, I0...I15 input 50 µs turn-off, I0...I15 input <= 250 µs turn-off, Q0...Q15 output
Pollution degree	2
Shock resistance	15 gn 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth	3.7 in (95 mm)
Width	7.5 in (190 mm)
Height	3.5 in (90 mm)
Standards	ANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
Supply	Serial 1)serial link supply 5 V, <200 mA
Marking	CE
Accuracy	+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
Category	US10MSX22533
Cycle time	10 ms 16 EtherNet/IP 64 ms 64 Modbus TCP
Insulation	Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal logic 500 V AC Non-insulated between outputs Between fast output and internal logic 500 V AC Between output groups 500 V AC
Reset time	10 ms automatic reset output 12 s automatic reset fast output
Backup time	2 years 77 °F (25 °C)
Clock drift	<= 60 s/month 77 °F (25 °C)
Web services	Web server
Port ethernet	10BASE-T/100BASE-TX - 1 copper cable
Data backed up	128 MB built-in flash memory backup of user programs
Realtime clock	With
Input impedance	4.7 kOhm input 2.81 kOhm fast input
Memory capacity	64 MB system memory RAM
Local signalling	1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state 1 LED (green) for Ethernet port activity
Ethernet services	FDR DHCP server via TM4 Ethernet switch network module DHCP client embedded Ethernet port SMS notifications Updating firmware SNMP client/server Programming NGVL Monitoring IEC VAR ACCESS FTP client/server Downloading SQL client Modbus TCP client I/O scanner Ethernet/IP originator I/O scanner embedded Ethernet port Ethernet/IP target, Modbus TCP server and Modbus TCP slave Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client
Transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet
Discrete i (O number)	40
Discrete input logic	Sink or source
Application structure	8 external event tasks 3 cyclic master tasks + 1 freewheeling task 4 cyclic master tasks 8 event tasks
Counting input number	4 fast input (HSC mode) 200 kHz 16 standard input 1 kHz
Discrete input number	24, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output logic	Negative logic (sink)
Maximum tungsten load	<2.4 W
Positioning functions	PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
Data storage equipment	<= 16 GB SD card optional)
Discrete output number	16 transistor 4 fast output
Immunity to microbreaks	10 ms
Electromagnetic emission	Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230...1000 MHz IEC 55011
Number of server device	64 Modbus TCP 16 EtherNet/IP
Configurable filtering time	1 s fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction	0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation	14...122 °F (-10...50 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Controller overview

The TM241CE40U is a Modicon M241 logic controller with 40 discrete I/O — 24 inputs (sink or source, 4.7 kΩ impedance, fast inputs at 2.81 kΩ) and 16 transistor outputs with a maximum voltage drop under 1 V. Rated for the 24 VDC supply at 50 A inrush, with short-circuit and overload protection that auto-resets on the fast outputs. The controller mounts on a standard TH35-7.5 or TH35-15 DIN rail, or on a plate with the fixing kit. Dimensions are 190 mm wide × 90 mm tall × 95 mm deep — typical for this class of packaged PLC.

Network and I/O timing

The embedded Ethernet port runs 10BASE-T/100BASE-TX with a full protocol stack: EtherNet/IP originator and target, Modbus TCP server/client, OPC UA server, web server (WebVisu and XWeb system), and FTP client/server. A second serial port supports RS-232/RS-485 at 1.2–115.2 kbit/s. Cycle time on the Modbus TCP bus is 64 ms for 64 exchanges. Fast inputs accept single-phase and pulse/direction signals up to 200 kHz, or A/B quadrature up to 100 kHz. Input response is 50 µs on/off; transistor outputs turn off in ≤250 µs. The system memory is 64 MB RAM with 128 MB flash for program backup; the real-time clock has ≤60 s/month drift at 25 °C and is backed by a BR2032 lithium battery (4-year life).

The TM241CE40U carries UL 508, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2:2007, and marine certifications (LR, ABS, DNV, GL). It is also listed under ANSI/ISA 12-12-01 for Class I Division 2 hazardous locations.

Frequently asked questions

What compliance documentation does this part carry?

It is certified to UL 508, CSA C22.2 No 142/213, IEC 61131-2:2007, ANSI/ISA 12-12-01 (Class I Div 2), and marine society standards LR, ABS, DNV, and GL.
