Schneider Electric TM241CEC24U Modicon M241, 24 I/O PLC

Name: TM241CEC24U
Brand: Schneider Electric
SKU: TM241CEC24U
Availability: LimitedAvailability
Author: Retrofit Raj

MPNTM241CEC24U

Active

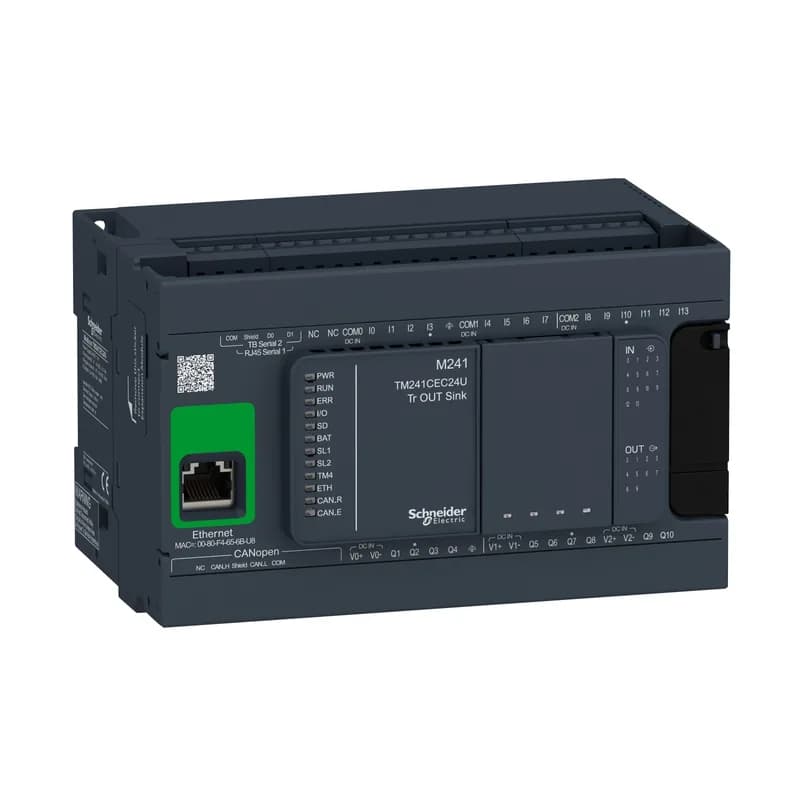

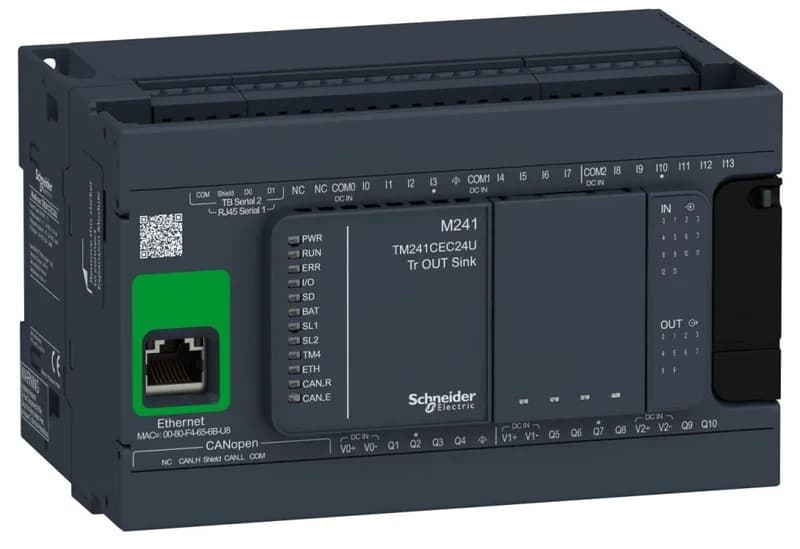

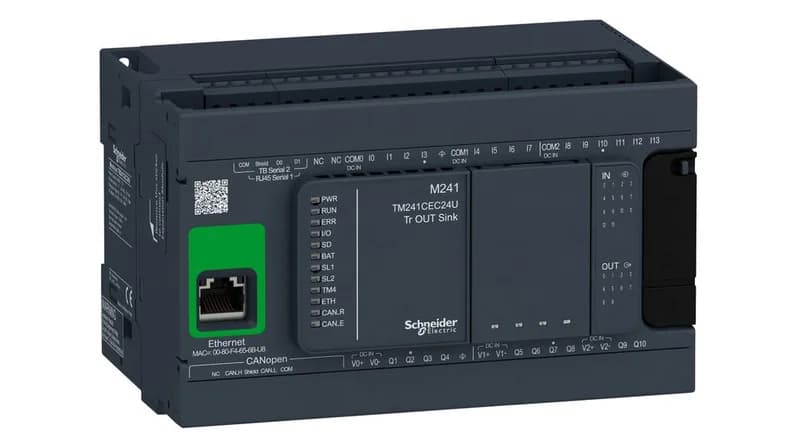

Schneider Electric TM241CEC24U Modicon M241 controller, 24 discrete I/O, transistor outputs, Ethernet, fast HSC inputs (200 kHz single-phase).

$375.92 – $760.08Ref. price · indicative, final on quote

Request quote

Schneider Electric TM241CEC24U datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM241CEC24U key specifications
Parameter	Value
Battery type	BR2032 lithium non-rechargeable 4 year(s)
Protection type	Short-circuit protection Short-circuit and overload protection with automatic reset Reverse polarity protection fast output
Range of product	Modicon M241
Control signal type	A/B 100 kHz fast input (HSC mode) Pulse/direction 200 kHz fast input (HSC mode) Single phase 200 kHz fast input (HSC mode)
Discrete output type	Transistor
Product or component type	Logic controller
Integrated connection type	Non isolated serial link serial 1 RJ45 RS232/RS485 Non isolated serial link serial 2 removable screw terminal block RS485 USB port mini B USB 2.0 Ethernet RJ45 CANopen J1939 male SUB-D 9
Discrete input voltage type	DC
Surge withstand	1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Maximum voltage drop	<1 V
Output voltage limits	30 V DC
Supply voltage limits	20.4...28.8 V

All specifications

TM241CEC24U additional specifications
Parameter	Value
Discrete input voltage	24 V
Discrete output voltage	24 V DC transistor output
Supply voltage	24 V DC
Voltage state 0 guaranteed	<= 5 V input
Voltage state 1 guaranteed	>= 15 V input
Inrush current	50 A
Discrete input current	5 mA input 10.7 mA fast input
Discrete output current	0.5 A transistor output Q0...Q9) 0.1 A fast output (PTO mode) Q0...Q3)
Maximum leakage current	5 µA output
Maximum current per output common	2 A Q0...Q3 fast output 2 A Q4...Q7 output 1 A Q8...Q9 output
Power consumption in	32.6...40.4 W with max number of I/O expansion module)
Maximum output frequency	20 kHz fast output (PWM mode) 100 kHz fast output (PLS mode) 1 kHz output
IP degree of protection	IP20 with protective cover in place
CANopen feature profile	DR 303-1 DS 301 V4.02
Communication port protocol	Non isolated serial link Modbus master/slave
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection	removable screw terminal block for inputs and outputs pitch 5.08 mm) removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum number of connections	16 Ethernet/IP device 8 Modbus server
Maximum cable distance between devices	Unshielded cable Shielded cable Unshielded cable Shielded cable <9.8 ft (3 m) fast output
Response time	50 µs turn-on, I0...I13 input 50 µs turn-off, I0...I13 input <= 2 µs turn-off, Q0...Q3 fast output
Pollution degree	2
Shock resistance	15 gn 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth	3.7 in (95 mm)
Width	5.9 in (150 mm)
Height	3.5 in (90 mm)
Standards	ANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
Supply	Serial 1)serial link supply 5 V, <200 mA
Marking	CE
Accuracy	+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
Category	US10MSX22533
Insulation	Between supply and internal logic 500 V AC Non-insulated between supply and ground Between input and internal logic 500 V AC Non-insulated between inputs Between fast input and internal logic 500 V AC Between output and internal logic 500 V AC Non-insulated between outputs Between fast output and internal logic 500 V AC
Reset time	10 ms automatic reset output 12 s automatic reset fast output
Backup time	2 years 77 °F (25 °C)
Clock drift	<= 60 s/month 77 °F (25 °C)
Web services	Web server
Port ethernet	10BASE-T/100BASE-TX - 1 copper cable
Data backed up	128 MB built-in flash memory backup of user programs
Realtime clock	With
Input impedance	4.7 kOhm input 2.81 kOhm fast input
Memory capacity	64 MB system memory RAM
Local signalling	1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for SL1 1 LED (green) for SL2 1 LED (red) for bus fault on TM4 (TM4) 1 LED per channel (green) for I/O state 1 LED (green) for Ethernet port activity 1 LED (green) for CANopen run 1 LED (green) for CANopen error
Ethernet services	SNMP client/server Modbus TCP slave device Modbus TCP server Modbus TCP client IEC VAR ACCESS FTP client/server SQL client DHCP client Ethernet/IP adapter Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client
Transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet 1000 kbit/s 65.6 ft (20 m) CANopen 800 kbit/s 131.2 ft (40 m) CANopen 500 kbit/s 328.08 ft (100 m) CANopen 250 kbit/s 820.2 ft (250 m) CANopen 125 kbit/s 1640.4 ft (500 m) CANopen 50 kbit/s 3280.8 ft (1000 m) CANopen 20 kbit/s 8202.10 ft (2500 m) CANopen
Discrete i (O number)	24
Discrete input logic	Sink or source
Application structure	8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks
Counting input number	4 fast input (HSC mode) 200 kHz 14 standard input 1 kHz
Discrete input number	14, discrete input 8 fast input IEC 61131-2 Type 1
Discrete output logic	Negative logic (sink)
Maximum tungsten load	<2.4 W
Positioning functions	PTO 4 100 kHz) PTO 4 transistor output 1 kHz)
Data storage equipment	<= 16 GB SD card optional)
Discrete output number	10 transistor 4 fast output
Immunity to microbreaks	10 ms
Electromagnetic emission	Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230...1000 MHz IEC 55011
Number of server device	63 CANopen
Configurable filtering time	1 s fast input 12 ms fast input 0 ms input 1 ms input 4 ms input 12 ms input
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction	0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation	14...122 °F (-10...50 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge	8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

The TM241CEC24U is a Modicon M241 compact PLC with 24 discrete I/O points—14 sink/source inputs and 10 transistor sourcing outputs. That puts it in the sweet spot for a standalone machine or a sub-cell within a multi-controller line. The Ethernet port handles Modbus TCP, OPC UA server, and Ethernet/IP adapter right out of the box, so you can talk to a modern SCADA or a legacy remote rack without a protocol gateway. For motion-ish applications, the fast inputs accept single-phase HSC at 200 kHz or A/B quadrature at 100 kHz, and the four fast transistor outputs switch off in under 2 µs. That covers basic encoder counting and high-speed positioning without an add-on module.

This controller snaps onto a 35 mm DIN rail (TH35-15 or TH35-7.5 per IEC 60715) or screws to a plate with the fixing kit. Its footprint is 150 × 95 × 90 mm (width × depth × height).

CE marked, UL 508 listed, CSA C22.2 No 142 and No 213, and meets IEC 61131-2:2007. Also carries marine type approvals (LR, ABS, DNV, GL), so it qualifies for shipboard panels without additional qualification testing. Pollution degree 2 and Category US10MSX22533 (hazardous locations per ANSI/ISA 12-12-01).
