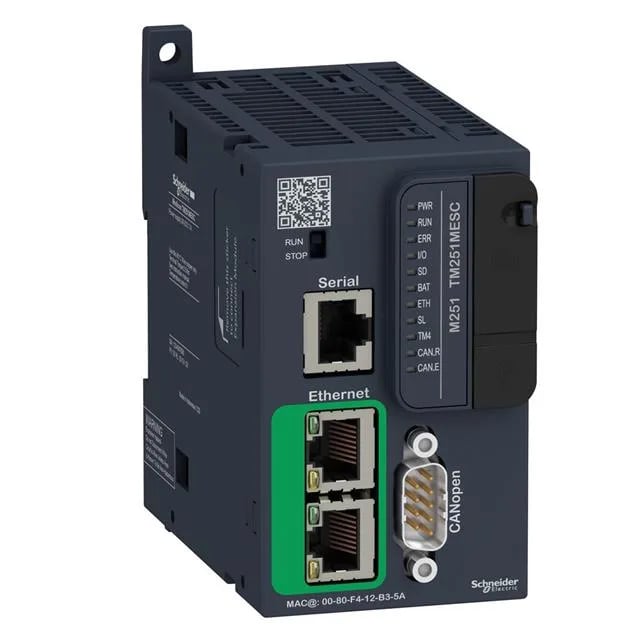

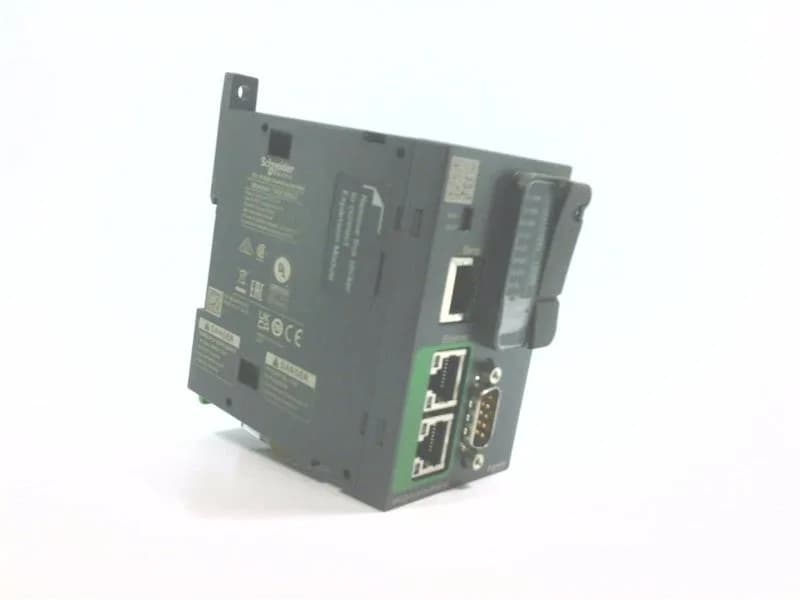

Schneider Electric TM251MESC

Schneider TM251MESC Modicon M251 PLC, 64 MB RAM, dual Ethernet

MPNTM251MESC
Active

Schneider TM251MESC Controllers Programmable (Plc, Pac) — now discontinued, supplied from remaining surplus and broker stock.

$308.81 – $760.08Ref. price · indicative, final on quote
Schneider Electric TM251MESC datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM251MESC key specifications
ParameterValue
Battery typeBR2032 lithium non-rechargeable 4 year(s)
Range of productModicon M251
Product or component typeLogic controller
Integrated connection typeUSB port mini B USB 2.0 Non isolated serial link serial RJ45 RS232/RS485 Dual-port Ethernet RJ45 CANopen J1939 SUB-D 9
Surge withstand1 kV shielded cable common mode IEC 61000-4-5 1 kV power lines common mode IEC 61000-4-5 0.5 kV power lines differential mode IEC 61000-4-5
Supply voltage limits20.4...28.8 V
Supply voltage24 V DC
Inrush current50 A
Power consumption in32.6...40.4 W with max number of I/O expansion module)
IP degree of protectionIP20 with protective cover in place
Communication serviceDHCP client Downloading Ethernet/IP slave device IEC VAR ACCESS Modbus TCP client Modbus TCP server Modbus TCP slave device Monitoring NGVL Programming Updating firmware SMS notifications FTP client/server SNMP client/server SQL client Send and receive email from the controller based on TCP/UDP library Web server (WebVisu & XWeb system) OPC UA server DNS client
CANopen feature profileDR 303-1 DS 301 V4.02

All specifications

TM251MESC additional specifications
ParameterValue
Communication port protocolUSB port USB - SoMachine-Network Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable screw terminal block power supply pitch 5.08 mm)
Maximum number of connections8 Modbus server 8 Modbus client 16 Ethernet/IP target 4 FTP server 10 web server 8 SoMachine protocol
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz symmetrical rail 3 gn 8.4...150 Hz symmetrical rail 3.5 mm 5...8.4 Hz panel mounting 3 gn 8.4...150 Hz panel mounting
Depth3.7 in (95 mm)
Width2.1 in (54 mm)
Height3.5 in (90 mm)
StandardsANSI/ISA 12-12-01 CSA C22.2 No 142 CSA C22.2 No 213 IEC 61131-2:2007 Marine specification (LR, ABS, DNV, GL) UL 508
SupplySerial)serial link supply 5 V, <200 mA
MarkingCE
CategoryUS10MSX22533
InsulationNon-insulated between supply and internal logic Between supply and ground 500 V AC
Backup time2 years 77 °F (25 °C)
Clock drift<= 60 s/month 77 °F (25 °C)
Web servicesWeb server
Port ethernetEthernet 10BASE-T/100BASE-TX - 2 copper cable
Data backed up128 MB built-in flash memory backup of user programs
Realtime clockWith
Memory capacity64 MB system memory RAM
Local signalling1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (red) for I/O error (I/O) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED (green) for Ethernet port activity 1 LED (green) for SL 1 LED (red) for bus fault on TM4 (TM4) 1 LED (green) for CANopen run 1 LED (green) for CANopen error
Transmission rate1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB
Application structure3 cyclic master tasks + 1 freewheeling task 8 event tasks 4 cyclic master tasks 8 external event tasks
Data storage equipment<= 16 GB SD card optional)
Immunity to microbreaks10 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011
Number of server device63 CANopen
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Execution time for 1 KInstruction0.3 ms event and periodic task 0.7 ms other instruction
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2

Product details

Overview

The TM251MESC is a Schneider Modicon M251 logic controller with 64 MB system RAM and 8 MB program memory, running on 24 V DC supply. It carries dual Ethernet ports (10BASE-T/100BASE-TX), USB, RS-232, RS-485, Modbus, and CANopen, and is rated for 15 gn 11 ms shock. The serial link supply is 5 V at less than 200 mA, sourced externally via the removable screw terminal block (5.08 mm pitch). No on-board I/O — this is a pure logic controller for distributed I/O over fieldbus.

Compared to the TM241CE40T, the TM251MESC has 64 MB system RAM versus 8 MB, but no on-board discrete I/O — the TM241CE40T carries 40 I/O points including 4 fast inputs at 200 kHz. The TM251MESC is the right choice when you need large program memory and fieldbus networking, not local I/O density.
