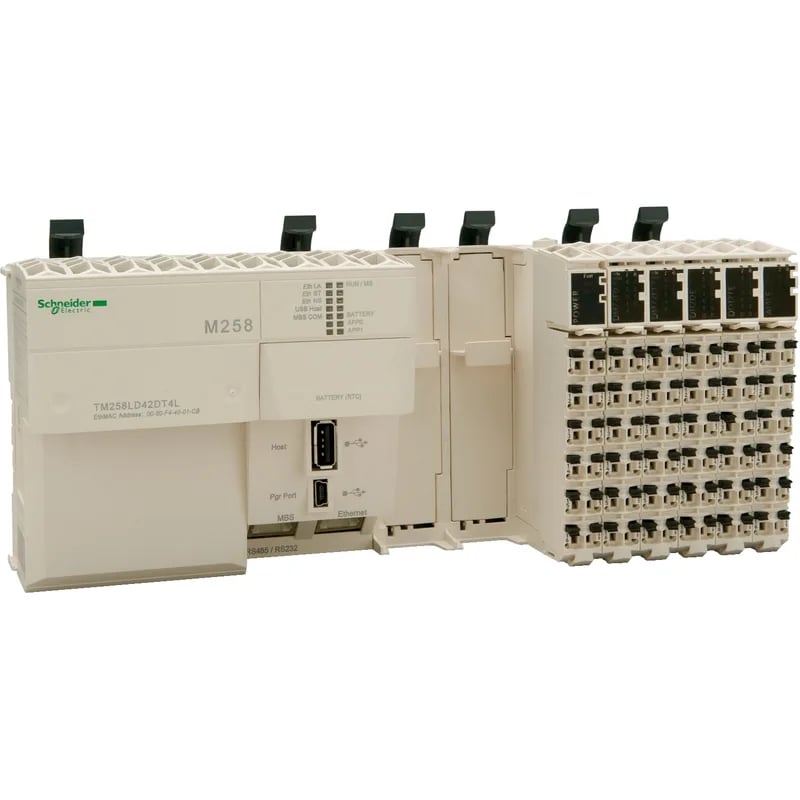

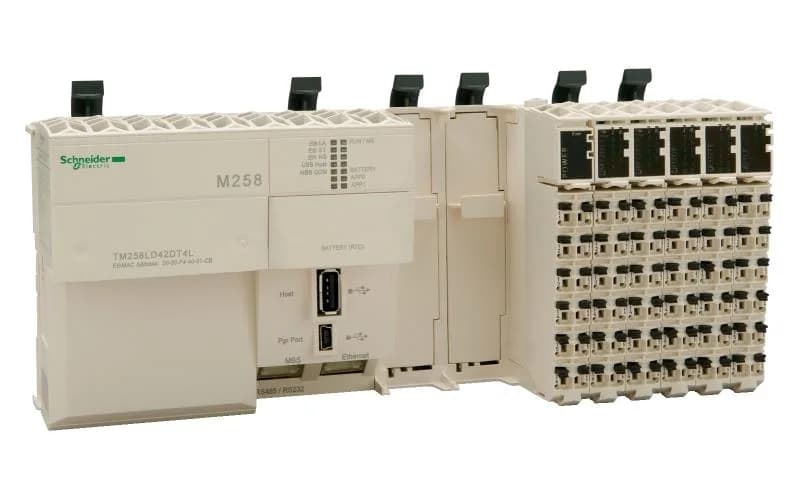

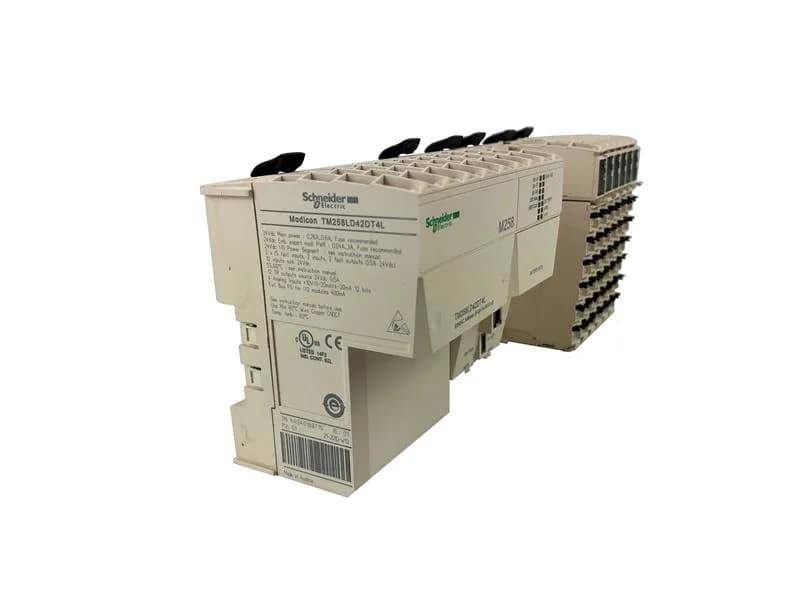

Schneider Electric TM258LD42DT4L

Modicon M258 TM258LD42DT4L, 42 I/O, 24 V DC

MPNTM258LD42DT4L
Obsolete

Modicon M258 controller, TM258LD42DT4L, 42 discrete I/O (24 V DC), 4 analog inputs, Ethernet, CAN, DIN-rail mount, current production.

$948.69 – $1,765.00Ref. price · indicative, final on quote
Schneider Electric TM258LD42DT4L datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM258LD42DT4L key specifications
ParameterValue
Range of productModicon M258
Analogue input typeCurrent 0...20 mA Current 4...20 mA Voltage +/- 10 V
Product or component typeLogic controller
Integrated connection type1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX 1 isolated serial link mini B USB 480 Mbit/s 1 isolated serial link USB type A 480 Mbit/s 2 free slots PCI
Discrete input voltage typeDC
Surge withstand0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5
Output voltage limits19.2...28.8 V
Supply voltage limits20.4...28.8 V
Discrete input voltage24 V
Discrete output voltage24 V DC
Supply voltage24 V DC embedded expert modules power 24 V DC I/O power segment 24 V DC main supply
Voltage state 0 guaranteed<= 5 V regular input

All specifications

TM258LD42DT4L additional specifications
ParameterValue
Voltage state 1 guaranteed>= 15 V fast input >= 15 V fast output >= 15 V regular input
Peak current100 kA 25 kA 50 kA 1.2 A > 70 s)main supply
Line rated current0.04 A embedded expert modules power 10 A I/O power segment 0.31 A main supply
Discrete input current4 mA fast input 4 mA regular input
Discrete output current4 mA fast output
Power consumption in14.14 W
IP degree of protectionIP20IEC 61131-2
Mounting supportSymmetrical DIN rail
Maximum cable distance between devices<98.4 ft (30 m) regular input
Pollution degree2 IEC 60664
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail
Depth3.3 in (85 mm)
Width9.4 in (237.5 mm)
Height3.9 in (99 mm)
StandardsIEC 61131-2 CSA C22.2 No 213 CSA C22.2 No 142 UL 508
MarkingCE
CategoryUS1PC1222532
Data backed upVariables of type retain and retain persistent CR2477M Renata, 1.5 years
Realtime clockWithout any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C) With user calibration clock, clock drift <= 6 s/month
Input impedance6 kOhm fast input 6 kOhm regular input
Local signalling1 LED per channel I/O state 1 LED CAN0 STS 1 LED MBS COM 1 LED green/red APP0 1 LED green/red APP1 1 LED green/red Eth NS (Ethernet network status) 1 LED green/red Eth ST (Ethernet status) 1 LED green/red RUN/MS (module status) 1 LED green/red USB host 1 LED green/yellow Eth LA (Ethernet activity) 1 LED red BATT (battery status)
Memory descriptionFlash 128 MB Internal RAM 64 MB
Discrete i (O number)42
Discrete input logicSink fast input Sink regular input Source input
Analogue input number4
Anti bounce filtering2 µs...4 ms configurable fast input/regular input and fast output
Counting input number8 200 kHz
Discrete input number10 fast input 12 input 4 regular input
Discrete output logicSource
Discrete output number12 output 4 fast output
Analogue input resolution12 bits
Configurable filtering time0 ms fast input/regular input and fast output 1.5 ms fast input/regular input and fast output 12 ms fast input/regular input and fast output 4 ms fast input/regular input and fast output
Resistance to fast transients1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines)
Disturbance radiated (conducted)CISPR 11
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to electromagnetic fields0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3
Ambient air temperature for operation32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation)
Resistance to electrostatic discharge4 kV on contact IEC 61000-4-2 8 kV in air IEC 61000-4-2
Isolation between channels and internal logic500 Vrms AC

Product details

Controls Integration Note

The TM258LD42DT4L is a Modicon M258 controller with 42 discrete I/O (10 fast inputs, 12 standard inputs, 4 regular inputs, 12 outputs, 4 fast outputs) and 4 analog inputs configurable for current (0–20 mA or 4–20 mA) or voltage (±10 V). The 8 counting inputs accept up to 200 kHz, making it suitable for encoder or high-speed pulse monitoring. Ethernet and CAN interfaces are built in, indicated by separate LEDs on the front panel. Power supply range is 20.4–28.8 V DC, consuming 14.14 W.

DIN Rail Fit & Wiring

Mounts on symmetrical DIN rail. Dimensions: 85 mm depth, 237.5 mm width, 99 mm height. Supply 24 V DC; I/O segment draws 10 A. Inputs sink/source; outputs source. Fast input filter configurable 2 µs to 4 ms.

Frequently asked questions

What are the key certifications for TM258LD42DT4L?

It complies with IEC 61131-2, CSA C22.2 No 213 and No 142, and UL 508, with CE marking. It also meets surge withstand levels of 0.5 kV differential mode and 1 kV common mode per IEC 61000-4-5.
