Schneider TM258LF42DR Control Interface Boards — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Range of product | Modicon M258 |
| Product or component type | Logic controller |
| Integrated connection type | 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX 1 isolated serial link mini B USB 480 Mbit/s 1 isolated serial link USB type A 480 Mbit/s 2 free slots PCI 1 CANopen male SUB-D 9 CANopen master |
| Discrete input voltage type | DC |
| Surge withstand | 0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5 |
| Output voltage limits | 19.2...28.8 V |
| Supply voltage limits | 20.4...28.8 V |
| Discrete input voltage | 24 V |
| Discrete output voltage | 24 V DC |
| Supply voltage | 24 V DC embedded expert modules power 24 V DC I/O power segment 24 V DC main supply |
| Voltage state 0 guaranteed | <= 5 V regular input |
| Voltage state 1 guaranteed | >= 15 V fast input >= 15 V fast output >= 15 V regular input |
| Parameter | Value |
|---|---|
| Peak current | 100 kA 25 kA 50 kA 1.2 A > 70 s)main supply |
| Line rated current | 0.04 A embedded expert modules power 10 A I/O power segment 0.33 A main supply |
| Discrete input current | 4 mA fast input 4 mA regular input |
| Discrete output current | 4 mA fast output |
| Power consumption in | 17.22 W |
| IP degree of protection | IP20IEC 61131-2 |
| Mounting support | Symmetrical DIN rail |
| Maximum cable distance between devices | <98.4 ft (30 m) regular input |
| Pollution degree | 2 IEC 60664 |
| Shock resistance | 15 gn 11 ms |
| Storage altitude | 0...9842.5 ft (0...3000 m) |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail |
| Depth | 3.3 in (85 mm) |
| Width | 10.3 in (262.5 mm) |
| Height | 3.9 in (99 mm) |
| Standards | CSA C22.2 No 213 UL 508 CSA C22.2 No 142 IEC 61131-2 |
| Marking | CE |
| Category | US1PC1222532 |
| Data backed up | Variables of type retain and retain persistent CR2477M Renata, 1.5 years |
| Realtime clock | Without any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C) With user calibration clock, clock drift <= 6 s/month |
| Input impedance | 6 kOhm fast input 6 kOhm regular input |
| Local signalling | 1 LED per channel I/O state 1 LED CAN0 STS 1 LED MBS COM 1 LED green/red APP0 1 LED green/red APP1 1 LED green/red Eth NS (Ethernet network status) 1 LED green/red Eth ST (Ethernet status) 1 LED green/red RUN/MS (module status) 1 LED green/red USB host 1 LED green/yellow Eth LA (Ethernet activity) 1 LED red BATT (battery status) |
| Transmission rate | 125 kbit/s 1640.4 ft (500 m) CANopen 250 kbit/s 820.2 ft (250 m) CANopen 50 kbit/s 3280.8 ft (1000 m) CANopen 500 kbit/s 328.08 ft (100 m) CANopen 10 kbit/s 16404.2 ft (5000 m) CANopen 1000 kbit/s 13.1 ft (4 m) CANopen 20 kbit/s 8202.10 ft (2500 m) CANopen 800 kbit/s 82.02 ft (25 m) CANopen |
| Memory description | Flash 128 MB Internal RAM 64 MB |
| Discrete i (O number) | 42 |
| Discrete input logic | Sink fast input Sink regular input Source input |
| Anti bounce filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
| Counting input number | 8 200 kHz |
| Discrete input number | 10 fast input 12 input 4 regular input |
| Discrete output logic | Source |
| Discrete output number | 12 relay output 4 fast output |
| Configurable filtering time | 0 ms fast input/regular input and fast output 1.5 ms fast input/regular input and fast output 12 ms fast input/regular input and fast output 4 ms fast input/regular input and fast output |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines) |
| Disturbance radiated (conducted) | CISPR 11 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation) |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2 8 kV in air IEC 61000-4-2 |
| Isolation between channels and internal logic | 500 Vrms AC |

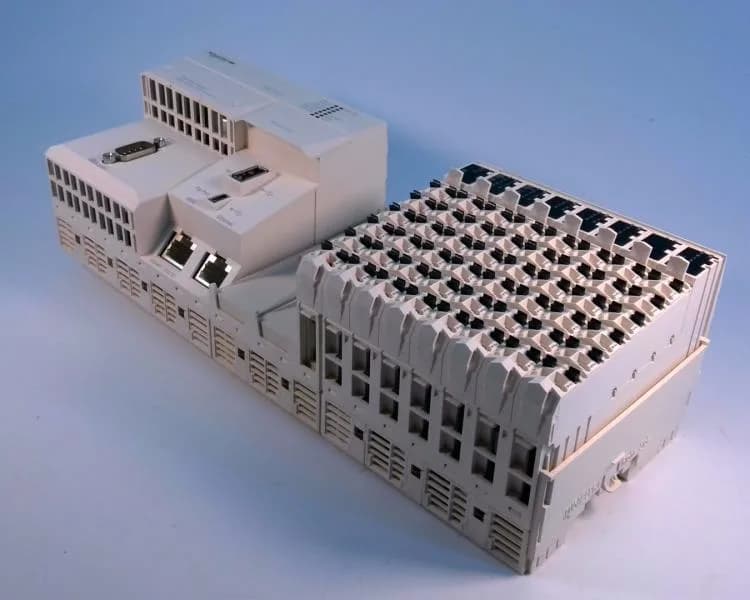

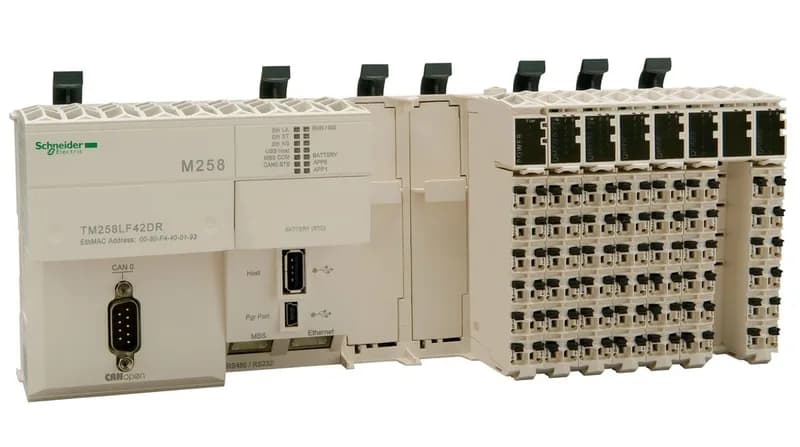

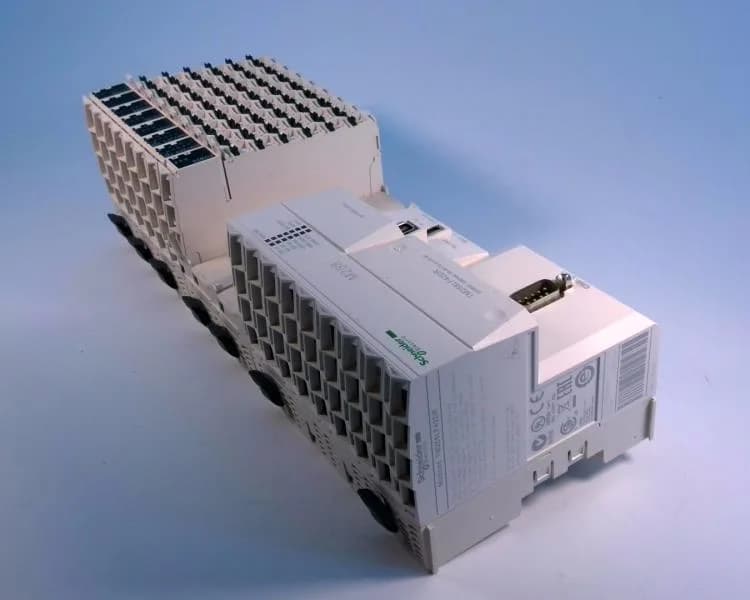

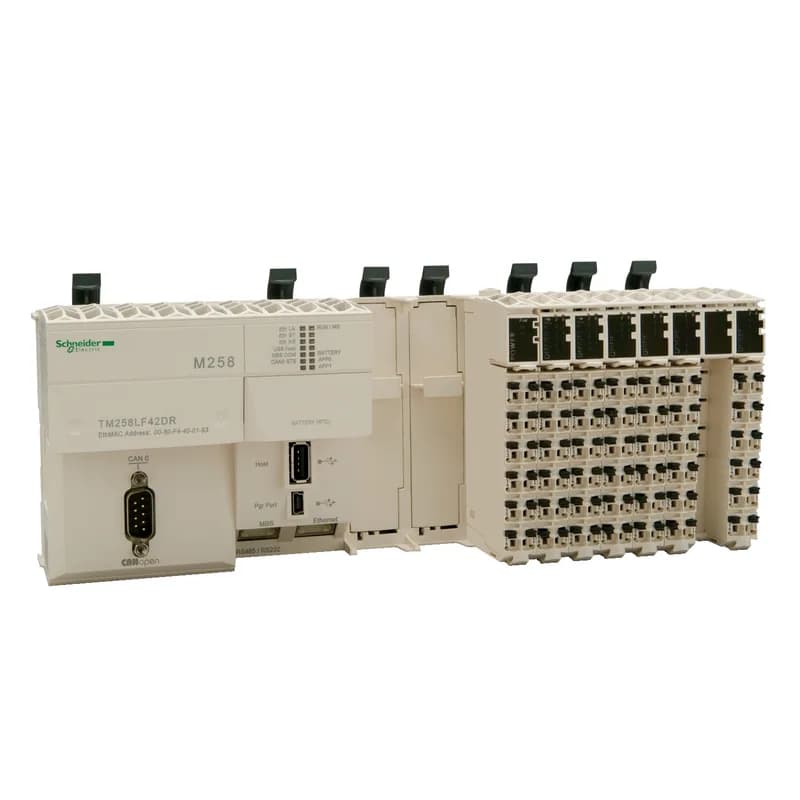

The TM258LF42DR is a Schneider Modicon M258 control interface board, order code TM258LF42DR, with 42 I/O points comprising 26 digital inputs and 12 digital outputs, all at 24 VDC. Mounts on symmetrical DIN rail and is rated IP20 per IEC 61131-2.
Rated to withstand 15 gn shock for 11 ms, suitable for applications with moderate mechanical stress.
CE marked and compliant with UL 508 and IEC 61131-2.
