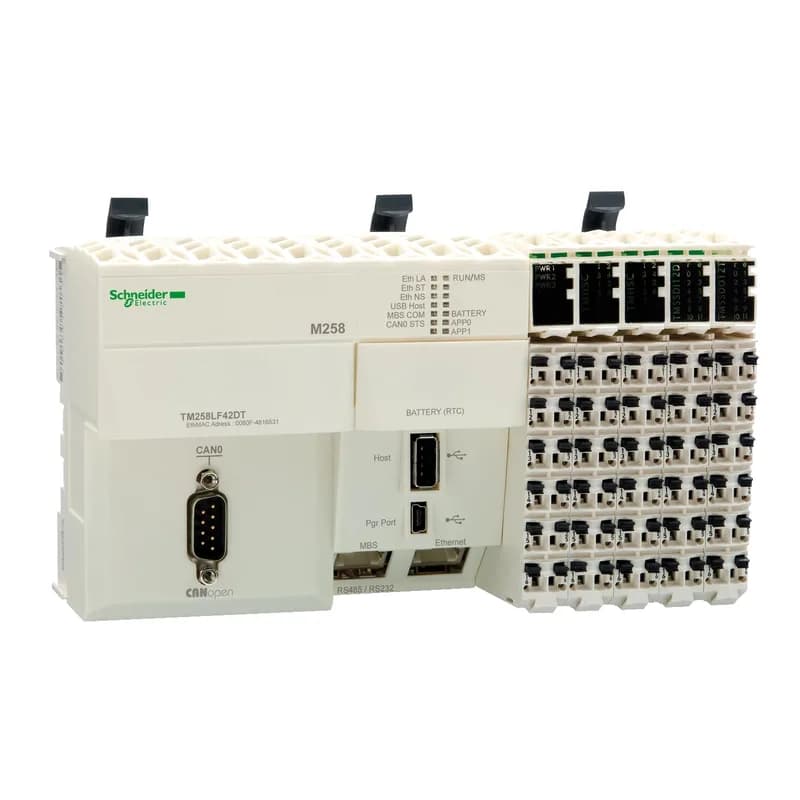

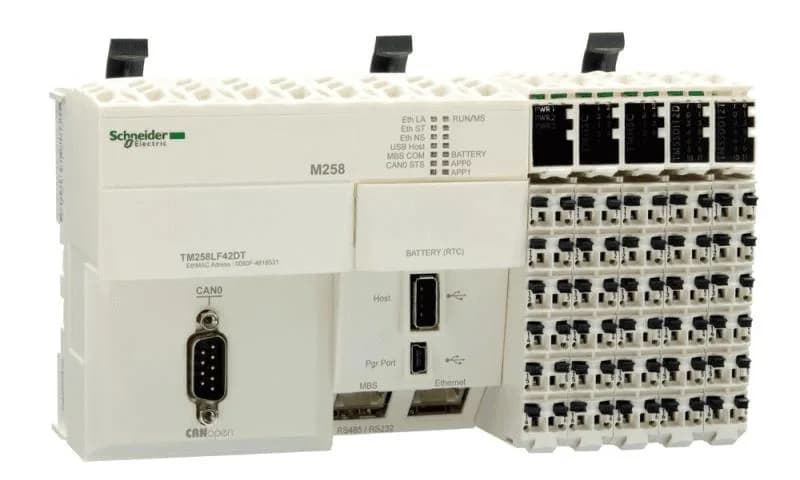

Schneider Electric TM258LF42DT

Schneider TM258LF42DT Modicon M258 PLC Expansion Module, 42 I/O

MPNTM258LF42DT
Obsolete

Schneider TM258LF42DT Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$842.01 – $1,466.00Ref. price · indicative, final on quote
Schneider Electric TM258LF42DT datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM258LF42DT key specifications
ParameterValue
Range of productModicon M258
Product or component typeLogic controller
Integrated connection type1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX 1 isolated serial link mini B USB 480 Mbit/s 1 isolated serial link USB type A 480 Mbit/s 1 CANopen male SUB-D 9 CANopen master
Discrete input voltage typeDC
Surge withstand0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5
Output voltage limits19.2...28.8 V
Supply voltage limits20.4...28.8 V
Discrete input voltage24 V
Discrete output voltage24 V DC
Supply voltage24 V DC embedded expert modules power 24 V DC I/O power segment 24 V DC main supply
Voltage state 0 guaranteed<= 5 V regular input
Voltage state 1 guaranteed>= 15 V fast input >= 15 V fast output >= 15 V regular input

All specifications

TM258LF42DT additional specifications
ParameterValue
Peak current100 kA 25 kA 50 kA 1.2 A > 70 s)main supply
Line rated current0.04 A embedded expert modules power 10 A I/O power segment 0.26 A main supply
Discrete input current4 mA fast input 4 mA regular input
Discrete output current4 mA fast output
Power consumption in13.03 W
IP degree of protectionIP20IEC 61131-2
Mounting supportSymmetrical DIN rail
Maximum cable distance between devices<98.4 ft (30 m) regular input
Pollution degree2 IEC 60664
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail
Depth3.3 in (85 mm)
Width6.9 in (175 mm)
Height3.9 in (99 mm)
StandardsUL 508 CSA C22.2 No 142 IEC 61131-2 CSA C22.2 No 213
MarkingCE
CategoryUS1PC1222532
Data backed upVariables of type retain and retain persistent CR2477M Renata, 1.5 years
Realtime clockWithout any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C) With user calibration clock, clock drift <= 6 s/month
Input impedance6 kOhm fast input 6 kOhm regular input
Local signalling1 LED per channel I/O state 1 LED CAN0 STS 1 LED MBS COM 1 LED green/red APP0 1 LED green/red APP1 1 LED green/red Eth NS (Ethernet network status) 1 LED green/red Eth ST (Ethernet status) 1 LED green/red RUN/MS (module status) 1 LED green/red USB host 1 LED green/yellow Eth LA (Ethernet activity) 1 LED red BATT (battery status)
Transmission rate125 kbit/s 1640.4 ft (500 m) CANopen 250 kbit/s 820.2 ft (250 m) CANopen 50 kbit/s 3280.8 ft (1000 m) CANopen 500 kbit/s 328.08 ft (100 m) CANopen 10 kbit/s 16404.2 ft (5000 m) CANopen 1000 kbit/s 13.1 ft (4 m) CANopen 20 kbit/s 8202.10 ft (2500 m) CANopen 800 kbit/s 82.02 ft (25 m) CANopen
Memory descriptionFlash 128 MB Internal RAM 64 MB
Discrete i (O number)42
Discrete input logicSink fast input Sink regular input Source input
Anti bounce filtering2 µs...4 ms configurable fast input/regular input and fast output
Counting input number8 200 kHz
Discrete input number10 fast input 12 input 4 regular input
Discrete output logicSource
Discrete output number12 output 4 fast output
Configurable filtering time0 ms fast input/regular input and fast output 1.5 ms fast input/regular input and fast output 12 ms fast input/regular input and fast output 4 ms fast input/regular input and fast output
Resistance to fast transients1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines)
Disturbance radiated (conducted)CISPR 11
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to electromagnetic fields0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3
Ambient air temperature for operation32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation)
Resistance to electrostatic discharge4 kV on contact IEC 61000-4-2 8 kV in air IEC 61000-4-2
Isolation between channels and internal logic500 Vrms AC

Product details

Overview

The TM258LF42DT is a Modicon M258 PLC expansion module from Schneider, packing 42 discrete I/O channels on a single DIN-rail unit. Communication is handled via Modbus TCP, CANopen master, RS232/485, and USB — all on board. The module carries 128 MB flash and 64 MB RAM, with retain variables backed up for 1.5 years by a CR2477M battery. Rated for 15 gn 11 ms shock and IP20, it is built for cabinet mounting on symmetrical DIN rail. It carries CE, UL 508, CSA C22.2 No 142, and IEC 61131-2 marks.

MPN
TM258LF42DT
