Schneider Electric TM258LF42DT4L — Unclassified

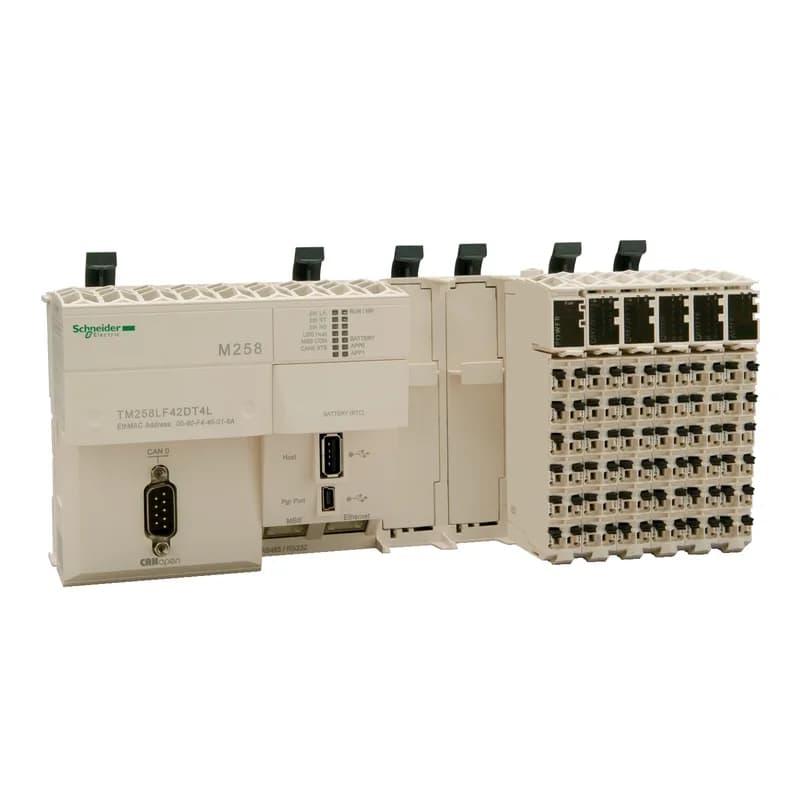

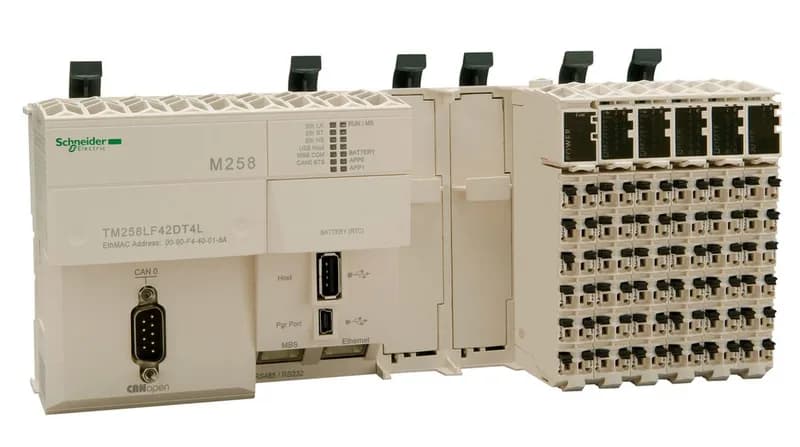

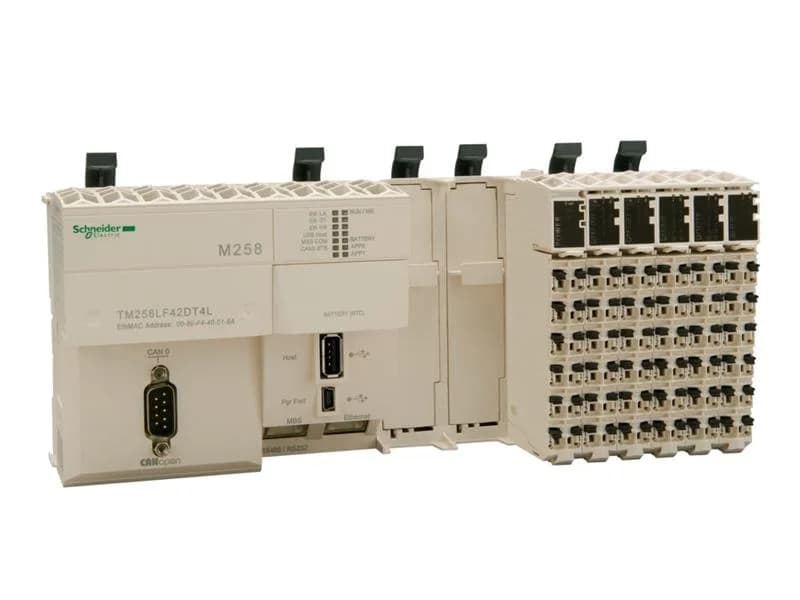

Schneider TM258LF42DT4L Modicon M258 PLC, 42 I/O, current

MPNTM258LF42DT4L
Obsolete

Schneider Electric Modicon M258 logic controller, 42 I/O, 4 analog inputs, 8 high-speed counting inputs (200 kHz), CANopen interface, 24 V DC supply, current lifecycle.

$1,078.23 – $1,849.00Ref. price · indicative, final on quote
Schneider Electric TM258LF42DT4L datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TM258LF42DT4L key specifications
ParameterValue
Range of productModicon M258
Analogue input typeCurrent 0...20 mA Current 4...20 mA Voltage +/- 10 V
Product or component typeLogic controller
Integrated connection type1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX 1 isolated serial link mini B USB 480 Mbit/s 1 isolated serial link USB type A 480 Mbit/s 2 free slots PCI 1 CANopen male SUB-D 9 CANopen master
Discrete input voltage typeDC
Surge withstand0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5
Output voltage limits19.2...28.8 V
Supply voltage limits20.4...28.8 V
Discrete input voltage24 V
Discrete output voltage24 V DC
Supply voltage24 V DC embedded expert modules power 24 V DC I/O power segment 24 V DC main supply
Voltage state 0 guaranteed<= 5 V regular input

All specifications

TM258LF42DT4L additional specifications
ParameterValue
Voltage state 1 guaranteed>= 15 V fast input >= 15 V fast output >= 15 V regular input
Peak current100 kA 25 kA 50 kA 1.2 A > 70 s)main supply
Line rated current0.04 A embedded expert modules power 10 A I/O power segment 0.31 A main supply
Discrete input current4 mA fast input 4 mA regular input
Discrete output current4 mA fast output
Power consumption in14.14 W
IP degree of protectionIP20IEC 61131-2
Mounting supportSymmetrical DIN rail
Maximum cable distance between devices<98.4 ft (30 m) regular input
Pollution degree2 IEC 60664
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail
Depth3.3 in (85 mm)
Width9.4 in (237.5 mm)
Height3.9 in (99 mm)
StandardsUL 508 IEC 61131-2 CSA C22.2 No 213 CSA C22.2 No 142
MarkingCE
CategoryUS1PC1222532
Data backed upVariables of type retain and retain persistent CR2477M Renata, 1.5 years
Realtime clockWithout any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C) With user calibration clock, clock drift <= 6 s/month
Input impedance6 kOhm fast input 6 kOhm regular input
Local signalling1 LED per channel I/O state 1 LED CAN0 STS 1 LED MBS COM 1 LED green/red APP0 1 LED green/red APP1 1 LED green/red Eth NS (Ethernet network status) 1 LED green/red Eth ST (Ethernet status) 1 LED green/red RUN/MS (module status) 1 LED green/red USB host 1 LED green/yellow Eth LA (Ethernet activity) 1 LED red BATT (battery status)
Transmission rate125 kbit/s 1640.4 ft (500 m) CANopen 250 kbit/s 820.2 ft (250 m) CANopen 50 kbit/s 3280.8 ft (1000 m) CANopen 500 kbit/s 328.08 ft (100 m) CANopen 10 kbit/s 16404.2 ft (5000 m) CANopen 1000 kbit/s 13.1 ft (4 m) CANopen 20 kbit/s 8202.10 ft (2500 m) CANopen 800 kbit/s 82.02 ft (25 m) CANopen
Memory descriptionFlash 128 MB Internal RAM 64 MB
Discrete i (O number)42
Discrete input logicSink fast input Sink regular input Source input
Analogue input number4
Anti bounce filtering2 µs...4 ms configurable fast input/regular input and fast output
Counting input number8 200 kHz
Discrete input number10 fast input 12 input 4 regular input
Discrete output logicSource
Discrete output number12 output 4 fast output
Analogue input resolution12 bits
Configurable filtering time0 ms fast input/regular input and fast output 1.5 ms fast input/regular input and fast output 12 ms fast input/regular input and fast output 4 ms fast input/regular input and fast output
Resistance to fast transients1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines)
Disturbance radiated (conducted)CISPR 11
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to electromagnetic fields0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3
Ambient air temperature for operation32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation)
Resistance to electrostatic discharge4 kV on contact IEC 61000-4-2 8 kV in air IEC 61000-4-2
Isolation between channels and internal logic500 Vrms AC

Product details

What this controller brings to your panel

The TM258LF42DT4L is a 24 V DC Modicon M258 controller with 42 discrete I/O. Sink logic on the fast/regular inputs, source on all outputs. Four analog inputs handle 0–20 mA, 4–20 mA, or ±10 V, so you can wire in pressure transmitters or analog position feedback directly. Eight of the inputs are counting-capable at 200 kHz – enough for incremental encoders on a packaging line or spindle speed feedback. CANopen at selectable bit rates from 10 kbit/s to 1 Mbit/s ties the controller into I/O blocks, drives, and remote racks. The 128 MB flash / 64 MB RAM memory leaves headroom for moderate programs and data logging.

Compliance and mounting notes

Rated for UL 508, IEC 61131-2, CSA C22.2 No. 213 and 142 – meets the certification list most panel shops and inspectors check. Pollution degree 2, mounts on symmetrical DIN rail, vibration resistance at 1 gn from 8.4 to 150 Hz. Storage altitude to 3000 m, operating to 2000 m. The 85 mm depth and 237.5 mm width fit standard enclosures. Real-time clock drifts under 30 s/month without user calibration, or down to 6 s/month with calibration – useful for timestamped alarms or batch records. The CR2477M battery keeps retain variables alive for about 1.5 years on the shelf.

Frequently asked questions

What compliance documentation does this controller carry?

It is marked CE and listed under UL 508, IEC 61131-2, and CSA C22.2 No. 213/142. That covers most industrial control panel requirements in North America and Europe.

MPN
TM258LF42DT4L
