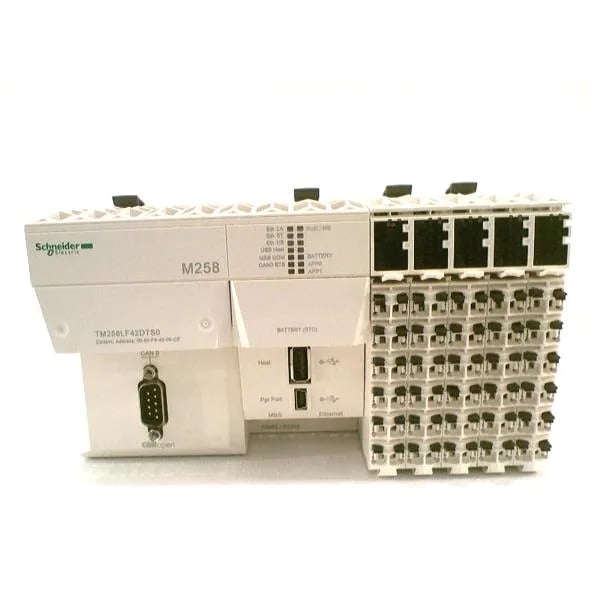

Schneider TM258LF42DTS0 Modicon M258 PLC, 42 I/O

Q: What are the panel dimensions?

Width is 6.9 in (175 mm), depth is 3.3 in (85 mm), height is 3.9 in (99 mm).

Q: What compliance certifications does it carry?

CE marking, IEC 61131-2, CSA C22.2 No 142 and No 213, UL 508.

MPNTM258LF42DTS0

Obsolete

Schneider Electric Modicon M258 PLC, TM258LF42DTS0, 42 discrete I/O, 24 V DC, CANopen, 200 kHz fast inputs.

$3,481.12Ref. price · indicative, final on quote

Find equivalent or request quote

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM258LF42DTS0 key specifications
Parameter	Value
Range of product	Modicon M258
Product or component type	Logic controller
Integrated connection type	1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX 1 isolated serial link mini B USB 480 Mbit/s 1 isolated serial link USB type A 480 Mbit/s 1 CANopen male SUB-D 9 CANopen master
Discrete input voltage type	DC
Surge withstand	0.5 kV differential mode EN/IEC 61000-4-5 1 kV common mode EN/IEC 61000-4-5
Output voltage limits	19.2...28.8 V
Supply voltage limits	20.4...28.8 V
Discrete input voltage	24 V
Discrete output voltage	24 V DC
Supply voltage	24 V DC embedded expert modules power 24 V DC I/O power segment 24 V DC main supply
Voltage state 0 guaranteed	<= 5 V regular input
Voltage state 1 guaranteed	>= 15 V fast input >= 15 V fast output >= 15 V regular input

All specifications

TM258LF42DTS0 additional specifications
Parameter	Value
Peak current	100 kA 25 kA 50 kA 1.2 A > 70 s)main supply
Line rated current	0.04 A embedded expert modules power 10 A I/O power segment 0.26 A main supply
Discrete input current	4 mA fast input 4 mA regular input
Discrete output current	4 mA fast output
Power consumption in	13.03 W
IP degree of protection	IP20IEC 61131-2
Mounting support	Symmetrical DIN rail
Maximum cable distance between devices	<98.4 ft (30 m) regular input
Pollution degree	2 IEC 60664
Shock resistance	15 gn 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	5...95 % without condensation
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail
Depth	3.3 in (85 mm)
Width	6.9 in (175 mm)
Height	3.9 in (99 mm)
Standards	IEC 61131-2 CSA C22.2 No 142 UL 508 CSA C22.2 No 213
Marking	CE
Category	22532-M258 PLC
Data backed up	Variables of type retain and retain persistent CR2477M Renata, 1.5 years
Realtime clock	Without any user calibration clock, clock drift < 30 s/month at 77 °F (25 °C) With user calibration clock, clock drift <= 6 s/month
Input impedance	6 kOhm fast input 6 kOhm regular input
Local signalling	1 LED per channel I/O state 1 LED CAN0 STS 1 LED MBS COM 1 LED green/red APP0 1 LED green/red APP1 1 LED green/red Eth NS (Ethernet network status) 1 LED green/red Eth ST (Ethernet status) 1 LED green/red RUN/MS (module status) 1 LED green/red USB host 1 LED green/yellow Eth LA (Ethernet activity) 1 LED red BATT (battery status)
Software function	Applicatives functions blocks
Transmission rate	125 kbit/s 1640.4 ft (500 m) CANopen 250 kbit/s 820.2 ft (250 m) CANopen 50 kbit/s 3280.8 ft (1000 m) CANopen 500 kbit/s 328.08 ft (100 m) CANopen 10 kbit/s 16404.2 ft (5000 m) CANopen 1000 kbit/s 13.1 ft (4 m) CANopen 20 kbit/s 8202.10 ft (2500 m) CANopen 800 kbit/s 82.02 ft (25 m) CANopen
Memory description	Flash 128 MB Internal RAM 64 MB
Discrete i (O number)	42
Discrete input logic	Sink fast input Sink regular input Source input
Anti bounce filtering	2 µs...4 ms configurable fast input/regular input and fast output
Counting input number	8 200 kHz
Discrete input number	10 fast input 12 input 4 regular input
Discrete output logic	Source
Discrete output number	12 output 4 fast output
Configurable filtering time	0 ms fast input/regular input and fast output 1.5 ms fast input/regular input and fast output 12 ms fast input/regular input and fast output 4 ms fast input/regular input and fast output
Product specific application	For solutions
Resistance to fast transients	1 kV EN/IEC 61000-4-4 I/O) 1 kV EN/IEC 61000-4-4 shielded cable) 2 kV EN/IEC 61000-4-4 power lines)
Disturbance radiated (conducted)	CISPR 11
Execution time per instruction	22 ns Boolean
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Resistance to electromagnetic fields	0.9 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz EN/IEC 61000-4-3
Ambient air temperature for operation	32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation)
Resistance to electrostatic discharge	4 kV on contact EN/IEC 61000-4-2 8 kV in air EN/IEC 61000-4-2
Isolation between channels and internal logic	500 Vrms AC

Product details

The TM258LF42DTS0: Modicon M258 with 42 mixed I/O — 10 fast inputs at 200 kHz, 4 source outputs at 4 mA each, plus CANopen at selectable baud rates up to 1 Mbit/s. Memory: 128 MB flash, 64 MB RAM. Retain and retain persistent variables backed by a CR2477M cell for 1.5 years.

DIN rail and panel fit

Mounts on symmetrical DIN rail. The housing takes 6.9 in (175 mm) of width along the rail; allow 85 mm depth behind the panel for the module body and wiring clearance. Power draw: 13.03 W from a 24 V DC supply (20.4–28.8 V range). The backplane current is 0.26 A main supply, with an additional 0.04 A for embedded expert modules and 10 A for the I/O segment.

Carries CE marking, meets IEC 61131-2, CSA C22.2 No 142, UL 508, and CSA C22.2 No 213. Pollution degree 2 per IEC 60664. Surge withstand: 0.5 kV differential mode, 1 kV common mode on the supply. LED status indicators for each I/O channel, CAN, Ethernet, and battery.
