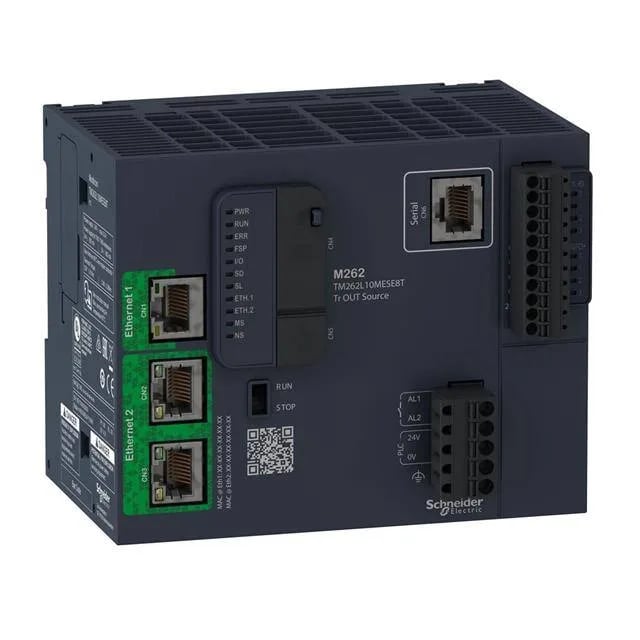

TM262L10MESE8T Modicon M262 Logic/Motion Controller, 0.5ms

MPNTM262L10MESE8T
Active

Modicon M262 logic/motion controller, 8 I/O, 0.5 ms cycle time, fast outputs, OPC UA server.

$604.52Ref. price · indicative, final on quote
Schneider Electric TM262L10MESE8T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM262L10MESE8T key specifications
ParameterValue
Protection typeShort-circuit and overload protection with automatic reset Reverse polarity protection Short-circuit protection
Range of productLogic/motion controller - Modicon M262
Discrete output typeTransistor
Product or component typeLogic controller
Integrated connection typeEthernet 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T Serial link RJ45 RS232/RS485 Smart Communication Bus TM3 IO bus USB type mini B
Discrete input voltage typeDC
Surge withstand1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Output voltage limits30 V DC
Supply voltage limits20.4...28.8 V DC
Discrete input voltage24 V
Discrete output voltage24 V DC
Supply voltage24 V DC - 15...20 %

All specifications

TM262L10MESE8T additional specifications
ParameterValue
Voltage state 0 guaranteed<= 5 V DC
Voltage state 1 guaranteed>= 15 V DC
Inrush current40 A
Discrete input current7.5 mA fast input
Discrete output current0.5 A fast output Q0...Q3)
Maximum leakage current10 µA output
Maximum current per output common0.5 A Q0...Q3 fast output
PLC power consumption82 W
Maximum output frequency300 kHz
IP degree of protectionIP20
Communication serviceMQTTs OPC UA server (Encrypt) HTTPs Methods (API) Web server Web visu TLS 1.2 TLS 1.3 SNTP NTP client/server FTP client/server FTPs server SQL client (remote access) DHCP client DHCP server DNS client POP3s client SMTP client SNMP client/server
Communication port protocolEtherNet/IP adapter EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus TCP NVL Ethernet RSTP Modbus SL client/server Modbus SL IO scanner Modbus SL modem management Machine Expert ASCII manager ASCII modem management
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply
Maximum cable distance between devicesShielded cable Shielded cable Unshielded cable Unshielded cable Shielded cable Shielded cable <49.2 ft (15 m) RS232
Response time<= 1 µs turn-off, Q0...Q3 fast output
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 2...8.4 Hz symmetrical rail 1 gn 8.4...200 Hz symmetrical rail 3.5 mm 2...8.4 Hz panel mounting 1 gn 8.4...200 Hz panel mounting
Depth3.5 in (90 mm)
Width4.9 in (125 mm)
Height3.9 in (100 mm)
StandardsUL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2
Accuracy+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
CategoryUS10MSX22534
Cycle time0.5 ms
InsulationBetween fast input and internal logic 550 V AC Non-insulated between inputs Between fast output and internal logic 500 V AC Non-insulated between outputs Between input and output 500 V AC Between supply and internal logic 500 V AC Non-insulated between supply and ground
Reset time200 ms automatic reset fast output
Backup time1000 h 77 °F (25 °C)
Clock drift<= 10 s/month 77 °F (25 °C)
Data backed up1 GB built-in flash memory backup of user programs
Realtime clockWith
Input impedance2.81 kOhm input
Memory capacity32 MB program RAM 32 MB OS/website RAM 192 MB system memory RAM
Local signalling1 LED (green/red) for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/orange) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/red) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS
Transmission rate115 kbit/s 49.2 ft (15 m) RS485 115 kbit/s 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2
Discrete i (O number)8
Discrete input logicSink
Application structure8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks
Discrete input number4, discrete input fast input IEC 61131-2 Type 1
Discrete output logicSource
Maximum tungsten load<1.5 W
Positioning functionsLibraries axes coordinated
Upstream connectivityIIoT-ready machine to cloud Connected machine to plant
Data storage equipment<= 32 GB SDHC card optional)
Discrete output number4 transistor fast output
Overvoltage protectionWith
Immunity to microbreaks0.01 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBµV/m30...230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions230...1000 MHz IEC 55011
Configurable filtering time0.001 ms fast input 0.002 ms fast input 0.005 ms fast input 0.01 ms fast input 0.05 ms fast input 0.1 ms fast input 0.5 ms fast input 1 ms fast input 4 ms fast input 12 ms fast input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction0.005 ms
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Maximum number of connected devicesEtherNet/IP: 64 ((pending)) Modbus TCP: 64 Modbus TCP/EtherNet/IP: 96
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation-4...140 °F (-20...60 °C) horizontal installation) -4...122 °F (-20...50 °C) vertical installation) -4...113 °F (-20...45 °C) flat mounting)
Resistance to electrostatic discharge4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2

Product details

Controller specs for commissioning

The TM262L10MESE8T is a Modicon M262 logic and motion controller from Schneider Electric, part of the current production lineup. Cycle time sits at 0.5 ms, and the four fast transistor outputs (source logic) turn off in under 1 µs — needed for high-speed actuation like labeling or pick-and-place. The 32 MB program RAM and 1 GB built-in flash back up user code without an SD card. Communication covers MQTT and OPC UA server (encrypted) natively, plus dual Ethernet ports (10/100/1000 Mbps on ETH2) for network segregation. Four fast inputs (Type 1) accept sink logic; total onboard I/O is 8 points.

Mounting and field wiring

Mounts on TH35-15 or TH35-7.5 rail per IEC 60715, or on a plate/panel. Dimensions: 90x125x100 mm, pollution degree 2, vibration 1 gn 8.4–200 Hz, inrush 40 A, protection includes reverse polarity and short-circuit automatic reset.

Frequently asked questions

What compliance standards does this controller meet?

It is certified to UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 213, ANSI/ISA 12-12-01, and IEC 61131-2.
