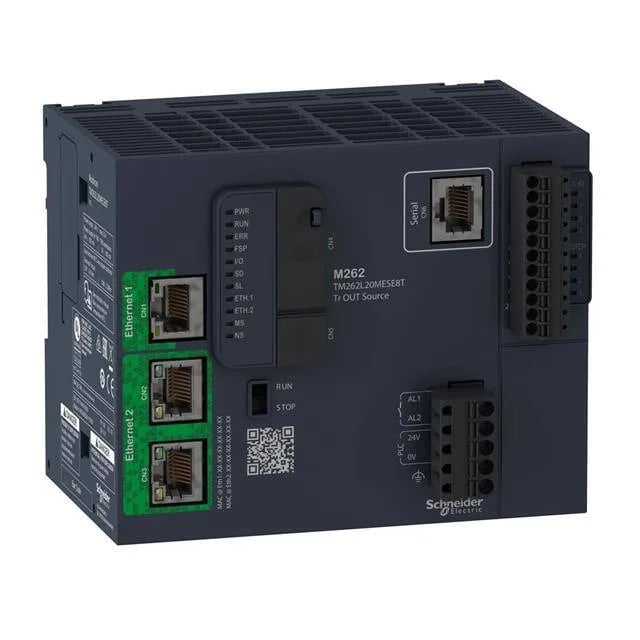

Modicon TM262L20MESE8T Logic/Motion Controller, 0.5ms Cycle

Name: TM262L20MESE8T
Brand: Schneider Electric
SKU: TM262L20MESE8T
Availability: LimitedAvailability
Author: Night-Shift Neil

MPNTM262L20MESE8T

Active

Schneider Electric Modicon M262 logic/motion controller, TM262L20MESE8T, 8 I/O, 0.5 ms cycle time, ≤1 µs fast output, 1 GB flash, MQTT/OPC UA.

$807.72Ref. price · indicative, final on quote

Request quote

Schneider Electric TM262L20MESE8T datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM262L20MESE8T key specifications
Parameter	Value
Protection type	Short-circuit and overload protection with automatic reset Reverse polarity protection Short-circuit protection
Range of product	Logic/motion controller - Modicon M262
Discrete output type	Transistor
Product or component type	Logic controller
Integrated connection type	Ethernet 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T Serial link RJ45 RS232/RS485 Smart Communication Bus TM3 IO bus USB type mini B
Discrete input voltage type	DC
Surge withstand	1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Output voltage limits	30 V DC
Supply voltage limits	20.4...28.8 V DC
Discrete input voltage	24 V
Discrete output voltage	24 V DC
Supply voltage	24 V DC - 15...20 %

All specifications

TM262L20MESE8T additional specifications
Parameter	Value
Voltage state 0 guaranteed	<= 5 V DC
Voltage state 1 guaranteed	>= 15 V DC
Inrush current	40 A
Discrete input current	7.5 mA fast input
Discrete output current	0.5 A fast output Q0...Q3)
Maximum leakage current	10 µA output
Maximum current per output common	0.5 A Q0...Q3 fast output
PLC power consumption	82 W
Maximum output frequency	300 kHz
IP degree of protection	IP20
Communication service	MQTTs OPC UA server (Encrypt) OPC UA client (Encrypt) HTTPs Methods (API) Web server Web visu TLS 1.2 TLS 1.3 SNTP NTP client/server FTP client/server FTPs server SQL client (remote access) DHCP client DHCP server DNS client POP3s client SMTP client SNMP client/server
Communication port protocol	EtherNet/IP adapter EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus TCP NVL Ethernet RSTP Modbus SL client/server Modbus SL IO scanner Modbus SL modem management Machine Expert ASCII manager ASCII modem management
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection	removable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply
Maximum cable distance between devices	Shielded cable Shielded cable Unshielded cable Unshielded cable Shielded cable Shielded cable <49.2 ft (15 m) RS232
Response time	<= 1 µs turn-off, Q0...Q3 fast output
Pollution degree	2
Shock resistance	15 gn 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 2...8.4 Hz symmetrical rail 1 gn 8.4...200 Hz symmetrical rail 3.5 mm 2...8.4 Hz panel mounting 1 gn 8.4...200 Hz panel mounting
Depth	3.5 in (90 mm)
Width	4.9 in (125 mm)
Height	3.9 in (100 mm)
Standards	UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2
Accuracy	+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
Category	US10MSX22534
Cycle time	0.5 ms
Insulation	Between fast input and internal logic 550 V AC Non-insulated between inputs Between output and internal logic 550 V AC Non-insulated between outputs Between input and output 550 V AC Between supply and internal logic 550 V AC Non-insulated between supply and ground
Reset time	200 ms automatic reset fast output
Backup time	1000 h 77 °F (25 °C)
Clock drift	<= 10 s/month 77 °F (25 °C)
Data backed up	1 GB built-in flash memory backup of user programs
Realtime clock	With
Input impedance	2.81 kOhm input
Memory capacity	32 MB program RAM 32 MB OS/website RAM 192 MB system memory RAM
Local signalling	1 LED (green/red) for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/orange) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/red) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS
Transmission rate	115 kbit/s 49.2 ft (15 m) RS485 115 kbit/s 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2
Discrete i (O number)	8
Discrete input logic	Sink
Application structure	8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks
Discrete input number	4, discrete input fast input IEC 61131-2 Type 1
Discrete output logic	Source
Maximum tungsten load	<1.5 W
Positioning functions	Libraries axes coordinated
Upstream connectivity	IIoT-ready machine to cloud Connected machine to plant
Data storage equipment	<= 32 GB SDHC card optional)
Discrete output number	4 transistor fast output
Overvoltage protection	With
Immunity to microbreaks	0.01 ms
Electromagnetic emission	Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBµV/m30...230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions230...1000 MHz IEC 55011
Configurable filtering time	0.001 ms fast input 0.002 ms fast input 0.005 ms fast input 0.01 ms fast input 0.05 ms fast input 0.1 ms fast input 0.5 ms fast input 1 ms fast input 4 ms fast input 12 ms fast input
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction	0.003 ms
Ambient air temperature for storage	-40...185 °F (-40...85 °C)
Maximum number of connected devices	EtherNet/IP: 64 Modbus TCP: 64 Modbus TCP/EtherNet/IP: 128
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation	-4...140 °F (-20...60 °C) horizontal installation) -4...122 °F (-20...50 °C) vertical installation) -4...113 °F (-20...45 °C) flat mounting)
Resistance to electrostatic discharge	4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2

Product details

Motion and Logic on a Single Cycle

The Schneider Electric TM262L20MESE8T is a Modicon M262 controller that runs logic and motion on a unified 0.5 ms cycle, so you don't need separate CPUs for coordinated axes. Fast transistor outputs (Q0...Q3) switch off in ≤1 µs—useful for registration cam or clamp-on-edge sequences. Eight event tasks let real-time responses break out of the main scan for machine safety or high-speed counting. The real-time clock drifts ≤10 s/month at 25 °C, backed by 1000 h of supercap hold-up, so timestamping stays solid through a weekend shutdown.

Commissioning Notes

Mounts on TH35-15 or TH35-7.5 rail, or screw to a panel with the fixing kit. Terminal blocks are spring-cage, removable: one for I/O, one for the 24 VDC supply. The supply sees 40 A inrush at power-up; size your PSU with that in mind. Fast inputs are IEC 61131-2 Type 1, 2.81 kΩ impedance, sinking logic. Default communication: 10/100/1000 Mbit/s on Ethernet2, 10/100 on Ethernet1, and a dedicated USB port at 480 Mbit/s for commissioning download. RS485 at 115 kbit/s (15 m) and RS232 at 115 kbit/s (3 m) round out the serial options.

Spare and Lifecycle

That means confident sourcing for new lines or spares cabinets. No direct functional drop-in from within the M262 family is listed because this exact I/O count and performance combination is the one you BOM'd. If you've accidentally got a TM262L20MESE8T on a line-down emergency, we can quote against an RFQ; the part is still alive through normal distribution.

Documentation and Standards

Carries UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1 and 61010-2-201, CSA C22.2 No 213, ANSI/ISA 12-12-01 (Class I Division 2), and IEC 61131-2. Pollution degree 2. Vibration: 3.5 mm at 2–8.4 Hz, 1 gn at 8.4–200 Hz on rail or panel. Shock: 15 gn/11 ms. Altitude: operate up to 2000 m, store to 3000 m. Program memory backed by 1 GB internal flash—holds recipes and firmware without a battery.

Frequently asked questions

What are the key performance specs?

Cycle time is 0.5 ms. Fast transistor outputs (Q0...Q3) turn off in ≤1 µs. Memory: 32 MB program RAM, 32 MB OS/website RAM, 192 MB system RAM, plus 1 GB flash for program backup.

What standards does the TM262L20MESE8T comply with?

It meets UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 213, ANSI/ISA 12-12-01, and IEC 61131-2. Pollution degree 2.
