Schneider Electric TM262M25MESS8T

Schneider TM262M25MESS8T Modicon M262, 8 I/O, 0.5ms

MPNTM262M25MESS8T
Active

Schneider Modicon M262 logic/motion controller, TM262M25MESS8T, 8 discrete I/O, 0.5 ms cycle, 90 mm depth.

$1,196.34Ref. price · indicative, final on quote
Schneider Electric TM262M25MESS8T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM262M25MESS8T key specifications
ParameterValue
Encoder typeIncremental encoder
Protection typeShort-circuit and overload protection with automatic reset Reverse polarity protection Short-circuit protection
Range of productLogic/motion controller - Modicon M262
Discrete output typeTransistor
Product or component typeMotion controller
Integrated connection typeEthernet/Sercos 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T Serial link RJ45 RS232/RS485 1 encoder female SUB-D 15 RS422/SSI Smart Communication Bus TM3 IO bus USB type mini B
Discrete input voltage typeDC
Surge withstand1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Output voltage limits30 V DC
Supply voltage limits20.4...28.8 V DC
Discrete input voltage24 V
Discrete output voltage24 V DC

All specifications

TM262M25MESS8T additional specifications
ParameterValue
Supply voltage24 V DC - 15...20 %
Voltage state 0 guaranteed<= 5 V DC
Voltage state 1 guaranteed>= 15 V DC
Inrush current40 A
Discrete input current7.5 mA fast input
Discrete output current0.5 A fast output Q0...Q3)
Maximum leakage current10 µA output
Maximum current per output common0.5 A Q0...Q3 fast output
PLC power consumption82 W
Maximum output frequency300 kHz
IP degree of protectionIP20
Communication serviceMQTTs OPC UA server (Encrypt) OPC UA client (Encrypt) HTTPs Methods (API) Web server Web visu TLS 1.2 TLS 1.3 SNTP NTP client/server FTP client/server FTPs server SQL client (remote access) DHCP client DHCP server DNS client POP3s client SMTP client SNMP client/server
Communication port protocolEtherNet/IP adapter EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus TCP NVL Ethernet RSTP Modbus SL client/server Modbus SL IO scanner Modbus SL modem management Machine Expert ASCII manager ASCII modem management Sercos III master
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionremovable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply
Maximum cable distance between devicesShielded cable Shielded cable Unshielded cable Unshielded cable Shielded cable Shielded cable <49.2 ft (15 m) RS232
Response time<= 1 µs turn-off, Q0...Q3 fast output
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 2...8.4 Hz symmetrical rail 1 gn 8.4...200 Hz symmetrical rail 3.5 mm 2...8.4 Hz panel mounting 1 gn 8.4...200 Hz panel mounting
Depth3.5 in (90 mm)
Width4.9 in (125 mm)
Height3.9 in (100 mm)
StandardsUL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2
Accuracy+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
CategoryUS10MSX22534
Cycle time0.5 ms
InsulationBetween fast input and internal logic 550 V AC Non-insulated between inputs Between output and internal logic 550 V AC Non-insulated between outputs Between input and output 550 V AC Between supply and internal logic 550 V AC Non-insulated between supply and ground
Reset time200 ms automatic reset fast output
Backup time1000 h 77 °F (25 °C)
Clock drift<= 10 s/month 77 °F (25 °C)
Data backed up1 GB built-in flash memory backup of user programs
Realtime clockWith
Input impedance2.81 kOhm input
Memory capacity32 MB program RAM 32 MB OS/website RAM 192 MB system memory RAM
Local signalling1 LED (green/red) for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/orange) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/red) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS 1 LED (green/red) for Sercos
Transmission rate115 kbit/s 49.2 ft (15 m) RS485 115 kbit/s 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2
Discrete i (O number)8
Discrete input logicSink
Application structure8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks
Discrete input number4, discrete input fast input IEC 61131-2 Type 1
Discrete output logicSource
Maximum tungsten load<1.5 W
Positioning functionsLibraries axes coordinated Libraries axes synchronous Sercos 3 motion bus
Upstream connectivityIIoT-ready machine to cloud Connected machine to plant
Data storage equipment<= 32 GB SDHC card optional)
Discrete output number4 transistor fast output
Overvoltage protectionWith
Immunity to microbreaks0.01 ms
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBµV/m30...230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions230...1000 MHz IEC 55011
Configurable filtering time0.001 ms fast input 0.002 ms fast input 0.005 ms fast input 0.01 ms fast input 0.05 ms fast input 0.1 ms fast input 0.5 ms fast input 1 ms fast input 4 ms fast input 12 ms fast input
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction0.003 ms
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Maximum number of connected devicesEtherNet/IP: 64 Modbus TCP: 64 Modbus TCP/EtherNet/IP: 128
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation-4...140 °F (-20...60 °C) horizontal installation) -4...122 °F (-20...50 °C) vertical installation) -4...113 °F (-20...45 °C) flat mounting)
Resistance to electrostatic discharge4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2

Product details

Logic/motion controller with integrated fast I/O

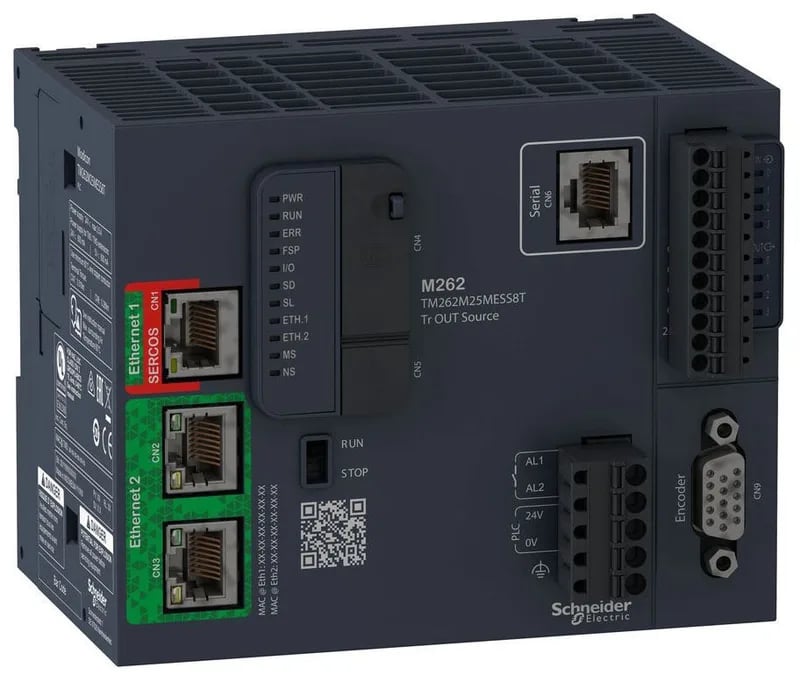

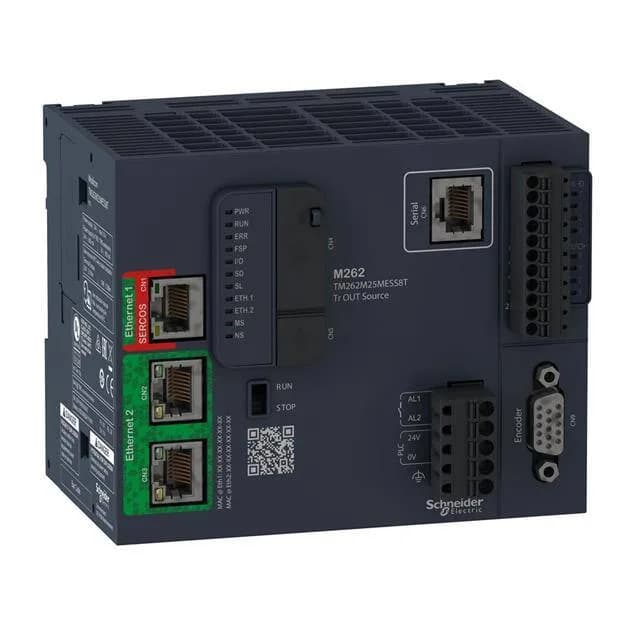

The Schneider TM262M25MESS8T is a Modicon M262 logic/motion controller packing 8 discrete I/O (4 sink-input fast channels as Type 1, 4 source transistor outputs) into a 125 × 100 × 90 mm (4.9 × 3.9 × 3.5 in) housing that clips onto a DIN rail or mounts to a panel with the fixing kit. Cycle time runs at 0.5 ms, and the fast outputs switch off in ≤1 µs, making this controller appropriate for tight motion loops where a millisecond matters.

Key ratings for fit

The four fast inputs handle incremental encoders directly (no add-on module), and the response for output turn-off is ≤1 µs on Q0–Q3. Accuracy on the fast outputs is ±0.1% from 0.02 to 0.1 kHz and ±1% up to 1 kHz. Built-in dual Ethernet ports (10/100/1000 Mbit/s on port 2) support Sercos, EtherNet/IP, OPC UA server/client, MQTT, and a web server with TLS 1.2/1.3. The RS485 and RS232 serial lines run at 115 kbit/s for legacy fieldbus drops. The controller carries 1 GB flash for user program backup and 32 MB program RAM with another 32 MB for OS/website memory. The realtime clock drifts ≤10 s/month at 25 °C and holds a 1000 h backup at 77 °F.

Rated for TH35-15 or TH35-7.5 rail per IEC 60715, or panel/plate mount with the optional fixing kit. Pollution degree 2 suits control-cabinet environments. Vibration resistance is 3.5 mm at 2–8.4 Hz on rail, 1 gn from 8.4–200 Hz; panel mount sees the same displacement. Shock rated 15 gn for 11 ms. Operating altitude 0–2000 m, storage up to 3000 m. Relative humidity 10–95% non-condensing in both operation and storage.

The part is specified to UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 213, ANSI/ISA 12-12-01, and IEC 61131-2. That covers North American safety listings and hazardous-location approval for Class I Division 2 as per ISA 12-12-01.

Frequently asked questions

What compliance documentation does this controller carry?

It meets UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1/2-201/213, ANSI/ISA 12-12-01, and IEC 61131-2. These cover safe control equipment and Class I Division 2 hazardous locations.

What are the key dimensions for panel layout?

Width 125 mm (4.9 in), height 100 mm (3.9 in), depth 90 mm (3.5 in). Mounts on TH35-15/TH35-7.5 rail or panel with the fixing kit.

How is this controller sourced?

The part is an active, in-production item in the Modicon M262 line. Quoted to order against an RFQ for BOM fill or project build.
