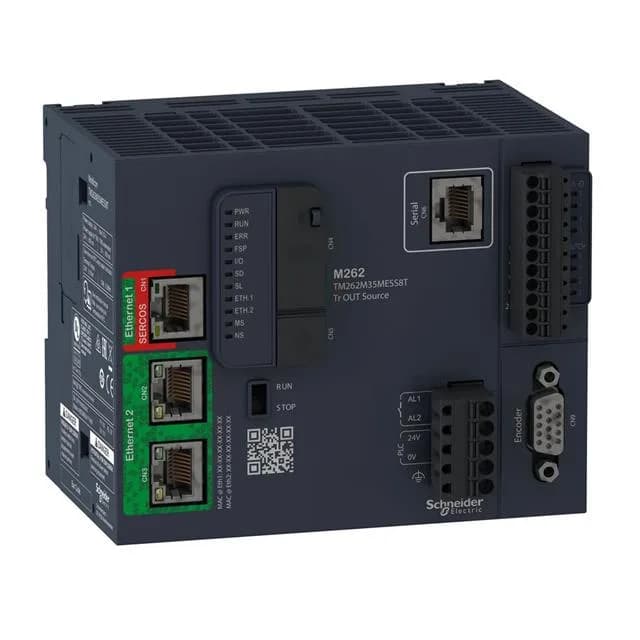

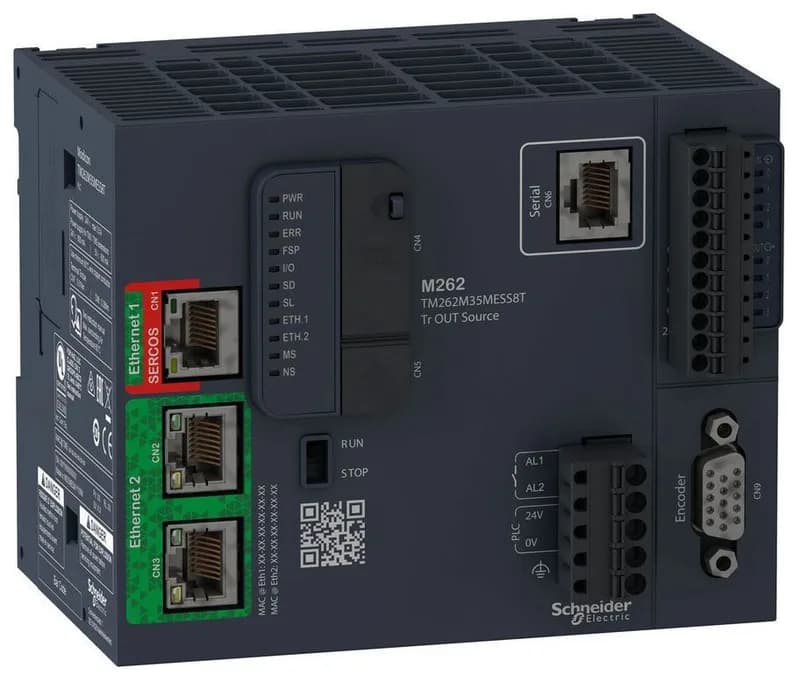

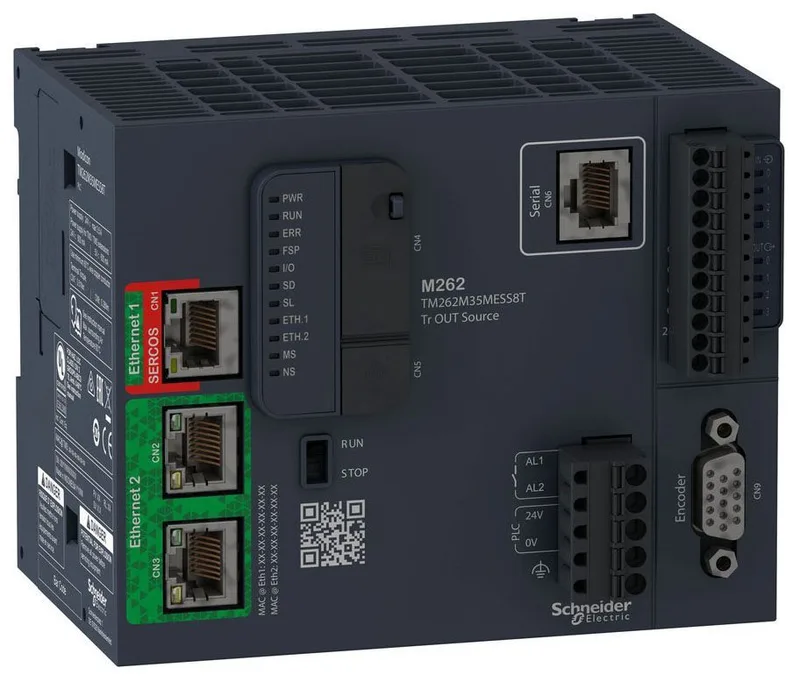

Schneider TM262M35MESS8T Modicon M262 Logic/Motion Controlle

Name: TM262M35MESS8T
Brand: Schneider Electric
SKU: TM262M35MESS8T
Availability: LimitedAvailability
Author: Obsolete Olga

MPNTM262M35MESS8T

Active

Schneider Electric Modicon M262 Logic/Motion Controller, TM262M35MESS8T, 0.5 ms cycle time, 8 discrete I/O, dual Ethernet, OPC UA/MQTT, DIN rail mount, active production.

$1,714.50Ref. price · indicative, final on quote

Request quote

Schneider Electric TM262M35MESS8T datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

TM262M35MESS8T key specifications
Parameter	Value
Encoder type	Incremental encoder
Protection type	Short-circuit and overload protection with automatic reset Reverse polarity protection Short-circuit protection
Range of product	Logic/motion controller - Modicon M262
Discrete output type	Transistor
Product or component type	Motion controller
Integrated connection type	Ethernet/Sercos 1 RJ45 10/100BASE-T Ethernet 2 2 RJ45 100/1000BASE-T Serial link RJ45 RS232/RS485 1 encoder female SUB-D 15 RS422/SSI Smart Communication Bus TM3 IO bus USB type mini B
Discrete input voltage type	DC
Surge withstand	1 kV power lines (DC) common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV relay output differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 1 kV transistor output common mode IEC 61000-4-5
Output voltage limits	30 V DC
Supply voltage limits	20.4...28.8 V DC
Discrete input voltage	24 V
Discrete output voltage	24 V DC

All specifications

TM262M35MESS8T additional specifications
Parameter	Value
Supply voltage	24 V DC - 15...20 %
Voltage state 0 guaranteed	<= 5 V DC
Voltage state 1 guaranteed	>= 15 V DC
Inrush current	40 A
Discrete input current	7.5 mA fast input
Discrete output current	0.5 A fast output Q0...Q3)
Maximum leakage current	10 µA output
Maximum current per output common	0.5 A Q0...Q3 fast output
PLC power consumption	82 W
Maximum output frequency	300 kHz
IP degree of protection	IP20
Communication service	MQTTs OPC UA server (Encrypt) OPC UA client (Encrypt) HTTPs Methods (API) Web server Web visu TLS 1.2 TLS 1.3 SNTP NTP client/server FTP client/server FTPs server SQL client (remote access) DHCP client DHCP server DNS client POP3s client SMTP client SNMP client/server
Communication port protocol	EtherNet/IP adapter EtherNet/IP scanner Modbus TCP client/server Modbus TCP IO scanner Modbus TCP NVL Ethernet RSTP Modbus SL client/server Modbus SL IO scanner Modbus SL modem management Machine Expert ASCII manager ASCII modem management Sercos III master
Mounting support	Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection	removable spring terminal block for inputs and outputs removable spring terminal block for connecting the 24 V DC power supply
Maximum cable distance between devices	Shielded cable Shielded cable Unshielded cable Unshielded cable Shielded cable Shielded cable <49.2 ft (15 m) RS232
Response time	<= 1 µs turn-off, Q0...Q3 fast output
Pollution degree	2
Shock resistance	15 gn 11 ms
Storage altitude	0...9842.5 ft (0...3000 m)
Relative humidity	10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude	0...6561.68 ft (0...2000 m)
Vibration resistance	3.5 mm 2...8.4 Hz symmetrical rail 1 gn 8.4...200 Hz symmetrical rail 3.5 mm 2...8.4 Hz panel mounting 1 gn 8.4...200 Hz panel mounting
Depth	3.5 in (90 mm)
Width	4.9 in (125 mm)
Height	3.9 in (100 mm)
Standards	UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2
Accuracy	+/- 0.1 % 0.02...0.1 kHz fast output +/- 1 % 0.1...1 kHz fast output
Category	US10MSX22534
Cycle time	0.5 ms
Insulation	Between fast input and internal logic 550 V AC Non-insulated between inputs Between output and internal logic 550 V AC Non-insulated between outputs Between input and output 550 V AC Between supply and internal logic 550 V AC Non-insulated between supply and ground
Reset time	200 ms automatic reset fast output
Backup time	1000 h 77 °F (25 °C)
Clock drift	<= 10 s/month 77 °F (25 °C)
Data backed up	1 GB built-in flash memory backup of user programs
Realtime clock	With
Input impedance	2.81 kOhm input
Memory capacity	32 MB program RAM 32 MB OS/website RAM 192 MB system memory RAM
Local signalling	1 LED (green/red) for PWR 1 LED (green/red) for RUN 1 LED (green/red) for ERROR (fault) 1 LED (green/red) for stop forced 1 LED (green/red) for I/O error (I/O) 1 LED (green/orange) for SD card activity 1 LED (green/orange) for SL activity 1 LED (green/red) for ETH1 state 1 LED (green/red) for ETH2 state 1 LED (green/red) for EIP MS 1 LED (green/red) for EIP NS 1 LED (green/red) for Sercos
Transmission rate	115 kbit/s 49.2 ft (15 m) RS485 115 kbit/s 9.8 ft (3 m) RS232 480 Mbit/s 9.8 ft (3 m) USB 10/100 Mbit/s Ethernet1 10/100/1000 Mbit/s Ethernet2
Discrete i (O number)	8
Discrete input logic	Sink
Application structure	8 event tasks 4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 external event tasks
Discrete input number	4, discrete input fast input IEC 61131-2 Type 1
Discrete output logic	Source
Maximum tungsten load	<1.5 W
Positioning functions	Libraries axes coordinated Libraries axes synchronous Sercos 3 motion bus
Upstream connectivity	IIoT-ready machine to cloud Connected machine to plant
Data storage equipment	<= 32 GB SDHC card optional)
Discrete output number	4 transistor fast output
Overvoltage protection	With
Immunity to microbreaks	0.01 ms
Electromagnetic emission	Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBµV/m30...230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions230...1000 MHz IEC 55011
Configurable filtering time	0.001 ms fast input 0.002 ms fast input 0.005 ms fast input 0.01 ms fast input 0.05 ms fast input 0.1 ms fast input 0.5 ms fast input 1 ms fast input 4 ms fast input 12 ms fast input
Resistance to fast transients	2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output)
Execution time for 1 KInstruction	0.003 ms
Ambient air temperature for storage	-40...185 °F (-40...85 °C)
Maximum number of connected devices	EtherNet/IP: 64 Modbus TCP: 64 Modbus TCP/EtherNet/IP: 128
Resistance to conducted disturbances	10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3
Ambient air temperature for operation	-4...140 °F (-20...60 °C) horizontal installation) -4...122 °F (-20...50 °C) vertical installation) -4...113 °F (-20...45 °C) flat mounting)
Resistance to electrostatic discharge	4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2

Product details

Schneider's Modicon M262 (TM262M35MESS8T) is a compact logic/motion controller built for machine builders who need Ethernet/IP and Sercos on one platform. The 0.5 ms cycle time and fast outputs accurate to ±0.1% up to 100 Hz handle single-axis servo loops with enough headroom for auxiliary sequencing. Program memory sits at 32 MB, with 192 MB system RAM for data logging or web server content.

Cycle time of 0.5 ms across all tasks — four cyclic master tasks plus eight event tasks — means the controller can interleave motion and HMI updates without jitter. Accuracy of ±0.1% on the fast outputs (0.02…0.1 kHz) and ±1% up to 1 kHz defines the positioning repeatability you can expect from the transistor outputs; if your application demands sub‑millimeter repeatability on a belt-driven axis, that spec is the limiting factor, not the servo drive. The dual Ethernet ports — one 10/100 Mbit/s and one 10/100/1000 Mbit/s — let you separate device-level EtherNet/IP from a controller-level gigabit backbone for vision or data logging. Protocol stack includes OPC UA server/client, MQTT, HTTPs, and a built‑in web server with WebVisu; no separate gateway needed for IIoT connectivity. With 4 sink inputs (IEC 61131‑2 Type 1) and 4 source transistor outputs, the 8‑point I/O bank is sized for small‑cell control — a pick‑and‑place station or a packaging module. For larger I/O, the M262 family scales via the backplane or remote drops over EtherNet/IP.

Where this controller belongs in a panel

The M262 mounts on DIN rail; footprint 125 x 100 x 90 mm. Uses removable spring terminal blocks for I/O and 24 V DC. Supports 8 discrete I/O. Shock resistance 15 gn at 11 ms and vibration tolerance to 3.5 mm / 1 gn (panel mounting) suit the controller for installation on a machine frame or near a press — not just in a climate‑controlled cabinet.
