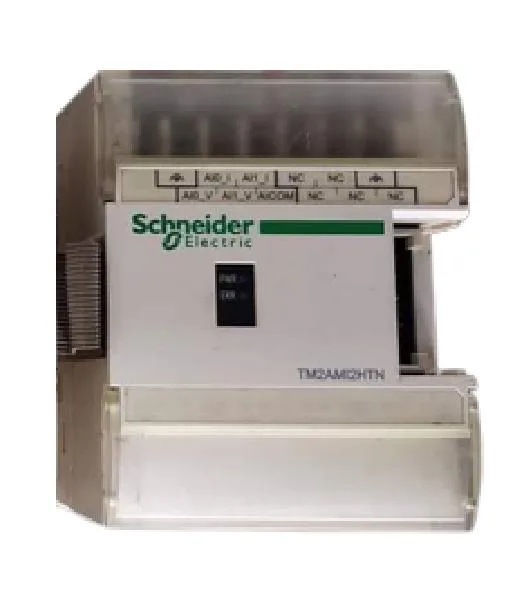

Schneider TM2AMI2HTN Analog Input Module, Obsolete

MPNTM2AMI2HTN

Obsolete

Schneider TM2AMI2HTN, 2-channel analog input module for Modicon M238, 12-bit resolution, 4-20 mA / 0-10 V, 23.5 x 90 x 70 mm, obsolete.

$696.23Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TM2AMI2HTN key specifications
Parameter	Value
Type of cable	Shielded cable
Range of product	Modicon M238 logic controller
Analogue input type	current 4...20 mA non differential voltage 0...10 V non differential
Product or component type	Analog input module
Supply voltage limits	20.4...28.8 V
Supply voltage	24 V DC
Current consumption	40 mA at 24 V DC external 50 mA at 5 V DC internal
Electrical connection	1 removable screw terminal block
Depth	70 mm
Width	23.5 mm
Height	90 mm
Supply	External supply

All specifications

TM2AMI2HTN additional specifications
Parameter	Value
LSB value	2.5 mV voltage voltage 4.8 µA current current
Cross talk	<= 2 LSB
Input level	High level
Total error	+/-1 %FS
Non-linearity	+/- 0.2 %FS
Input impedance	10 Ohm current >= 1 MOhm voltage
Repeat accuracy	+/-0.5 %FS
Measurement error	+/- 0.2 % of full scale at 25 °C
Sampling duration	10 ms
Acquisition period	10 ms per channel + 1 controller cycle time
Dielectric strength	500 V between the I/O and internal logic 500 V between the I/O and the external supply circuit
Analogue input number	2
Temperature coefficient	+/-0.006 %FS/°C
Analogue input resolution	12 bits
Permissible continuous overload	13 V, analogue input type: voltage 40 mA, analogue input type: current
Insulation between channel and internal logic	Photocoupler

Product details

Electrical and integration notes

Requires an external 24 V DC supply (20.4...28.8 V). Draws 40 mA at 24 V DC external plus 50 mA at 5 V DC from the backplane. Each channel samples every 10 ms plus one controller cycle time. Input impedance: 10 Ω for current mode, ≥1 MΩ for voltage. Dielectric strength 500 V between I/O and logic circuits; photocoupler isolation. Wiring via a single removable screw terminal block. Use shielded cable for best noise immunity. Overload rating: 13 V for voltage inputs, 40 mA for current inputs.
