The TM2AVO2HT is a 2-channel analog voltage output module for the Modicon M238 logic controller, delivering ±10 V outputs with 11-bit plus sign resolution. Each channel carries a total error of +/-1 %FS and a repeat accuracy of +/-0.1 %FS. The module requires an external 24 V DC supply (19.2...30 V range) in addition to 5 V DC from the backplane, drawing 60 mA on each rail. Output ripple is held to ≤1 LSB, and conversion time is 2 ms plus one controller cycle. Insulation between I/O and internal logic uses a photocoupler rated at 2500 V dielectric strength.
TM2AVO2HT Analog Output Module, 2 Ch ±10V, Obsolete
MPNTM2AVO2HT
Obsolete

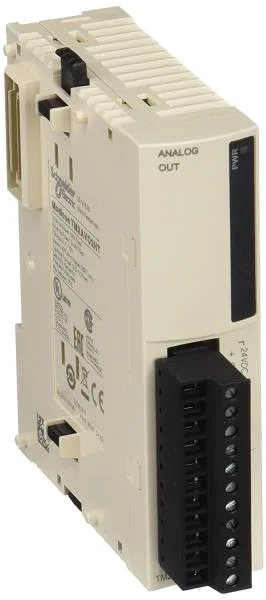

Schneider Electric / Modicon TM2AVO2HT, Analog Output Module for M238, 2 channels ±10 V, 11-bit + sign resolution, external 24 V DC supply.
$276.00 – $605.33Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Load type | Resistive |
| Type of cable | Twisted shielded cable |
| Range of product | Modicon M238 logic controller |
| Analogue output type | Voltage +/- 10 V |
| Product or component type | Analog output module |
| Supply voltage limits | 19.2...30 V |
| Supply voltage | 24 V DC |
| Current consumption | 60 mA 5 V DC internal 60 mA 24 V DC external |
| Electrical connection | 1 removable screw terminal block |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.5 mm) |
| Height | 3.5 in (90 mm) |
All specifications
| Parameter | Value |
|---|---|
| Supply | External supply |
| Category | 22531-PLCS, TWIDO, TWD |
| LSB value | +/- 9.8 mV voltage |
| Total error | +/-1 %FS |
| Non-linearity | +/- 0.2 %FS |
| Output ripple | <= 1 LSB |
| Conversion time | 2 ms + 1 controller cycle time |
| Repeat accuracy | +/-0.1 %FS |
| Measurement error | +/- 0.5 % of full scale 25 °C |
| Stabilisation time | 2 ms |
| Dielectric strength | 2500 V between the I/O and internal logic |
| Load impedance ohmic | <= 3000 Ohm voltage |
| Analogue output number | 2 |
| Temperature coefficient | +/-0.01 %FS/°C |
| Analogue output resolution | 11 bits + sign |
| Insulation between channel and internal logic | Photocoupler |
Product details
Frequently asked questions
What are the key electrical ratings of the TM2AVO2HT?
Two analog voltage outputs ±10 V, 11-bit plus sign resolution, total error +/-1%FS, repeat accuracy +/-0.1%FS, output ripple ≤1 LSB, conversion time 2 ms + 1 cycle.
What supply voltages does the TM2AVO2HT require?
It draws 60 mA from the 5 V DC backplane of the M238 and requires an external 24 V DC supply (19.2...30 V) drawing an additional 60 mA.
