Overview

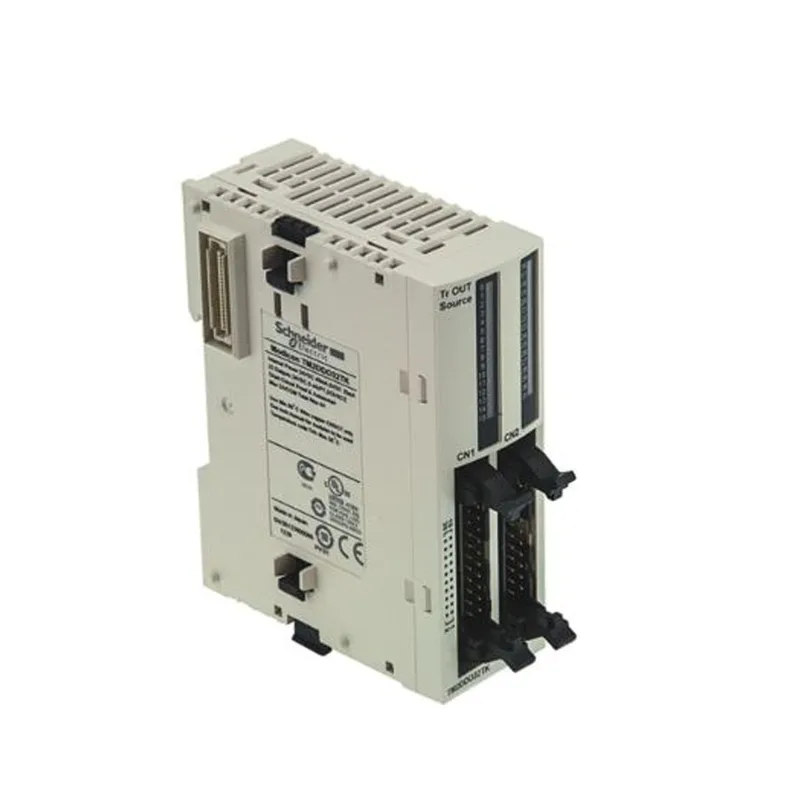

The TM2DDO32TK is a Schneider Modicon M238 discrete output module, order code TM2DDO32TK, providing 32 transistor source outputs at 0.4 A per channel, 24 V DC. The module mounts on DIN rail and connects via a single HE10 connector.
Applications
As a PLC expansion module, the TM2DDO32TK adds high-density transistor outputs to Modicon M238 controllers for controlling solenoid valves, indicator lamps, and small motor contactors in packaging, material handling, and light industrial automation.
The 32 transistor source outputs switch up to 0.4 A each, suitable for driving multiple low-power DC loads from a single module. Built-in overload and short-circuit protection with automatic reactivation reduces downtime by restoring output after a fault clears. A response time of 450 ms ensures the module handles non-time-critical discrete signals without overloading the controller's scan cycle.
Lifecycle
The TM2DDO32TK was discontinued by Schneider on 2017-10-27.
