Schneider Electric TM2DRA8RT

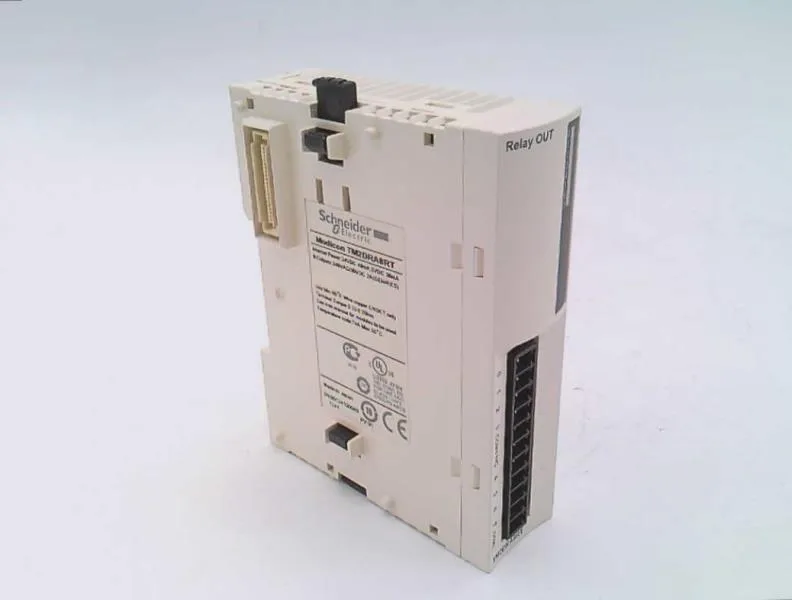

Schneider TM2DRA8RT Modicon M238 8-Relay Output Module

MPNTM2DRA8RT
Obsolete

Schneider TM2DRA8RT Plc Expansion Modules — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$138.00Ref. price · indicative, final on quote
Schneider Electric TM2DRA8RT datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TM2DRA8RT key specifications
ParameterValue
Range of productModicon M238 logic controller
Discrete output typeRelay
Product or component typeI/O expansion module
Current consumption30 mA 5 V DC at state 1 for all output 40 mA 24 V DC at state 1 for all output
Current per channel2 A
Minimum switching current0.1 mA 0.1 V DC
Maximum current per output common7 A
Mounting support35 mm symmetrical DIN rail
Electrical connection1 removable screw terminal block
Response time<= 5 ms from state 1 to state 0 input
Depth3.3 in (84.6 mm)
Width1.07 in (27.3 mm)

All specifications

TM2DRA8RT additional specifications
ParameterValue
Height3.5 in (90 mm)
Electrical durability100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive
Mechanical durability20000000 cycles
CategoryUS1PC1222531
Local signalling1 display block
Contact resistance45 mOhm
Discrete output number8
Number of common point2
Discrete output function1 NO
Isolation between channels1500 V for 1 minute
Isolation between output channels group1500 V for 1 minute
Isolation between channels and internal logic2300 V for 1 minute

Product details

Overview

The TM2DRA8RT is a Schneider Modicon M238 logic controller I/O expansion module, order code TM2DRA8RT, providing 8 relay outputs rated at 2 A switching current with a 5 ms response time.

Each of the 8 discrete outputs is a single-pole normally-open (1 NO) relay contact, capable of switching up to 2 A at 240 V AC resistive or 30 V DC resistive. The 5 ms response time suits general-purpose on/off control of solenoids, contactors, and indicator lamps where sub-cycle switching is not required. Two common points group the outputs into two isolated banks, allowing separate load circuits or supply voltages per bank.

Applications

As a PLC expansion module in the Modicon M238 family, the TM2DRA8RT adds relay output capacity to compact machine controllers used in packaging, material handling, conveyor systems, and small OEM machinery. The relay outputs are well suited for switching AC loads such as motor starters, valves, and pilot lights where galvanic isolation between the controller and field wiring is beneficial.

MPN
TM2DRA8RT
