The TM3AI8G is an 8-channel analog input module in the Modicon TM3 I/O family, handling current (0–20 mA or 4–20 mA) and voltage (0–10 V or ±10 V) with 12-bit resolution, ≥1 MΩ impedance, and 1 ms conversion time per channel. Connection is via a 10-way removable spring terminal block with 3.81 mm pitch, accepting up to 1.5 mm² wire; the module mounts on a DIN rail and occupies 23.6 mm width. Typical current draw is 40 mA from 24 V DC at full load.

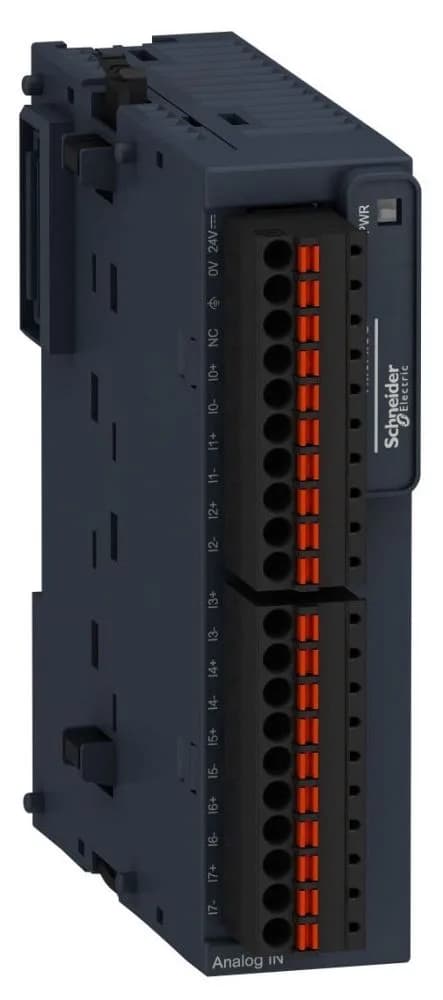

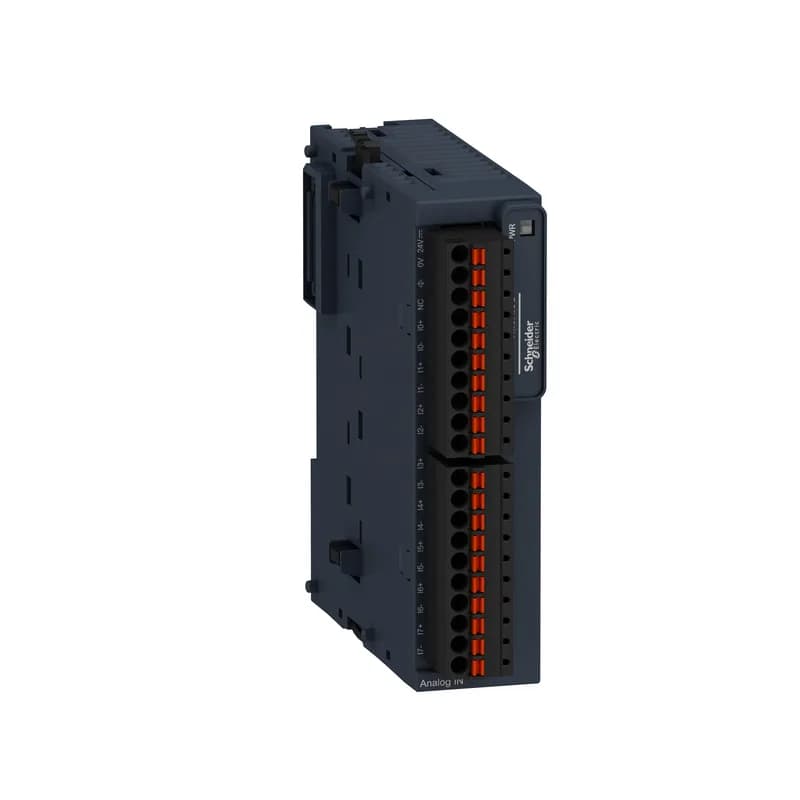

Schneider TM3AI8G Analog Input Module, 8 ch, 12-bit, IP20
MPNTM3AI8G
Obsolete
Analog Input Module, Modicon TM3, 8 inputs, current 4...20 mA 0...20 mA / voltage 0...10 V -10...10 V, 12-bit resolution, spring terminal, IP20.
$147.32 – $362.08Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Range of product | Modicon TM3 |
| Analogue input type | Current 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V |
| Product or component type | Analog input module |
| Typical current consumption | 40 mA 5 V DC full load 35 mA 5 V DC no load 30 mA 24 V DC no load 40 mA 24 V DC full load |
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 10...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | 3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Height | 3.5 in (90 mm) |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US10MSX22533 |
| LSB value | 2.44 mV, 0...10 V 4.88 mV, - 10...10 V 4.88 µA, 0...20 mA 3.91 µA, 4...20 mA |
| Cross talk | <= 1 LSB |
| Insulation | Between input and supply 1500 V AC Between input and internal logic 500 V AC |
| Non-linearity | +/- 0.2 %FS |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Input impedance | >= 1 MOhm |
| Repeat accuracy | +/-0.5 %FS |
| Local signalling | 1 LED green PWR |
| Sampling duration | 1 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Analogue input number | 8 |
| Absolute accuracy error | +/- 1 % of full scale +/- 0.2 % of full scale at 77 °F (25 °C) |
| Immunity to microbreaks | 10 ms |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011 |
| Analogue input resolution | 12 bits 11 bits + sign |
| Permissible continuous overload | 13 V voltage 40 mA current |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation) |
Product details
Frequently asked questions
What compliance documentation does the TM3AI8G carry?
The module is CE marked, designed to IEC 61131-2, and complies with IEC 55011 for radiated emissions (Class A at 10 m).
