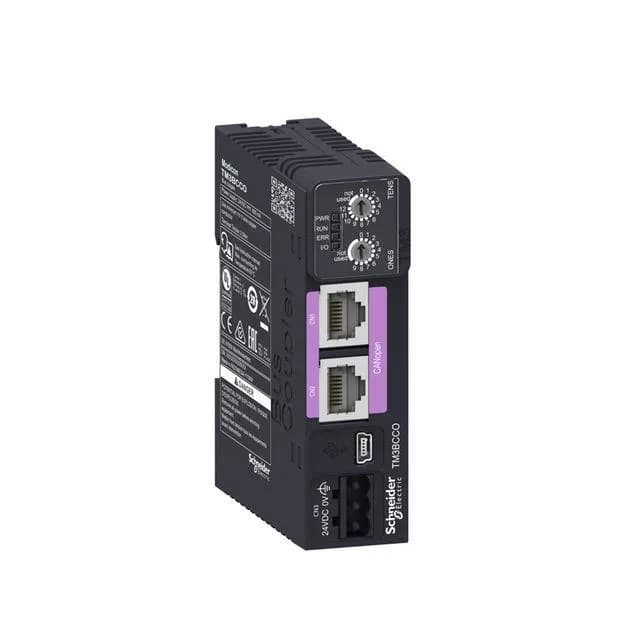

Schneider Electric TM3BCCO

Schneider TM3BCCO CANopen I/O Module, IP20

MPNTM3BCCO
Active

Schneider TM3BCCO, a CANopen I/O distributed module for the Modicon TM3 family. Operates as a CANopen slave on a daisy-chain topology, drawing 0.8 A from the 24 V DC internal bus. Supports up to 7 additional expansion modules.

$484.80Ref. price · indicative, final on quote
Schneider Electric TM3BCCO datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3BCCO key specifications
ParameterValue
Range of productModicon TM3
Product or component typeI/O distributed module
Communication network typeCANopen
Current consumption0.8 A 24 V DC internal supply maximum 7 expansion modules
IP degree of protectionIP20
Communication serviceCANopen slave device profile
Communication port protocolCANopen
Pollution degree2
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3M4 on 35 mm DIN rail
Depth2.8 in (70 mm)
Width1.06 in (27 mm)

All specifications

TM3BCCO additional specifications
ParameterValue
Height3.8 in (96.5 mm)
StandardsIEC 61131-2 UL/CSA 61010-1 UL/CSA 61010-2-201
CategoryUS10MSX22533
TopologyDaisy chain
Fixing modeBy clipping locks (rail) By screws (mounting plate)
Web servicesWeb server, USB
Local signalling1 LED green/red PWR (System Status) 1 LED green/red RUN (Run) 1 LED green/red ERR (Error) 1 LED green/red I/O status
Transmission rate20 kbit/s...1 Mbit/s
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...140 °F (-10...60 °C)

Product details

What It Is and How It Communicates

The TM3BCCO: CANopen I/O distributed module for the Modicon TM3 family. Operates as a CANopen slave with selectable transmission rates from 20 kbit/s to 1 Mbit/s. Powered from the 24 V DC backplane, drawing 0.8 A; the internal bus can supply up to 7 additional expansion modules. Daisy-chain topology simplifies wiring in distributed I/O layouts.

IP20 degree of protection, suitable for clean, enclosed control cabinets. Ambient operating temperature range -10 to 60 °C, storage -25 to 70 °C. Pollution degree 2; safe for use up to an altitude of 2000 m.

Certified to IEC 61131-2, UL/CSA 61010-1, and UL/CSA 61010-2-201. Compliance documentation available upon RFQ.

Frequently asked questions

What compliance certifications does the TM3BCCO carry?

The module is certified to IEC 61131-2, UL/CSA 61010-1, and UL/CSA 61010-2-201.

What are the physical dimensions of the TM3BCCO?

Width 1.06 in (27 mm), height 3.8 in (96.5 mm), depth 2.8 in (70 mm).
