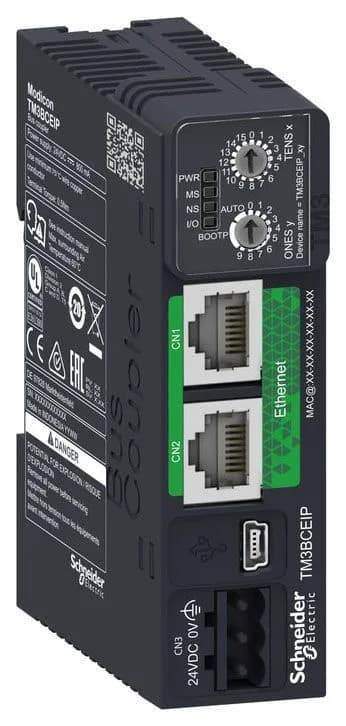

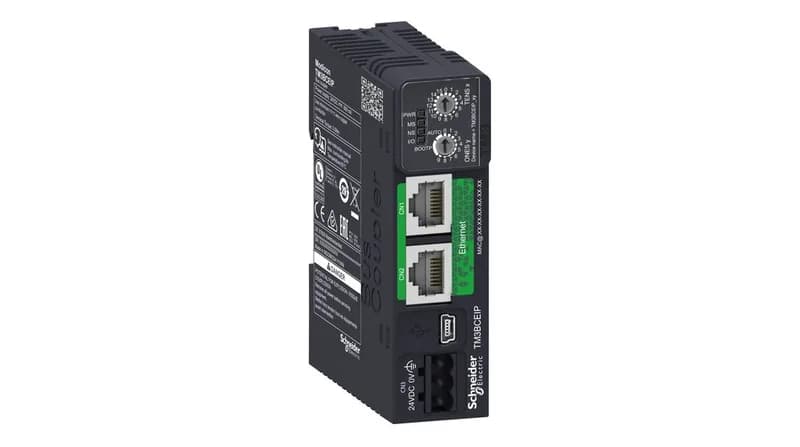

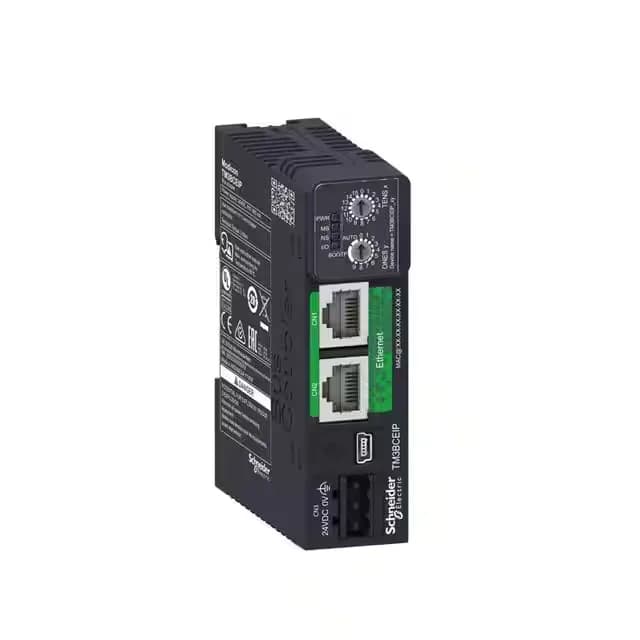

TM3BCEIP - Schneider Electric
MPNTM3BCEIP
Active
I/O DISTRIBUTED MODULE, MODICON
$116.84Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Connector type | RJ45 Mini USB port |
| Range of product | Modicon TM3 |
| Product or component type | I/O distributed module |
| Communication network type | Ethernet IP Modbus TCP IPv4 (internet protocol) |
| Current consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| IP degree of protection | IP20 |
| Communication service | Ethernet/IP adapter Modbus TCP/IP server RSTP (Ring topology support) SNMP Web server DHCP client BOOTP Address conflict detection FTP server |
| Communication port protocol | Ethernet IP/Modbus TCP |
| Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3M4 on 35 mm DIN rail |
| Depth | 2.8 in (70 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 1.06 in (27 mm) |
| Height | 3.8 in (96.5 mm) |
| Standards | IEC 61131-2 UL/CSA 61010-1 UL/CSA 61010-2-201 |
| Category | US10MSX22533 |
| Topology | Daisy chain |
| Fixing mode | By clipping locks (rail) By screws (mounting plate) |
| Web services | Web server, Ethernet Web server, USB |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Port ethernet | 10/100BASE-T |
| Local signalling | 1 LED green/red PWR (System Status) 1 LED green/red MS (Module Status) 1 LED green/red NS (Network Status) 1 LED green/red I/O status |
| Transmission rate | 10/100 Mbit/s |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...140 °F (-10...60 °C) |
MPN
TM3BCEIP
