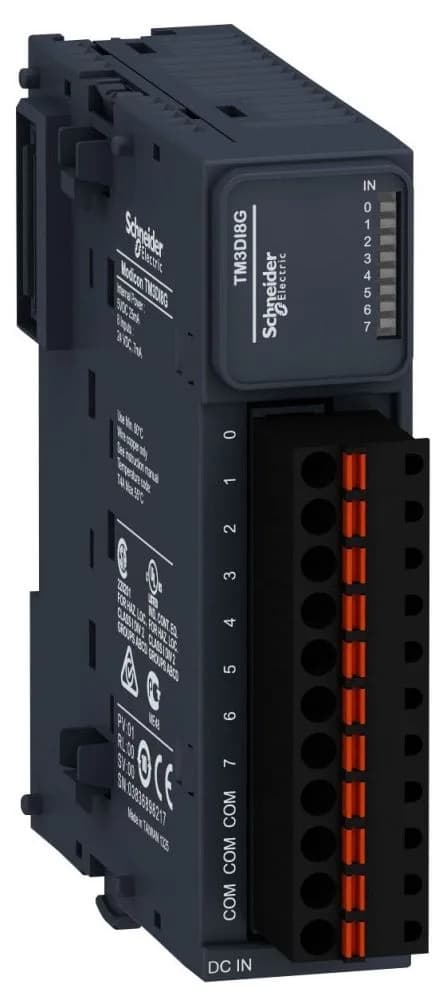

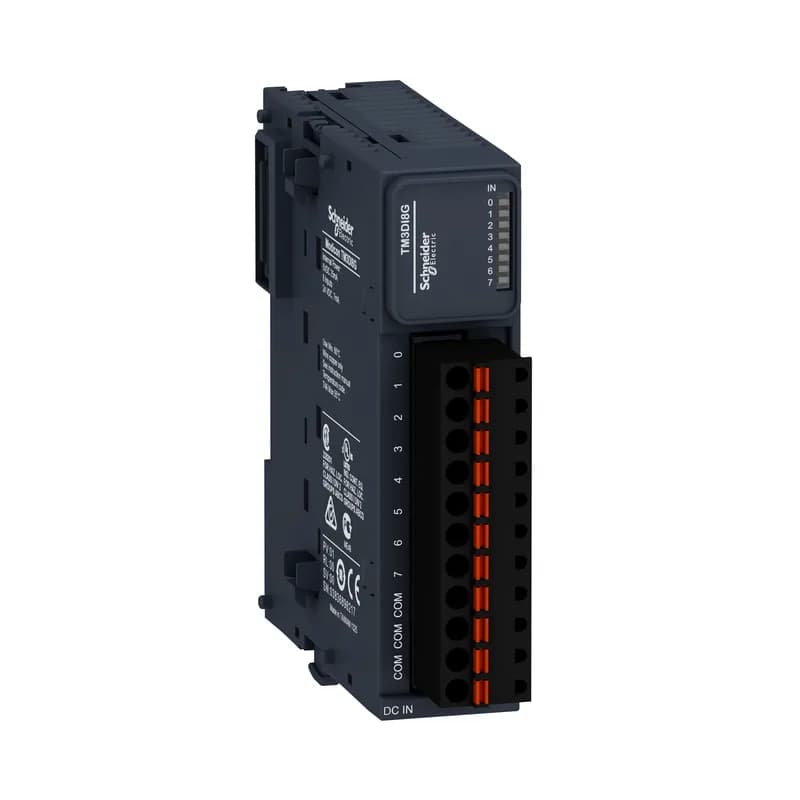

Schneider TM3DI8G Modicon TM3 Discrete Input Module, 8DI 24V

MPNTM3DI8G
Active

Schneider Modicon TM3, discrete input module, 8 inputs, 24 V DC, sink/source, Type 1, 4 ms response, IP20, grey.

$46.51Ref. price · indicative, final on quote
Schneider Electric TM3DI8G datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TM3DI8G key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete input module
Discrete input voltage24 V DC
Voltage state 0 guaranteed0...5 V input
Voltage state 1 guaranteedInput 15...28.8 V DC
Discrete input current7 mA
Current state 0 guaranteed<= 1 mA input
Current state 1 guaranteed>= 2.5 mA input
Typical current consumption22 mA 5 V DC 5 mA
Sensor power supply19.2...28.8 V
IP degree of protectionIP20

All specifications

TM3DI8G additional specifications
ParameterValue
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs
Maximum cable distance between devicesUnshielded cable <98.4 ft (30 m) regular input
Response time on input4 ms (maximum (turn on)) 4 ms (maximum (turn off))
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.3 in (84.6 mm)
Width1.08 in (27.4 mm)
Height3.5 in (90 mm)
Housing colourGrey
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
AWG gauge0.0003...0.004 in² (0.2...2.5 mm²) / AWG 24...AWG 14 with solid cable
Input impedance3.4 kOhm
Local signalling1 LED per channel (green) for input status
Device applicationIndustrial Application
Discrete input logicSink or source (positive/negative)
Discrete input number8 conforming to IEC 61131-2 Type 1
Safety reliability dataMTBF = 410 years 40 °C
Isolation between channels and bus500 V AC
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

Schneider's TM3DI8G is an 8-channel 24 V DC discrete input module for the Modicon TM3 I/O family. Each input accepts sink or source (positive/negative) logic, configurable per channel group. Rated as IEC 61131-2 Type 1, it guarantees a 0-state below 5 V and ≤1 mA, and a 1-state at ≥15 V with ≥2.5 mA. Maximum turn-on and turn-off time is 4 ms — fast enough for most discrete sensing on a medium-speed PLC scan.

Rated IP20 for finger-safe wiring. Operates 0…2000 m altitude, -10…55 °C (horizontal mount) or -10…35 °C (vertical). Input-to-bus isolation rated at 500 V AC. CE marked and designed to IEC 61131-2. MTBF of 410 years at 40 °C.
