Schneider Electric TM3DM24R

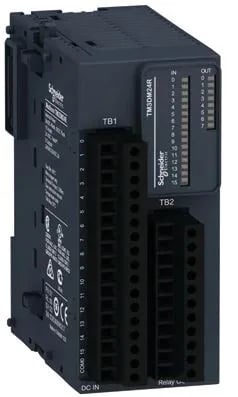

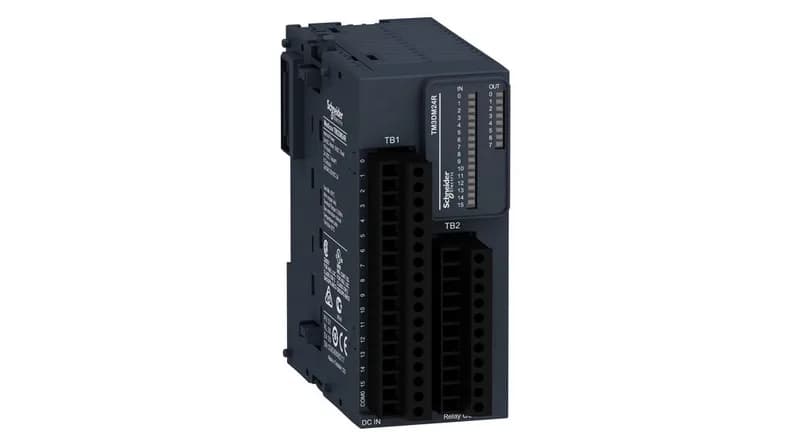

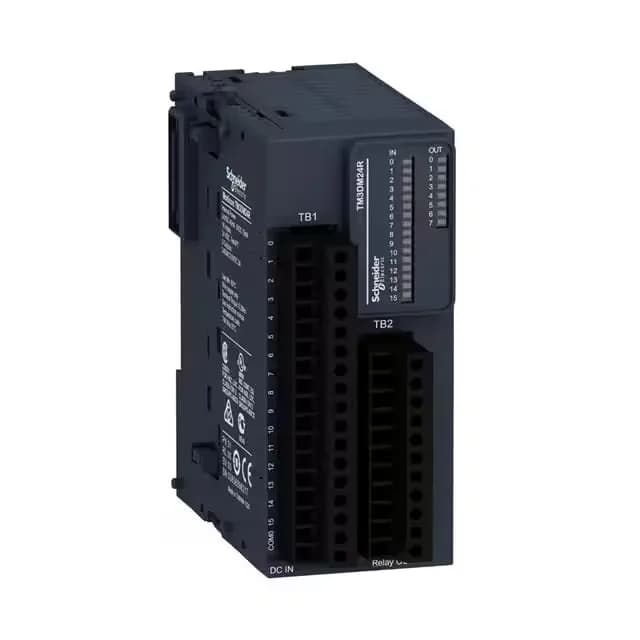

TM3DM24R Modicon TM3 16DI/8 Relay Out

MPNTM3DM24R
Active

Schneider Electric Modicon TM3, discrete I/O module TM3DM24R, 16 inputs 7 mA, 8 relay outputs 2 A, 3.3 in depth, IP20, CE.

$177.80 – $301.48Ref. price · indicative, final on quote
Schneider Electric TM3DM24R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3DM24R key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete I/O module
Discrete output voltage24 V DCrelay outputs 240 V ACrelay outputs
Voltage state 0 guaranteed0...5 V input
Voltage state 1 guaranteedInput 15...28.8 V DC
Discrete input current7 mA
Discrete output current2000 mA relay output
Minimum switching current10 mA 5 V DC
Current state 0 guaranteed<= 1 mA input
Current state 1 guaranteed>= 2.5 mA input
Typical current consumption5 mA 5 V DC 0 mA 24 V DC 65 mA 5 V DC

All specifications

TM3DM24R additional specifications
ParameterValue
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection17 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs
Maximum cable distance between devicesUnshielded cable <98.4 ft (30 m) regular input
Response time on input4 ms (maximum (turn on)) 4 ms (maximum (turn off))
Response time on output<= 5 ms maximum (turn off)
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.3 in (84.6 mm)
Width1.7 in (42.9 mm)
Height3.5 in (90 mm)
Housing colourGrey
Mechanical durability20000000 cycles
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
AWG gauge0.0003...0.002 in² (0.2...1.5 mm²) / AWG 26...AWG 16 with solid cable
Input impedance3.4 kOhm
Local signalling1 LED per channel (green) for I/O state
Device applicationIndustrial Application
Discrete input logicSink or source (positive/negative)
Discrete input number16 conforming to IEC 61131-2 Type 1
Discrete output logicPositive or negative
Discrete output number8 relay normally open
Safety reliability dataMTBF = 130 years 40 °C
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

I/O and Logic

The TM3DM24R is a discrete I/O module for the Modicon TM3 platform, with 16 digital inputs (sink/source, 7 mA at 24 V DC) and 8 relay outputs rated at 2 A per channel (24 V DC or 240 V AC). Input impedance is 3.4 kOhm; response time is 4 ms max on both turn-on and turn-off. Output off response is ≤5 ms. Minimum switching current is 10 mA at 5 V DC, so low-level signals are handled cleanly.

Mounts on top hat rail TH35-15 or TH35-7.5 per IEC 60715, or on a panel with the fixing kit. IP20 enclosure. Vibration resistance is 3.5 mm at 5–8.4 Hz (3 g at 8.4–150 Hz) on DIN rail; shock resistance 15 g, 11 ms. Operating altitude up to 2,000 m, humidity 10–95% non-condensing. Pollution degree 2. All connections via removable screw terminal blocks (3.81 mm pitch) – 17 positions for inputs, 11 for outputs.

Frequently asked questions

What mounting options and environmental ratings does the TM3DM24R have?

Mounts on TH35-15 or TH35-7.5 DIN rail, or panel with kit. IP20, vibration 3.5 mm at 5–8.4 Hz / 3 g at 8.4–150 Hz, shock 15 g, altitude 2,000 m, humidity 10–95% non-condensing.

What compliance documentation does the TM3DM24R carry?

CE marked and designed to IEC 61131-2. The module also carries standard industrial approvals for industrial application.

MPN
TM3DM24R
