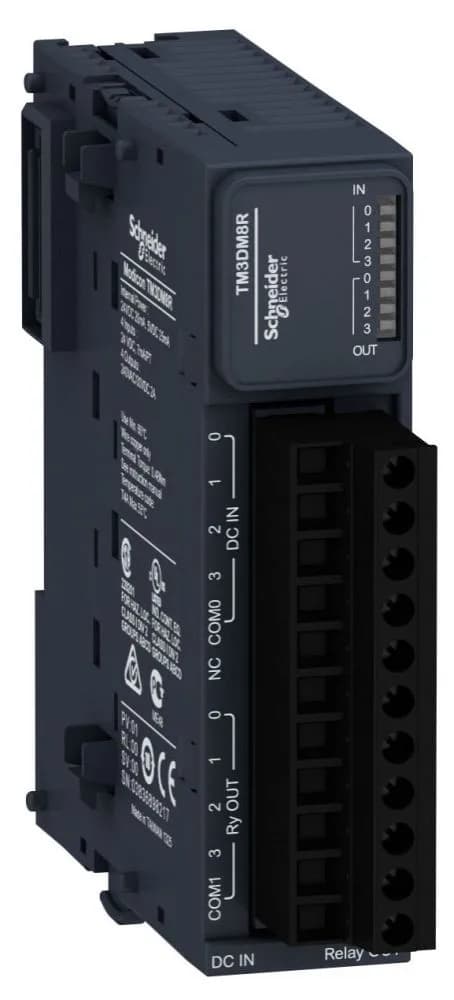

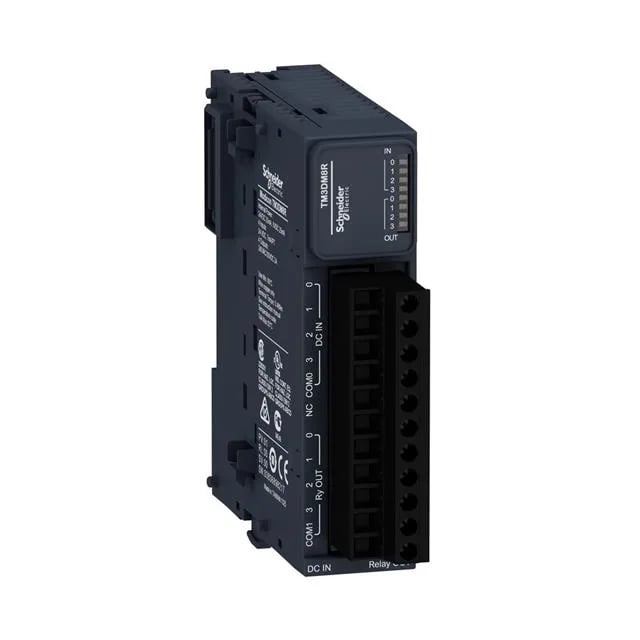

TM3DM8R - Schneider Electric
MPNTM3DM8R
Active
DISCRETE I/O MODULE, MODICON TM3
$90.17 – $165.14Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon TM3 |
| Power supply type | Electronic powered by internal bus |
| Product or component type | Discrete I/O module |
| Discrete output voltage | 24 V ACrelay outputs 240 V DCrelay outputs |
| Voltage state 0 guaranteed | 0...5 V input |
| Voltage state 1 guaranteed | Input 15...28.8 V DC |
| Discrete input current | 7 mA |
| Discrete output current | 2000 mA relay output |
| Minimum switching current | 10 mA 5 V DC |
| Current state 0 guaranteed | <= 1 mA input |
| Current state 1 guaranteed | >= 2.5 mA input |
| Typical current consumption | 5 mA 5 V DC 0 mA 24 V DC 65 mA 5 V DC |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) regular input |
| Response time on input | 4 ms (maximum (turn on)) 4 ms (maximum (turn off)) |
| Response time on output | <= 5 ms maximum (turn off) |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 10...95 % without condensation for operation 10...95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Height | 3.5 in (90 mm) |
| Housing colour | Grey |
| Mechanical durability | 20000000 cycles |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US10MSX22533 |
| AWG gauge | 0.0003...0.004 in² (0.2...2.5 mm²) / AWG 24...AWG 14 with solid cable |
| Input impedance | 3.4 kOhm |
| Local signalling | 1 LED per channel (green) for I/O state |
| Device application | Industrial Application |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input number | 4 conforming to IEC 61131-2 Type 1 |
| Discrete output logic | Positive or negative |
| Discrete output number | 4 relay normally open |
| Safety reliability data | MTBF = 310 years 40 °C |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation) |
