Schneider Electric TM3DM8RG

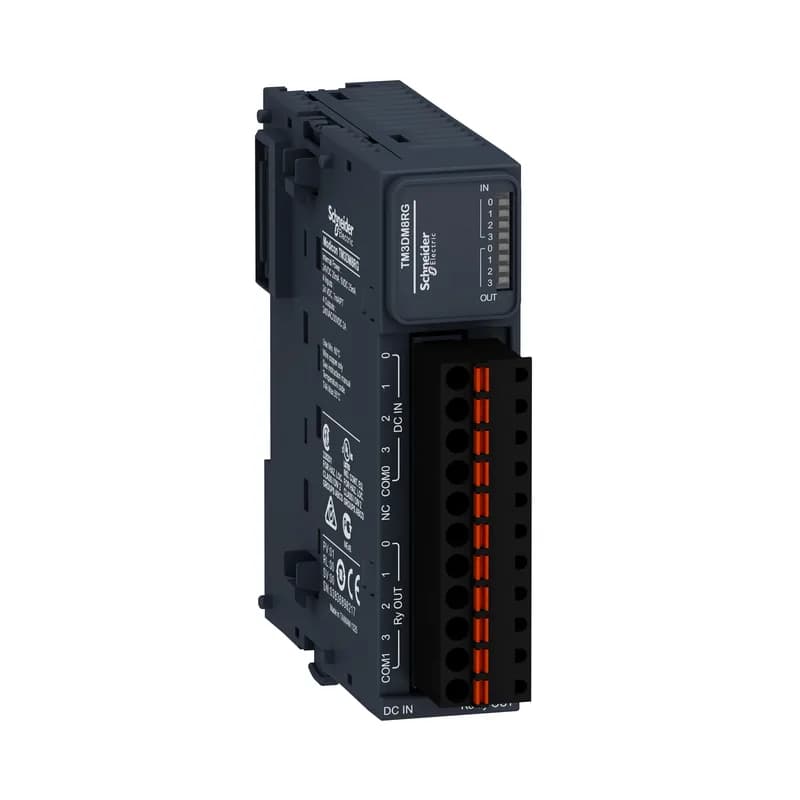

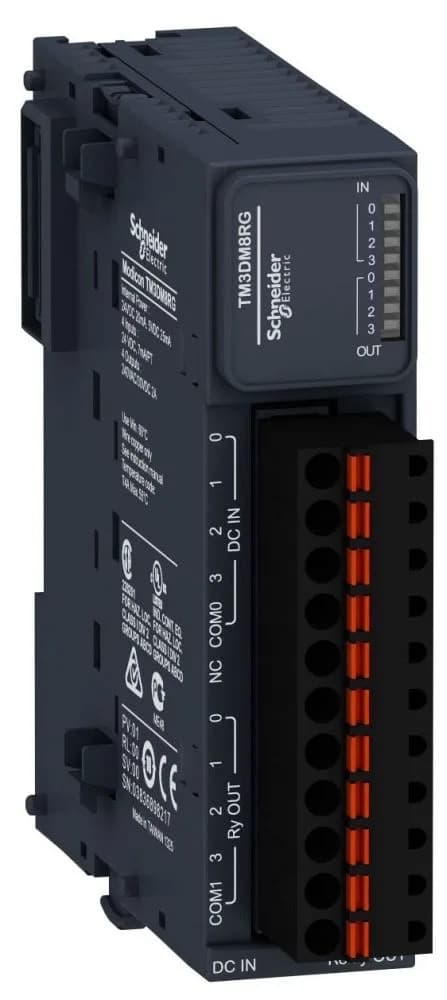

Schneider TM3DM8RG Modicon TM3 Discrete I/O Module, 4DI 4DO

MPNTM3DM8RG
Active

Schneider Modicon TM3 discrete I/O module, 4 inputs 4 relay outputs, 27.4 mm wide, spring terminal, internal bus powered.

$90.17 – $181.80Ref. price · indicative, final on quote
Schneider Electric TM3DM8RG datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3DM8RG key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete I/O module
Discrete output voltage24 V ACrelay outputs 240 V DCrelay outputs
Voltage state 0 guaranteed0...5 V input
Voltage state 1 guaranteedInput 15...28.8 V DC
Discrete input current7 mA
Discrete output current2000 mA relay output
Minimum switching current10 mA 5 V DC
Current state 0 guaranteed<= 1 mA input
Current state 1 guaranteed>= 2.5 mA input
Typical current consumption5 mA 5 V DC 0 mA 24 V DC 65 mA 5 V DC

All specifications

TM3DM8RG additional specifications
ParameterValue
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs and outputs
Maximum cable distance between devicesUnshielded cable <98.4 ft (30 m) regular input
Response time on input4 ms (maximum (turn on)) 4 ms (maximum (turn off))
Response time on output<= 5 ms maximum (turn off)
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.3 in (84.6 mm)
Width1.08 in (27.4 mm)
Height3.5 in (90 mm)
Housing colourGrey
Mechanical durability20000000 cycles
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
AWG gauge0.0003...0.004 in² (0.2...2.5 mm²) / AWG 24...AWG 14 with solid cable
Input impedance3.4 kOhm
Local signalling1 LED per channel (green) for I/O state
Device applicationIndustrial Application
Discrete input logicSink or source (positive/negative)
Discrete input number4 conforming to IEC 61131-2 Type 1
Discrete output logicPositive or negative
Discrete output number4 relay normally open
Safety reliability dataMTBF = 310 years 40 °C
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

The TM3DM8RG is a 4-input/4-relay-output discrete I/O module in the Modicon TM3 compact range. Though powered from the internal backplane bus, it handles sink or source wiring on the input side and provides relay outputs rated 2 A for 24 V AC or 240 V DC loads. Its 27.4 mm width (1.08 in) and spring-cage terminals with 5.08 mm pitch save DIN rail space and reduce wiring time on a panel line.

Input & output thresholds

Input state threshold: voltage below 5 V guarantees state 0; above 15 V guarantees state 1. Input current at state 1 is 7 mA typical. On the output side, the relay contacts require a minimum of 10 mA at 5 V DC to keep the contact film pierced—something to watch when switching dry contacts or low-power indicators.

The module mounts on TH35-15 or TH35-7.5 DIN rail (IEC 60715) or panel with fixing kit, uses a spring terminal block accepting 0.2–2.5 mm² (AWG 24–14) solid or stranded wire, and is IP20 rated for pollution degree 2.

Frequently asked questions

What compliance documentation does this module have?

CE marked and designed to IEC 61131-2.

What are the width and depth for panel layout?

Width 27.4 mm (1.08 in), depth 84.6 mm (3.3 in).

MPN
TM3DM8RG
