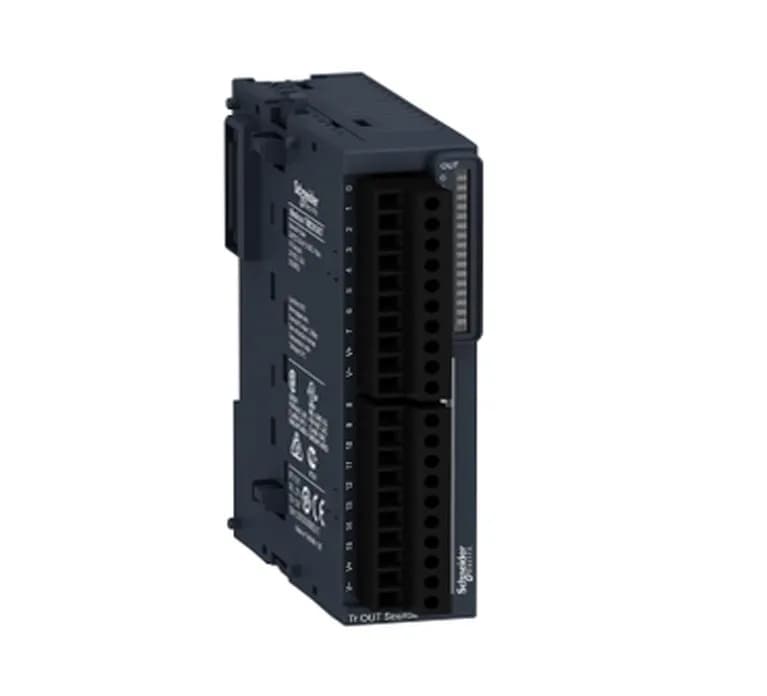

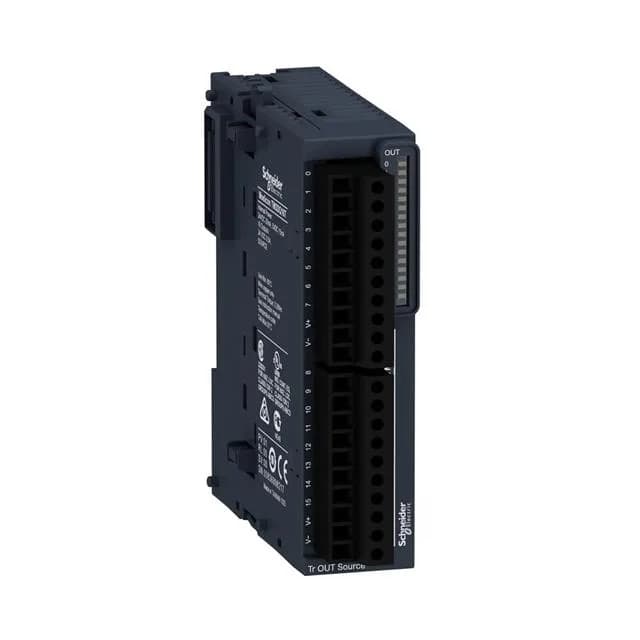

Schneider Electric TM3DQ16T
MPNTM3DQ16T
Active
DISCRETE OUTPUT MODULE, MODICON
$67.08Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon TM3 |
| Power supply type | Electronic powered by internal bus |
| Product or component type | Discrete output module |
| Maximum voltage drop | <0.4 V |
| Discrete output voltage | 24 V DCtransistor |
| Discrete output current | 500 mA transistor output |
| Maximum leakage current | 0.1 mA |
| Typical current consumption | 5 mA 5 V DC 0 mA 24 V DC 20 mA 5 V DC 10 mA 24 V DC |
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output |
All specifications
| Parameter | Value |
|---|---|
| Response time on output | 450 µs maximum (turn on) 450 µs maximum (turn off) |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 10...95 % without condensation for operation 10...95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Height | 3.5 in (90 mm) |
| Housing colour | Grey |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US10MSX22533 |
| AWG gauge | 0.0002...0.002 in² (0.14...1.5 mm²) / AWG 26...AWG 16 with solid cable |
| Local signalling | 1 LED per channel (green) for output status |
| Device application | Industrial Application |
| Discrete output logic | Positive logic (source) |
| Maximum tungsten load | <3 W transistor |
| Discrete output number | 16 transistor |
| Safety reliability data | MTBF = 57 years 40 °C |
| Isolation between channels and bus | 500 V AC |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation) |
MPN
TM3DQ16T
