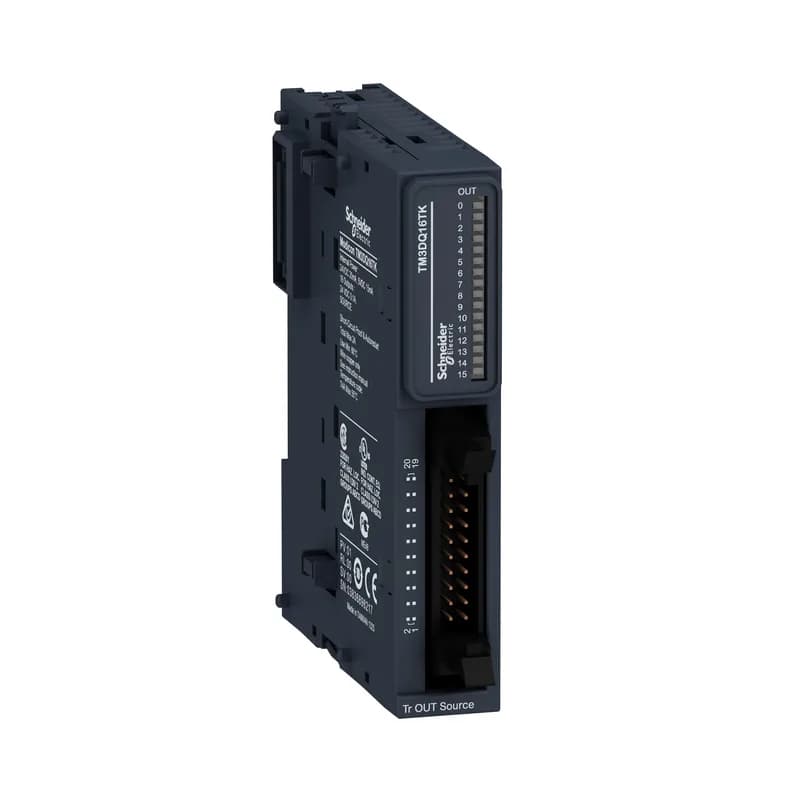

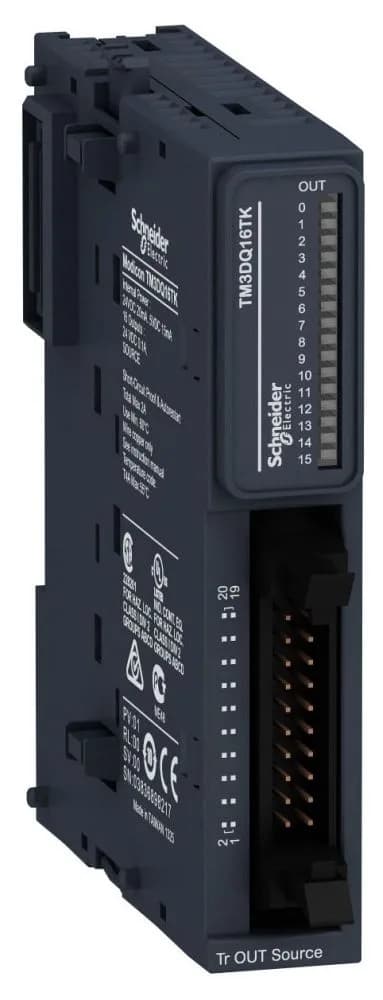

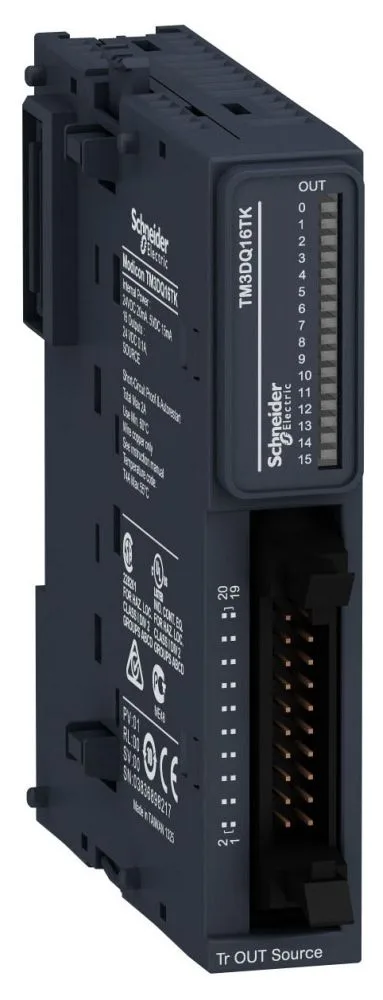

Schneider Electric TM3DQ16TK

Schneider TM3DQ16TK 16-output transistor module, 24 VDC

MPNTM3DQ16TK
Active

Schneider Modicon TM3, Discrete output module, TM3DQ16TK, 16 transistor outputs, 24 V DC, 100 mA, HE-10 connector.

$109.22 – $179.59Ref. price · indicative, final on quote
Schneider Electric TM3DQ16TK datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3DQ16TK key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete output module
Maximum voltage drop<0.4 V
Discrete output voltage24 V DCtransistor
Discrete output current100 mA transistor output
Maximum leakage current0.1 mA
Typical current consumption5 mA 5 V DC 0 mA 24 V DC 20 mA 5 V DC 10 mA 24 V DC
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionHE-10 connector for outputs
Maximum cable distance between devicesUnshielded cable <16.4 ft (5 m) transistor output

All specifications

TM3DQ16TK additional specifications
ParameterValue
Response time on output450 µs maximum (turn on) 450 µs maximum (turn off)
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.2 in (81.3 mm)
Width0.8 in (21.4 mm)
Height3.5 in (90 mm)
Housing colourGrey
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
Local signalling1 LED per channel (green) for output status
Device applicationIndustrial Application
Discrete output logicPositive logic (source)
Discrete output number16 transistor
Safety reliability dataMTBF = 58 years 40 °C
Isolation between channels and bus500 V AC
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

The TM3DQ16TK: 16-channel positive-logic transistor output module for Modicon TM3 remote or local I/O racks. Each channel switches 24 V DC at up to 100 mA, rated for 450 µs turn-on/off. Powered from the internal bus—no external supply needed. The HE-10 header mates with standard IDC ribbon cable; keep unshielded runs under 5 m per channel.

Mounting & dimensions

Mounts on TH35-7.5 or TH35-15 DIN rail per IEC 60715, or panel-mount with the optional fixing kit. Per-channel green LED for output status. Dimensions: 81.3 mm deep, 21.4 mm wide, 90 mm tall—fits the same footprint as other TM3 slices.

Frequently asked questions

What are the depth and width of the TM3DQ16TK?

The depth is 3.2 in (81.3 mm) and the width is 0.8 in (21.4 mm).

What compliance marks does the TM3DQ16TK carry?

The module is CE marked and designed to IEC 61131-2 standards.
