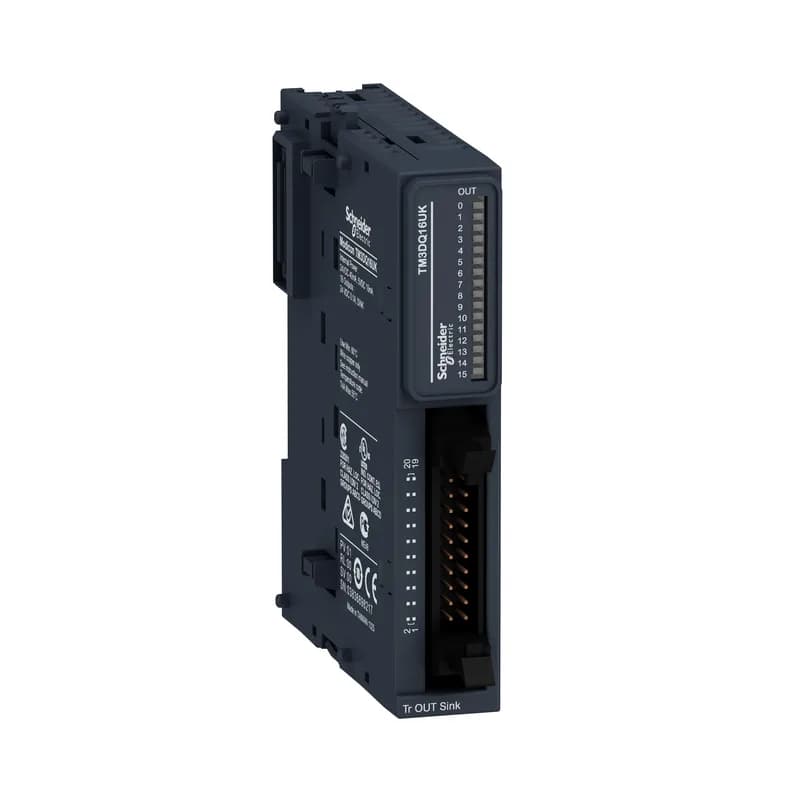

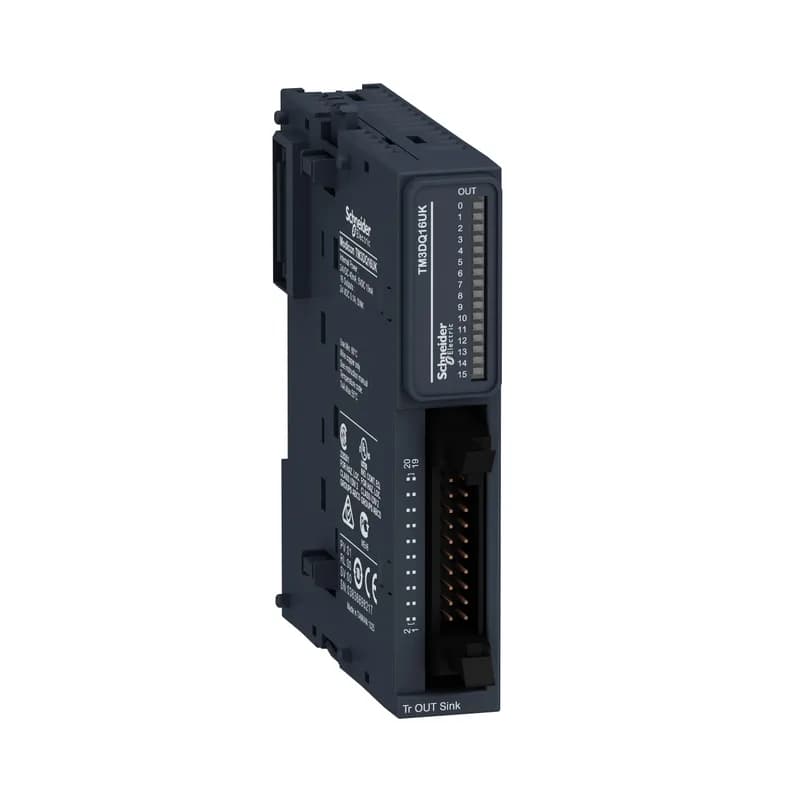

The Schneider TM3DQ16UK is a 16-channel discrete output module in the Modicon TM3 family, delivering 24 V DC transistor sink outputs at 100 mA per channel. It connects via an HE-10 connector and draws power from the backplane, drawing 5 mA at 5 V DC in typical operation. Switching happens within 450 µs on both turn-on and turn-off, and the module carries a 500 V AC isolation between channels and the bus. The 16 green LEDs give a quick visual on each output state.
Mounts on a TH35-15 or TH35-7.5 DIN rail per IEC 60715, or on a plate or panel with the fixing kit. The width is 0.8 in (21.4 mm), depth 3.2 in (81.3 mm), height 3.5 in (90 mm). Ambient operating temperature depends on orientation: 14 to 95 °F (-10 to +35 °C) for vertical installation, 14 to 131 °F (-10 to +55 °C) horizontal. Keep unshielded cable runs under 16.4 ft (5 m). Pollution degree 2 and IP20 rating suit clean control cabinets. Vibration resistance is 3.5 mm at 5…8.4 Hz and 3 gn at 8.4…150 Hz when DIN-rail mounted; shock rated at 15 gn for 11 ms.
