Schneider Electric TM3DQ32TK

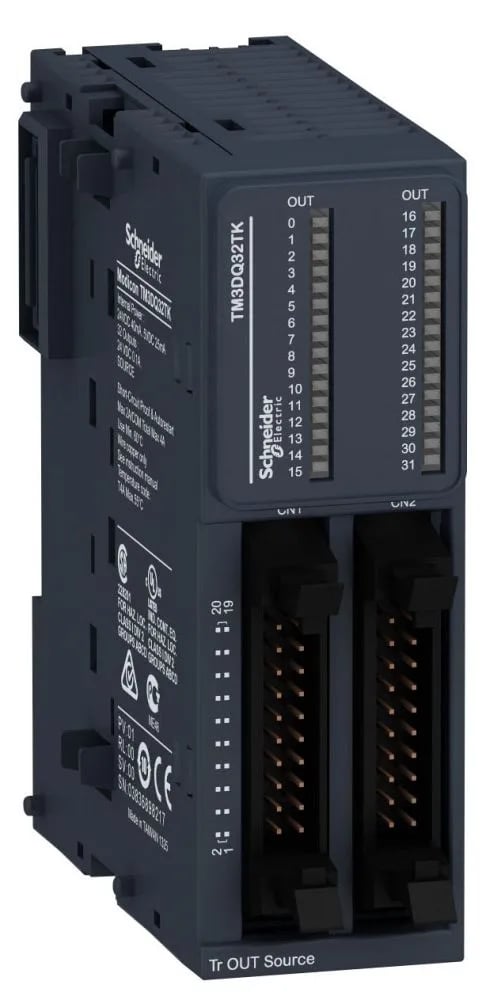

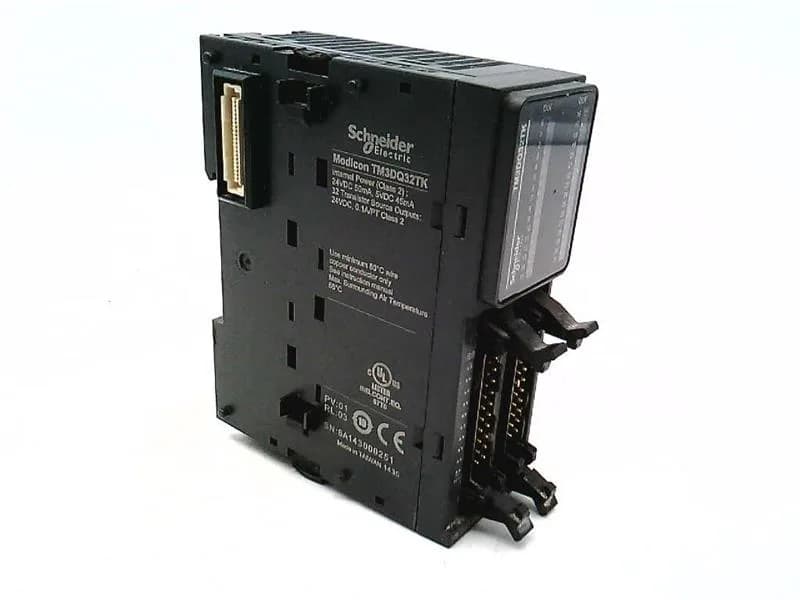

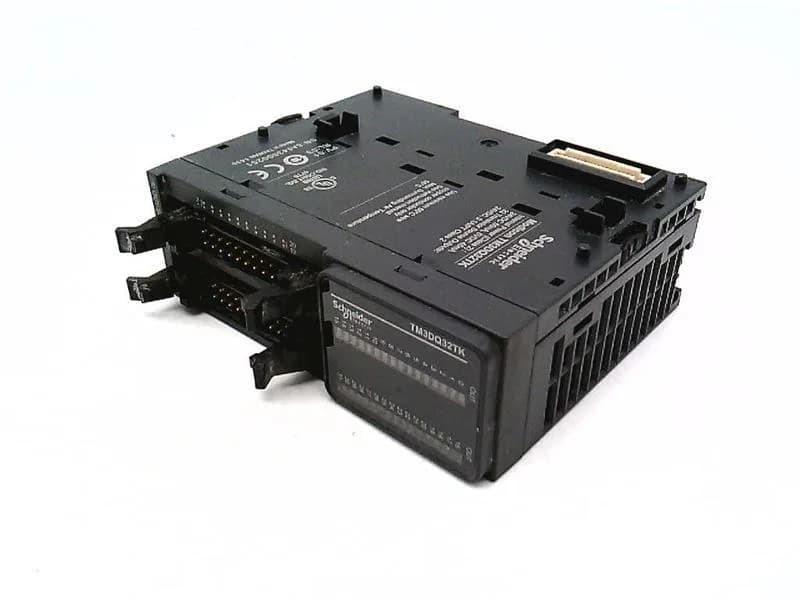

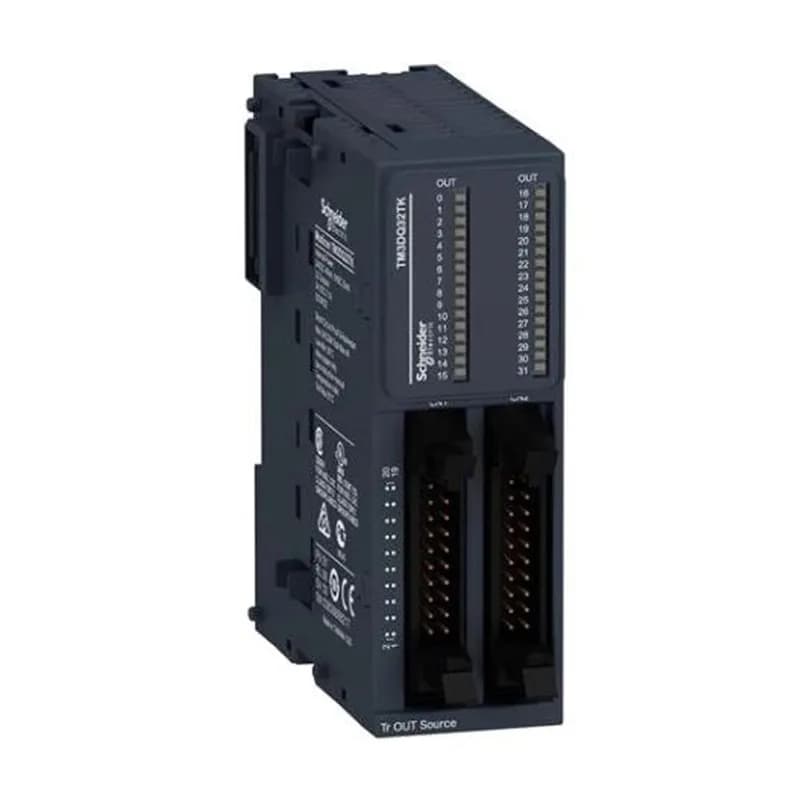

TM3DQ32TK Schneider Modicon 32-Out Module, Obsolete

MPNTM3DQ32TK
Active

Schneider Modicon TM3, discrete output module, TM3DQ32TK, 32 transistor outputs PNP 100 mA per channel, 24 V DC, HE-10 connector, obsolete.

$181.61 – $300.00Ref. price · indicative, final on quote
Schneider Electric TM3DQ32TK datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TM3DQ32TK key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete output module
Maximum voltage drop<0.4 V
Discrete output voltage24 V DCtransistor
Discrete output current100 mA transistor output
Maximum leakage current0.1 mA
Typical current consumption5 mA 5 V DC 0 mA 24 V DC 20 mA 5 V DC 10 mA 24 V DC
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionHE-10 connector for outputs
Maximum cable distance between devicesUnshielded cable <16.4 ft (5 m) transistor output

All specifications

TM3DQ32TK additional specifications
ParameterValue
Response time on output450 µs maximum (turn on) 450 µs maximum (turn off)
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.2 in (81.3 mm)
Width1.3 in (33.5 mm)
Height3.5 in (90 mm)
Housing colourGrey
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
Local signalling1 LED per channel (green) for output status
Device applicationIndustrial Application
Discrete output logicPositive logic (source)
Maximum tungsten load<1.2 W
Discrete output number32 transistor
Isolation between channels and bus500 V AC
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

The Schneider Modicon TM3DQ32TK is a 32-channel discrete transistor output module from the TM3 family, now classified as obsolete. It provides 100 mA per channel at 24 V DC, sourcing (PNP) logic, and connects via a single HE-10 header. The module is intended for industrial control panels using the Modicon TM3 backplane. Key selection details: 450 µs typ. turn-on/off, 0.4 V max drop, isolation 500 V AC between channels and bus.

Sourcing Reality

No RoHS/REACH/UL certificates are included in this listing; verify against your local compliance requirements at time of order.
