Schneider Electric TM3DQ8T

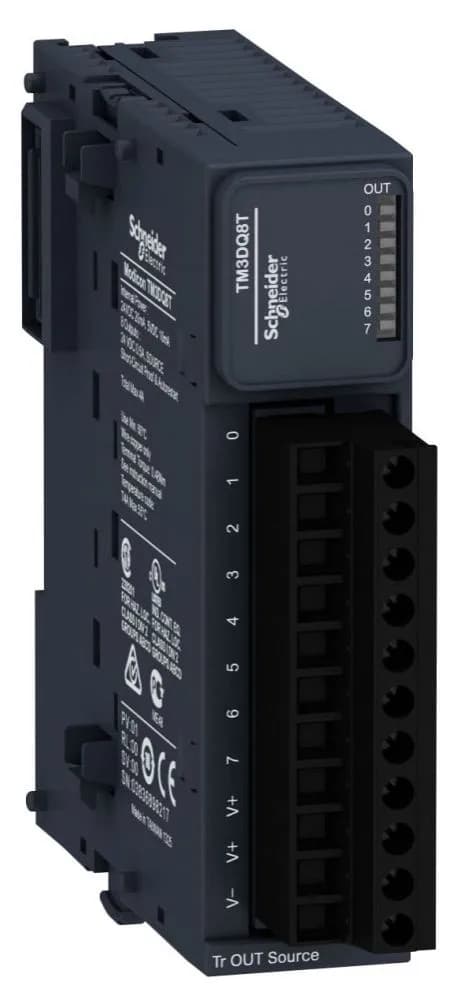

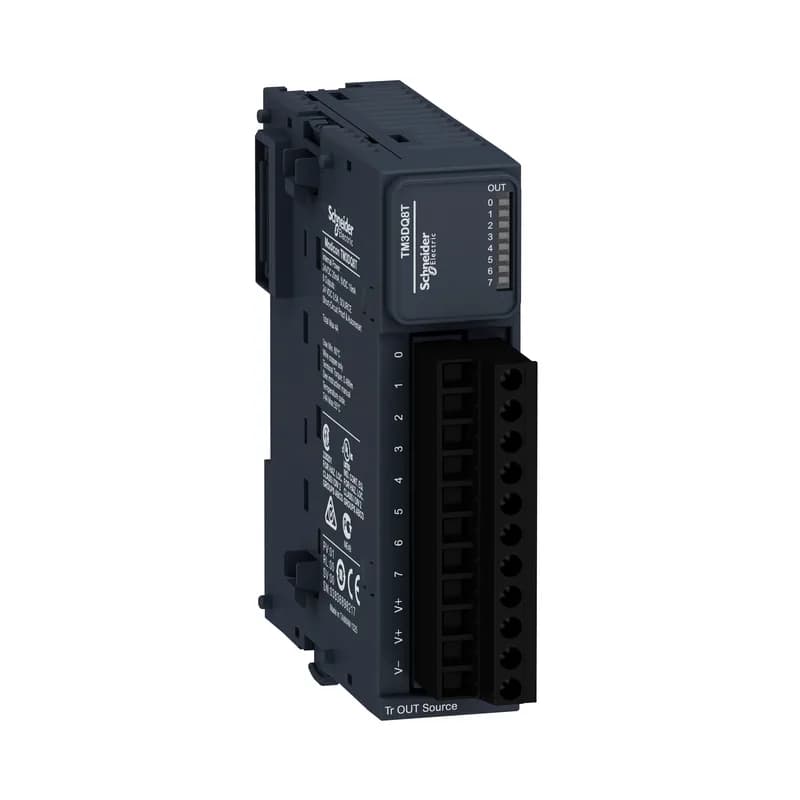

TM3DQ8T Modicon TM3 Discrete Output Module, 8 Transistor PNP

MPNTM3DQ8T
Active

Modicon TM3 discrete output module, 8 transistor PNP outputs, 50 mA per channel, 24 VDC, screw terminal block.

$87.63 – $164.59Ref. price · indicative, final on quote
Schneider Electric TM3DQ8T datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TM3DQ8T key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete output module
Maximum voltage drop<0.4 V
Discrete output voltage24 V DCtransistor
Discrete output current50 mA transistor output
Maximum leakage current0.1 mA
Typical current consumption5 mA 5 V DC 0 mA 24 V DC 20 mA 5 V DC 10 mA 24 V DC
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs
Maximum cable distance between devicesUnshielded cable <98.4 ft (30 m) transistor output

All specifications

TM3DQ8T additional specifications
ParameterValue
Response time on output450 µs maximum (turn on) 450 µs maximum (turn off)
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.3 in (84.6 mm)
Width1.08 in (27.4 mm)
Height3.5 in (90 mm)
Housing colourGrey
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
AWG gauge0.0003...0.004 in² (0.2...2.5 mm²) / AWG 24...AWG 14 with solid cable
Local signalling1 LED per channel (green) for output status
Device applicationIndustrial Application
Discrete output logicPositive logic (source)
Discrete output number8 transistor
Safety reliability dataMTBF = 100 years 40 °C
Isolation between channels and bus500 V AC
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

Output module for the TM3 rack

TM3DQ8T is an 8-channel transistor output module in the Modicon TM3 I/O family. Each output sources 50 mA at 24 VDC, with a maximum on/off delay of 450 µs — fast enough for most discrete control loops but not for sub-millisecond coordinated motion. The module is bus-powered from the TM3 rack, drawing 5 mA at 5 VDC and 10 mA at 24 VDC typical. Isolation between channels and bus is 500 V AC. Status per channel is indicated by a green LED. The module is housed in a grey IP20 enclosure sized at 1.08 x 3.3 x 3.5 in.

Mounts on standard top-hat DIN rail (TH35-15 or TH35-7.5 per IEC 60715) or on a panel using the optional fixing kit. Connection via a removable 11-position screw terminal block, pitch 5.08 mm. Accepts solid or stranded cable from 0.2 to 2.5 mm² (AWG 24 to 14). Strip length 8 mm.

Listed as current production — no lifecycle concerns for BOM fulfillment.

Frequently asked questions

What compliance markings does this module carry?

The module bears CE marking and complies with IEC 61131-2 standards.

MPN
TM3DQ8T
