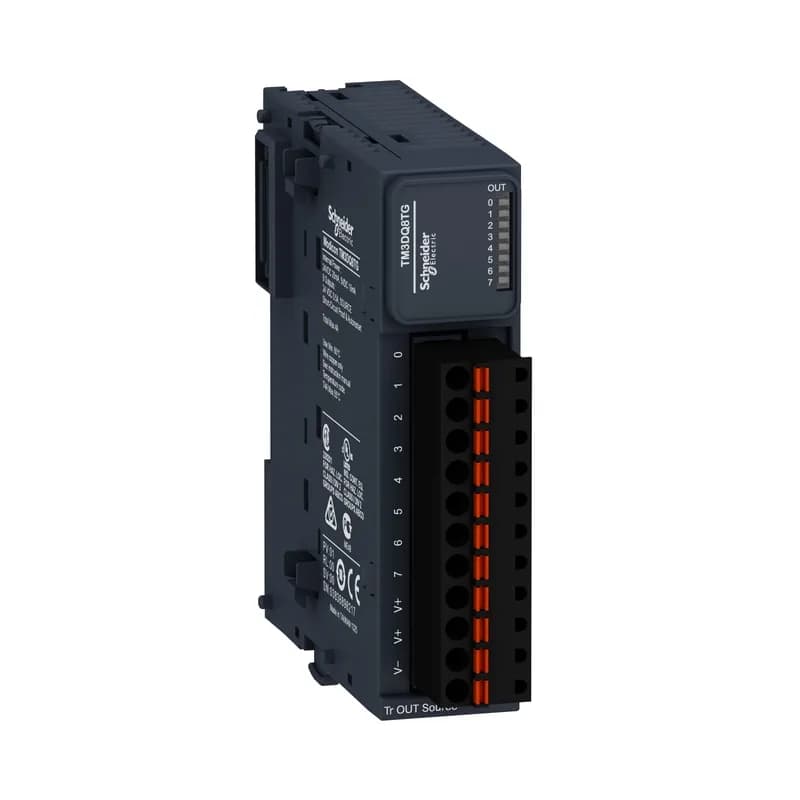

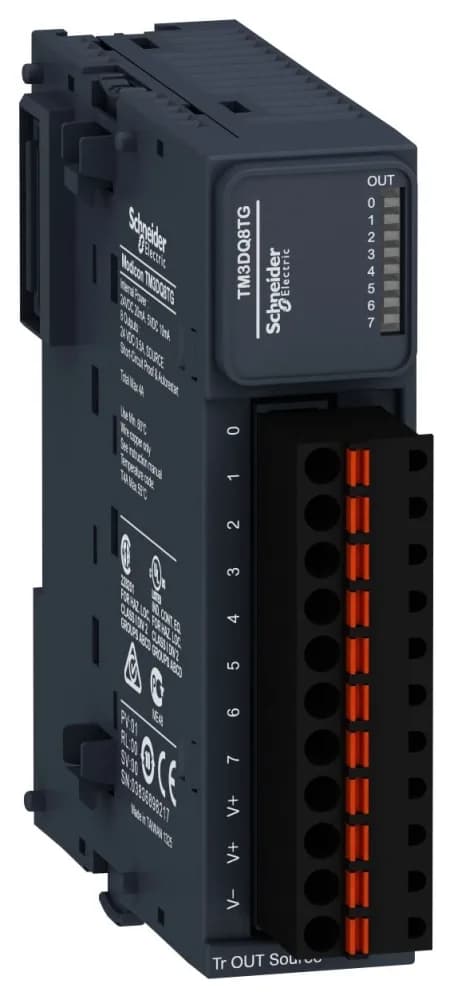

Schneider Electric TM3DQ8TG

Schneider TM3DQ8TG Modicon TM3 8-channel 24 V DC sourcing ou

MPNTM3DQ8TG
Active

Schneider Electric Modicon TM3 discrete output module, 8-channel transistor sourcing, 24 V DC, 50 mA per output, removable spring terminal block, IP20, CE marked.

$87.63 – $165.14Ref. price · indicative, final on quote
Schneider Electric TM3DQ8TG datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TM3DQ8TG key specifications
ParameterValue
Range of productModicon TM3
Power supply typeElectronic powered by internal bus
Product or component typeDiscrete output module
Maximum voltage drop<0.4 V
Discrete output voltage24 V DCtransistor
Discrete output current50 mA transistor output
Maximum leakage current0.1 mA
Typical current consumption5 mA 5 V DC 0 mA 24 V DC 20 mA 5 V DC 10 mA 24 V DC
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs
Maximum cable distance between devicesUnshielded cable <98.4 ft (30 m) transistor output

All specifications

TM3DQ8TG additional specifications
ParameterValue
Response time on output450 µs maximum (turn on) 450 µs maximum (turn off)
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation for operation 10...95 % without condensation for storage
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting
Depth3.3 in (84.6 mm)
Width1.08 in (27.4 mm)
Height3.5 in (90 mm)
Housing colourGrey
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
AWG gauge0.0003...0.004 in² (0.2...2.5 mm²) / AWG 24...AWG 14 with solid cable
Local signalling1 LED per channel (green) for output status
Device applicationIndustrial Application
Discrete output logicPositive logic (source)
Discrete output number8 transistor
Safety reliability dataMTBF = 100 years 40 °C
Isolation between channels and bus500 V AC
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation)

Product details

Mounting and wiring – the labor saver

Snaps onto TH35-15 or TH35-7.5 DIN rail, or panel-mount with the optional fixing kit. The removable spring terminal block (pitch 5.08 mm) accepts 0.2–2.5 mm² solid or stranded wire – strip 8 mm, no ferrules needed. Response time is 450 µs on/off, so it handles valve banks and indicator loads without noticeable lag. Temperature range: -10 to +55 °C horizontal, -10 to +35 °C vertical – keep airflow if racking tightly.

Schneider lists the TM3DQ8TG as active – no PCN or LTB on the horizon. That makes it a safe line-item for BOM freeze.
