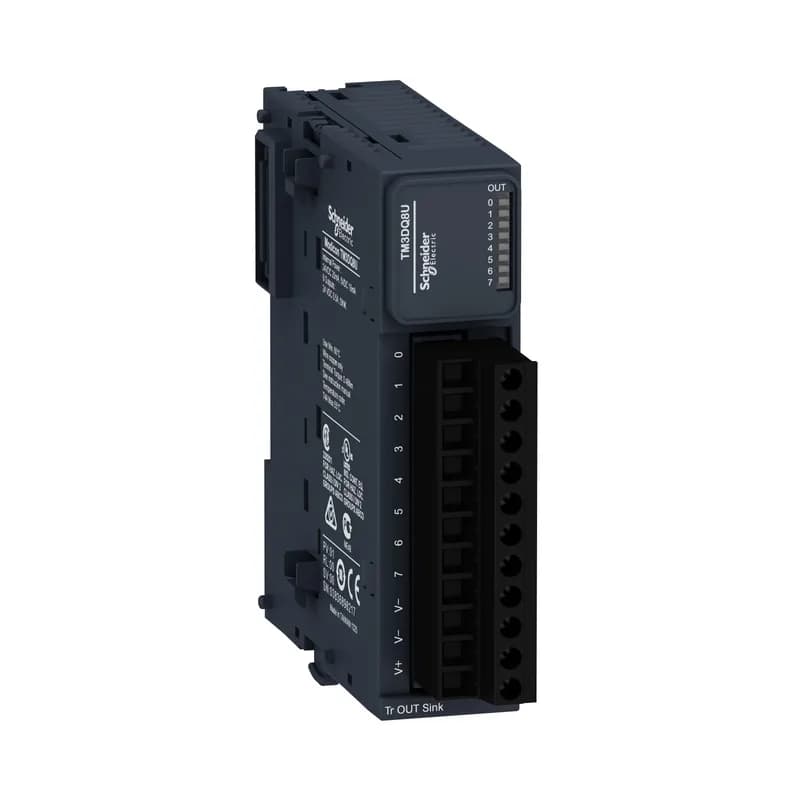

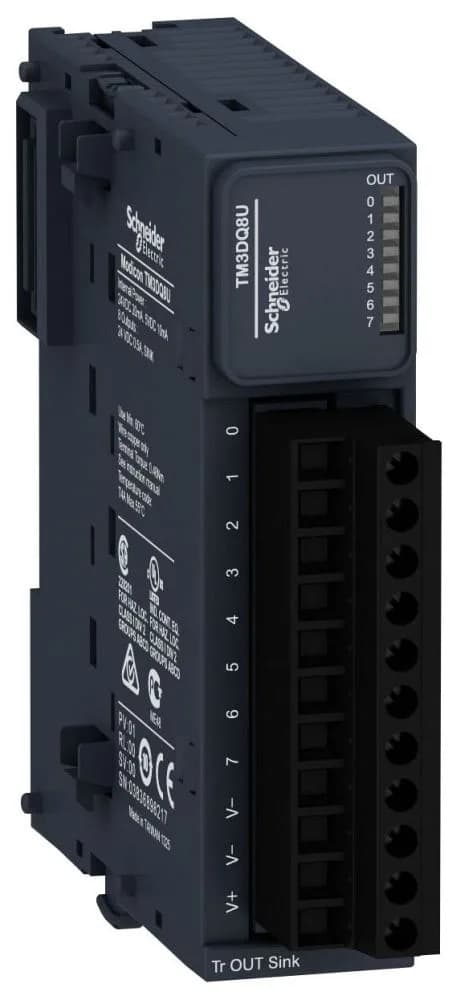

Schneider TM3DQ8U, Modicon TM3 8-channel transistor output module, 24 V DC 50 mA, negative logic (sink), 450 µs response, CE.
| Parameter | Value |
|---|---|
| Range of product | Modicon TM3 |
| Power supply type | Electronic powered by internal bus |
| Product or component type | Discrete output module |
| Maximum voltage drop | <0.4 V |
| Discrete output voltage | 24 V DCtransistor |
| Discrete output current | 50 mA transistor output |
| Maximum leakage current | 0.1 mA |
| Typical current consumption | 5 mA 5 V DC 0 mA 24 V DC 20 mA 5 V DC 10 mA 24 V DC |
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output |
| Parameter | Value |
|---|---|
| Response time on output | 450 µs maximum (turn on) 450 µs maximum (turn off) |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 10...95 % without condensation for operation 10...95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting |
| Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| Height | 3.5 in (90 mm) |
| Housing colour | Grey |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US10MSX22533 |
| AWG gauge | 0.0003...0.004 in² (0.2...2.5 mm²) / AWG 24...AWG 14 with solid cable |
| Local signalling | 1 LED per channel (green) for output status |
| Device application | Industrial Application |
| Discrete output logic | Negative logic (sink) |
| Discrete output number | 8 transistor |
| Safety reliability data | MTBF = 170 years 40 °C |
| Isolation between channels and bus | 500 V AC |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...95 °F (-10...35 °C) vertical installation) 14...131 °F (-10...55 °C) horizontal installation) |
The TM3DQ8U: Width 27.4 mm (1.08 in) — one slot on the rail. Screw terminal block, 11 positions. Unshielded cable distance to transistor outputs up to 30 m (98.4 ft).
One green LED per channel indicates output status. Ambient temperature: -10 to 55 °C horizontal mounting, -10 to 35 °C vertical. MTBF 170 years at 40 °C. Pollution degree 2. Marked CE, designed to IEC 61131-2.
Depth is 84.6 mm (3.3 in).
Width is 27.4 mm (1.08 in).
CE marking and IEC 61131-2 compliance are listed. Pollution degree 2 is specified in the standard documentation.
