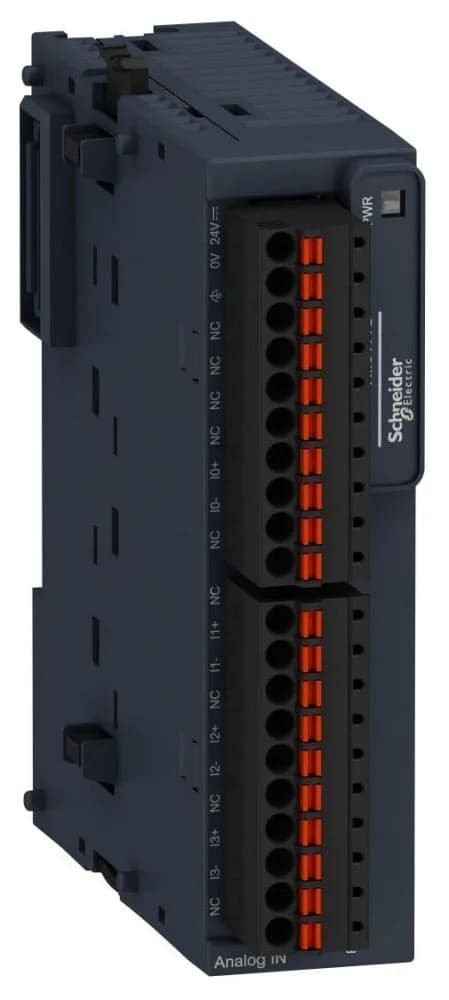

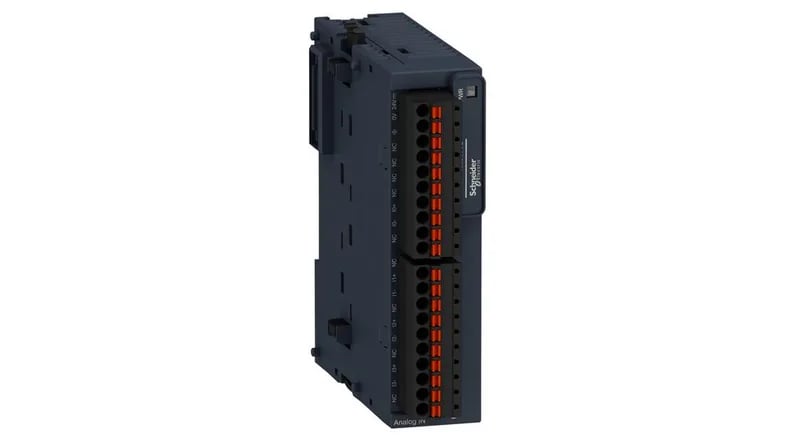

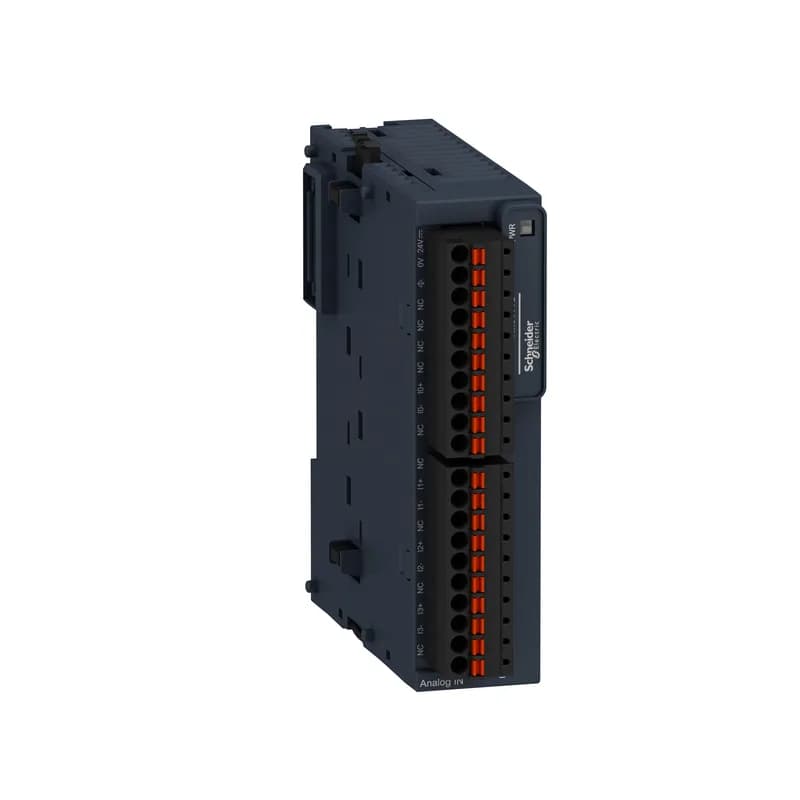

TM3TI4G - Schneider Electric
MPNTM3TI4G
Active
TM3-4 INPUTS TEMPERATURE SPRING|TM3-4 INPUTS TEMPERATURE SPRING
$139.70 – $360.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Range of product | Modicon TM3 |
| Analogue input type | Current 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V Thermocouple - 200...1000 °C thermocouple J Thermocouple - 200...1300 °C thermocouple K Thermocouple 0...1760 °C thermocouple R Thermocouple 0...1760 °C thermocouple S Thermocouple 0...1820 °C thermocouple B Thermocouple - 200...400 °C thermocouple T Thermocouple - 200...1300 °C thermocouple N Thermocouple - 200...800 °C thermocouple E Thermocouple 0...2315 °C thermocouple C Temperature probe - 200...850 °C Pt 100 Temperature probe - 200...600 °C Pt 1000 |
| Product or component type | Analog input module |
| Typical current consumption | 45 mA 5 V DC 50 mA 5 V DC 35 mA 24 V DC 40 mA 24 V DC |
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 10...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | 3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail |
| Depth | 2.8 in (70 mm) |
| Width | 0.9 in (23.6 mm) |
| Height | 3.5 in (90 mm) |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US10MSX22533 |
| LSB value | 2.44 mV, 0...10 V 4.88 mV, - 10...10 V 4.88 µA, 0...20 mA 3.91 µA, 4...20 mA 0.1 °C |
| Cross talk | <= 1 LSB |
| Insulation | Between output and supply 1500 V AC Between output and internal logic 500 V AC |
| Non-linearity | +/- 0.2 %FS |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time thermocouple |
| Input impedance | >= 1 MOhm |
| Repeat accuracy | +/-0.5 %FS |
| Local signalling | 1 LED green PWR |
| Sampling duration | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Analogue input number | 4 |
| Absolute accuracy error | +/- 0.2 % of full scale at 77 °F (25 °C) for analogue input voltage/current +/- 0.2 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple C 0...2315 °C +/- 6 °C at 77 °F (25 °C) for thermocouple R, S 0...200 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple R, S 200...1760 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple B 300...1820 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple K - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple J - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple E - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple E 0...800 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple T - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple T 0...400 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple N - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple N 0...1300 °C |
| Immunity to microbreaks | 10 ms |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011 |
| Analogue input resolution | 16 bits 15 bits + sign |
| Permissible continuous overload | 13 V voltage 40 mA current |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation) |
MPN
TM3TI4G
