Schneider Electric TM3TM3G

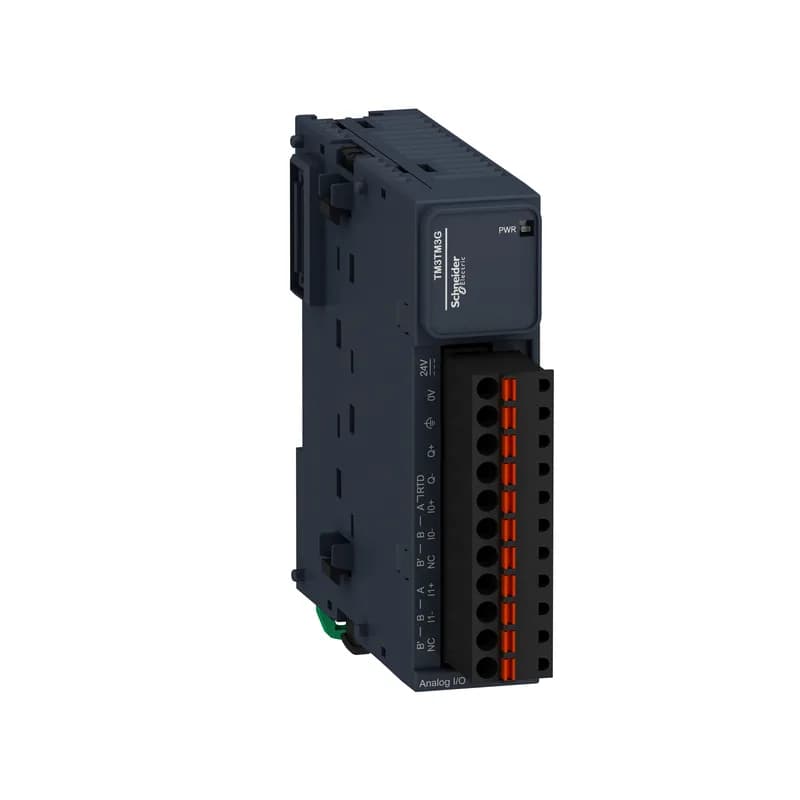

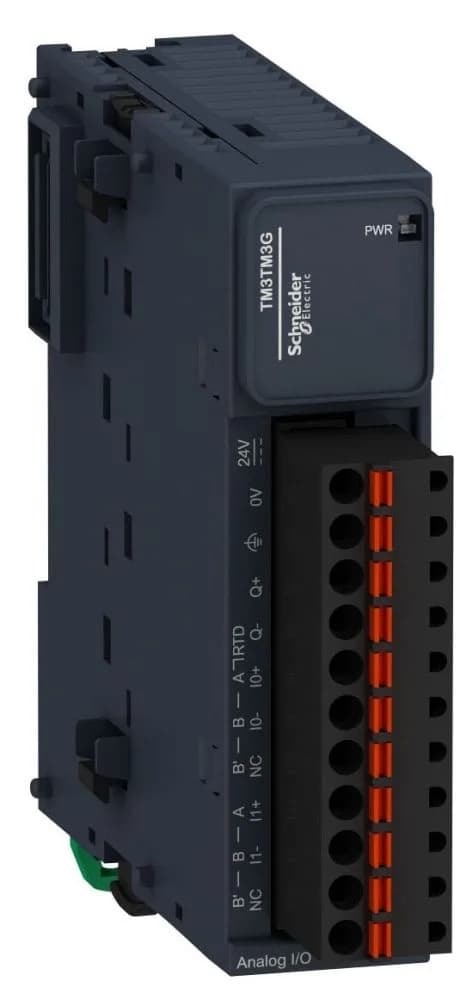

Schneider Electric TM3TM3G Analog Module, 2 I 1 O, 16-bit

MPNTM3TM3G
Obsolete

Schneider Electric Modicon TM3, TM3TM3G, Analog Expansion Module, 2 inputs / 1 output, 16-bit, IP20, DIN rail mount.

$170.18 – $388.80Ref. price · indicative, final on quote
Schneider Electric TM3TM3G datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3TM3G key specifications
ParameterValue
Load typeResistive
Type of cableTwisted shielded pairs cable <98.4 ft (30 m) input/output
Range of productModicon TM3
Analogue input typeCurrent 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V Thermocouple - 200...1000 °C thermocouple J Thermocouple - 200...1300 °C thermocouple K Thermocouple 0...1760 °C thermocouple R Thermocouple 0...1760 °C thermocouple S Thermocouple 0...1820 °C thermocouple B Thermocouple - 200...400 °C thermocouple T Thermocouple - 200...1300 °C thermocouple N Thermocouple - 200...800 °C thermocouple E Thermocouple 0...2315 °C thermocouple C Temperature probe - 60...180 °C Ni 100/Ni 1000 Temperature probe - 200...850 °C Pt 100 Temperature probe - 200...600 °C Pt 1000
Analogue output typeCurrent 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V
Product or component typeInput/output analog module
Typical current consumption55 mA 24 V DC no load 55 mA 5 V DC no load 60 mA 5 V DC full load 80 mA 24 V DC full load
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply
Pollution degree2
Shock resistance15 gn 11 ms

All specifications

TM3TM3G additional specifications
ParameterValue
Relative humidity10...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail
Depth2.8 in (70 mm)
Width0.9 in (23.6 mm)
Height3.5 in (90 mm)
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
LSB value0.15 mV, 0...10 V 0.30 mV, - 10...10 V 0.30 µA, 0...20 mA 0.244 µA, 4...20 mA 0.1 °C 2.44 mV, 0...10 V 4.88 mV, - 10...10 V 4.88 µA, 0...20 mA 3.91 µA, 4...20 mA
Cross talk<= 1 LSB
InsulationBetween input and supply 1500 V AC Between input and internal logic 500 V AC Between output and supply 1500 V AC Between output and internal logic 500 V AC
Non-linearity+/- 0.01 %FS analog output +/- 0.1 %FS analog input
Output ripple20 mV
Conversion time100 ms + 100 ms per channel + 1 controller cycle time thermocouple
Input impedance>= 1 MOhm
Repeat accuracy+/-0.5 %FS input
Local signalling1 LED green PWR
Sampling duration10 ms
Temperature drift+/- 0.006 %FS/°C
Stabilisation time1 ms
Load impedance ohmic1 kOhm voltage 300 Ohm current
Analogue input number2
Analogue output number1
Absolute accuracy error+/- 6 °C at 77 °F (25 °C) for thermocouple R, S 0...200 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple K - 200...0 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple J - 200...0 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple E - 200...0 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple T - 200...0 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple N - 200...0 °C +/- 0.1 % of full scale at 77 °F (25 °C) for analogue input voltage/current +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple C 0...2315 °C +/- 0.1 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple R, S 200...1760 °C +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple B 300...1820 °C +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple K 0...1300 °C +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple J 0...1000 °C +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple E 0...800 °C +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple T 0...400 °C +/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple N 0...1300 °C +/- 0.1 % of full scale at 77 °F (25 °C) for analogue output voltage/current
Immunity to microbreaks10 ms
Electromagnetic emissionRadiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011
Analogue input resolution16 bits 15 bits + sign
Permissible continuous overload13 V voltage 40 mA current
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)

Product details

The TM3TM3G: Modicon TM3 analog expansion module with two universal inputs and one analog output. Accepts voltage (0-10 V, ±10 V), current (0-20 mA, 4-20 mA), thermocouple types J, K, R, S, B, T, N, E, C, and RTD probes Ni100, Ni1000, Pt100, Pt1000 — covering most process signals in a single slot. Resolution is 16 bits (15 bits + sign on voltage ranges), with non-linearity ±0.01 %FS on the output and ±0.1 %FS on the input. Absolute accuracy on voltage/current inputs is ±0.1 %FS at 25 °C, while thermocouple accuracy varies by type and range — for example, ±6 °C on R/S below 200 °C, tightening to ±0.1 %FS above 200 °C. Communication is via the TM3 backplane bus; no fieldbus interface inside — it is a local I/O expansion module.

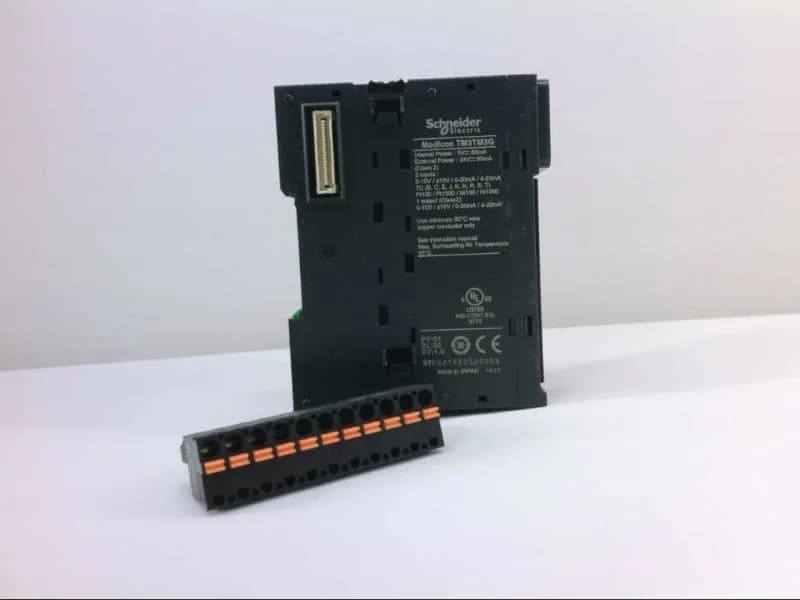

Snaps onto standard TH35-7.5 or TH35-15 DIN rail; also mountable on a plate using an optional fixing kit. Wired via a removable spring-cage terminal block, 11 positions, accepts up to 2.5 mm². Recommended cable is twisted shielded pairs, max 30 m for inputs and outputs. Rated IP20 for clean, dry cabinets. Operating altitude to 2000 m, pollution degree 2, ambient humidity 10–95% without condensation.

Frequently asked questions

What is TM3TM3G's listed depth?

Depth is 2.8 in (70 mm).

What is TM3TM3G's listed width?

Width is 0.9 in (23.6 mm).
