Schneider Electric TM3XFHSC202

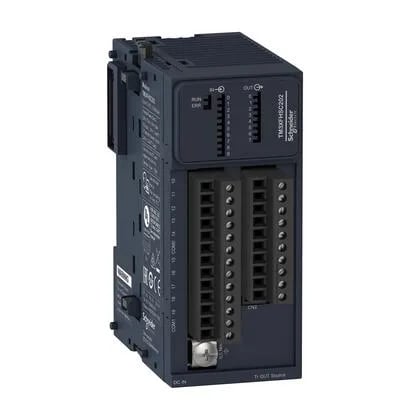

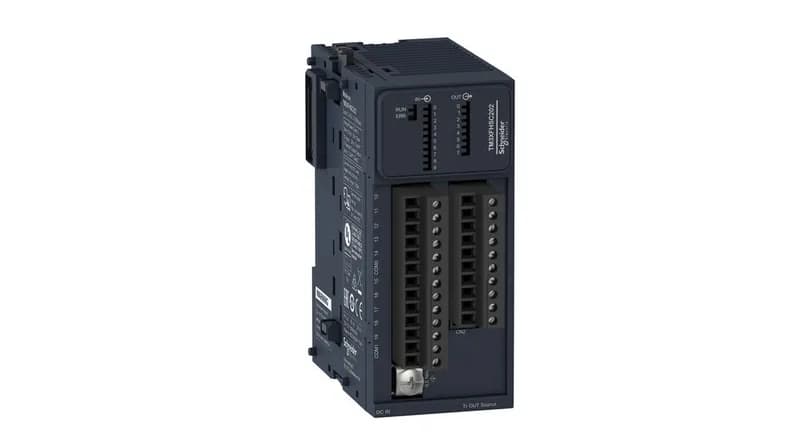

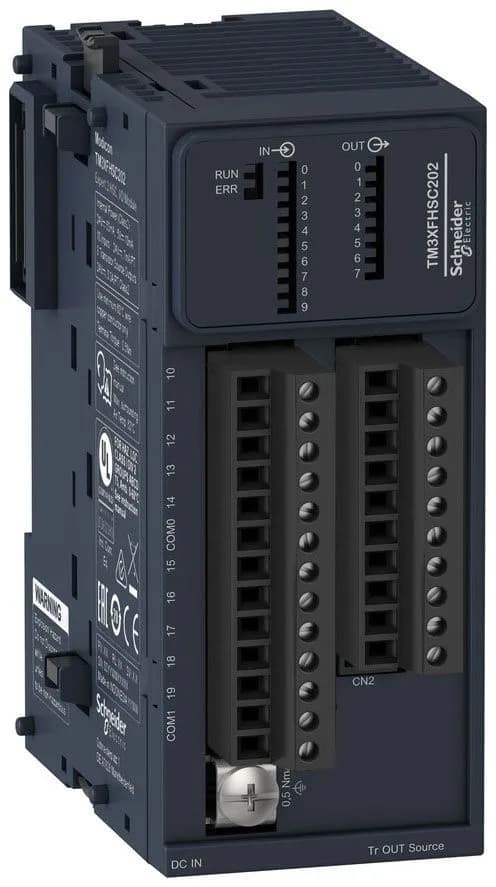

Schneider TM3XFHSC202 HSC Module, 200 kHz

MPNTM3XFHSC202
Active

Schneider Electric Modicon TM3 high-speed counting module, TM3XFHSC202, 10 inputs 8 outputs, 200 kHz, automatic reset, 24 V DC.

$480.27 – $1,079.34Ref. price · indicative, final on quote
Schneider Electric TM3XFHSC202 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3XFHSC202 key specifications
ParameterValue
Range of productModicon TM3
Output protection typeAgainst overload and short-circuits
Electrical circuit typeStandard input Latch input
Product or component typeModule hight speed counting
Output voltage24 V DC transistor output
DC supply voltage24 V
Output voltage limits30 V DC
Discrete input voltage24 V DC
Supply voltage24 V DC external supply - 15...20 %)
Current consumption100 mA 5 V DC 50 mA 24 V DC
Discrete output current300 mA fast output Q0...Q7)
Counting frequency200 kHz

All specifications

TM3XFHSC202 additional specifications
ParameterValue
IP degree of protectionIP20 with protective cover in place
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 2...8.4 Hz DIN rail 1 gn 8.4...200 Hz DIN rail 3.5 mm 2...8.4 Hz panel 1 gn 8.4...200 Hz panel
Depth3.3 in (85 mm)
Width1.5 in (39 mm)
Height3.5 in (90 mm)
StandardsCSA C22.2 No 142 ANSI/ISA 12-12-01 UL 1604 CSA C22.2 No 213 EN/IEC 61131-2:2007 UL 508
ResetAutomatic reset
CategoryUS10MSX22533
ServicesHSC simple One shot/Modulo HSC main single phase One shot/Modulo/Event counting HSC main dual phase Modulo/Free-large Period meter Edge to Edge, Edge to Opposite
Counting mode2 main expert function (main counting function, frequency meter, period meter) Max 8 simple counting function
Event management8 maximum per PLC Thresholds < 10 µs
Local signalling1 LED I/O 1 LED RUN 1 LED ERR
Discrete i (O number)18
Discrete input logicSink or source
Discrete output logicSource
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP10...150 kHz EN/IEC 55011 Conducted emissions 63 dBμV/m QP1.5...30 MHz EN/IEC 55011 Radiated emissions 40 dBµV/m class A30...230 MHz EN/IEC 55011 Conducted emissions 79...63 dBμV/m QP150...1500 kHz EN/IEC 55011 Radiated emissions 47 dBµV/m class A230...1000 MHz EN/IEC 55011
Number of input channels10
Number of output channels8
Resistance to fast transients2 kV alimentation cableEN/IEC 61000-4-4 1 kV Ethernet lineEN/IEC 61000-4-4 1 kV serial linkEN/IEC 61000-4-4 1 kV inputEN/IEC 61000-4-4 1 kV transistor outputEN/IEC 61000-4-4
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz EN/IEC 61000-4-4
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3
Ambient air temperature for operation-4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation
Resistance to electrostatic discharge8 kV in air EN/IEC 61000-4-2 4 kV on contact EN/IEC 61000-4-2

Product details

The TM3XFHSC202: 200 kHz counting on this Modicon TM3 slice means it tracks encoder pulses or fast proximity switches without losing edges. Ten inputs configurable as sink or source, eight source outputs each rated 300 mA. Automatic reset simplifies recovery after a fault condition.

Draws 100 mA from the 5 V backplane and 50 mA from the 24 V external supply. IP20 with protective cover, rated for vibration 3.5 mm at 2–8.4 Hz and shock 15 gn for 11 ms.

Counting modes and event handling

Supports one-shot, modulo, and event counting, plus frequency and period measurement. Two main expert functions handle the high-speed channels; up to eight simple functions run concurrently. Event thresholds fire in under 10 µs, letting the PLC latch fast edge transitions without additional input conditioners.

Frequently asked questions

What is TM3XFHSC202's listed depth?

85 mm (3.3 in).

What is its listed reset?

Automatic reset after a fault or counting overflow condition.

What compliance documentation does this module carry?

It is certified to UL 508, CSA C22.2 No 142, and EN/IEC 61131-2:2007.
