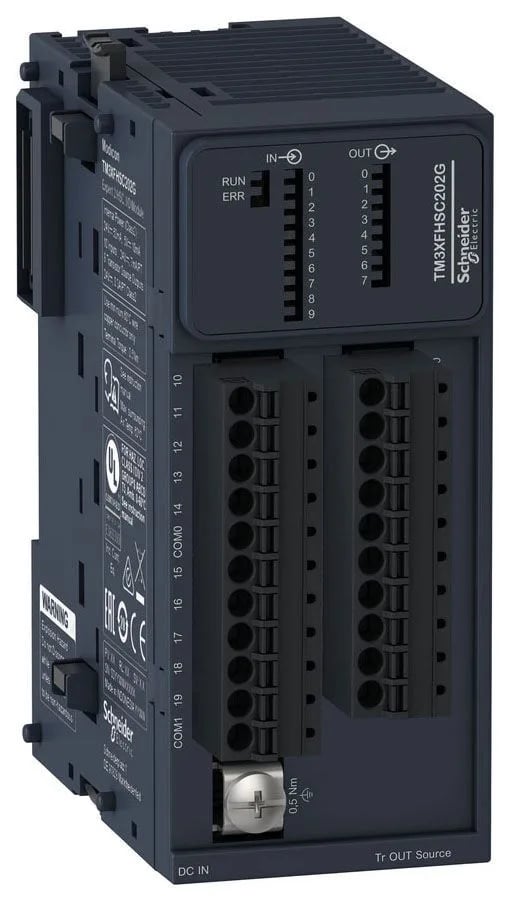

Schneider TM3XHSC202G Modicon TM3 High-Speed Counting Module

MPNTM3XHSC202G
Active

Schneider Modicon TM3, Module high speed counting, TM3XHSC202G, 200 kHz counting frequency, 18 discrete I/O, 24 V DC, IP20.

$232.41Ref. price · indicative, final on quote
Schneider Electric TM3XHSC202G datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3XHSC202G key specifications
ParameterValue
Range of productModicon TM3
Output protection typeAgainst overload and short-circuits
Electrical circuit typeStandard input Latch input
Product or component typeModule hight speed counting
Output voltage24 V DC transistor output
DC supply voltage24 V
Output voltage limits30 V DC
Discrete input voltage24 V DC
Supply voltage24 V DC external supply - 15...20 %)
Current consumption100 mA 5 V DC 50 mA 24 V DC
Discrete output current300 mA fast output Q0...Q7)
Counting frequency200 kHz

All specifications

TM3XHSC202G additional specifications
ParameterValue
IP degree of protectionIP20 with protective cover in place
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm 2...8.4 Hz DIN rail 1 gn 8.4...200 Hz DIN rail 3.5 mm 2...8.4 Hz panel 1 gn 8.4...200 Hz panel
Depth3.3 in (85 mm)
Width1.5 in (39 mm)
Height3.5 in (90 mm)
StandardsCSA C22.2 No 142 ANSI/ISA 12-12-01 UL 1604 CSA C22.2 No 213 EN/IEC 61131-2:2007 UL 508 EN/IEC 61010-2-201
ResetAutomatic reset
CategoryUS10MSX22533
ServicesHSC simple One shot/Modulo HSC main single phase One shot/Modulo/Event counting HSC main dual phase Modulo/Free-large Period meter Edge to Edge, Edge to Opposite
Counting mode2 main expert function (main counting function, frequency meter, period meter) Max 8 simple counting function
Event managementNo event Thresholds < 10 µs
Local signalling1 LED I/O 1 LED RUN 1 LED ERR
Discrete i (O number)18
Discrete input logicSink or source
Discrete output logicSource
Electromagnetic emissionConducted emissions 120...69 dBµV/m QP10...150 kHz EN/IEC 55011 Conducted emissions 63 dBμV/m QP1.5...30 MHz EN/IEC 55011 Radiated emissions 40 dBµV/m class A30...230 MHz EN/IEC 55011 Conducted emissions 79...63 dBμV/m QP150...1500 kHz EN/IEC 55011 Radiated emissions 47 dBµV/m class A230...1000 MHz EN/IEC 55011
Number of input channels10
Number of output channels8
Resistance to fast transients2 kV alimentation cableEN/IEC 61000-4-4 1 kV Ethernet lineEN/IEC 61000-4-4 1 kV serial linkEN/IEC 61000-4-4 1 kV inputEN/IEC 61000-4-4 1 kV transistor outputEN/IEC 61000-4-4
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz EN/IEC 61000-4-4
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3
Ambient air temperature for operation-4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation
Resistance to electrostatic discharge8 kV in air EN/IEC 61000-4-2 4 kV on contact EN/IEC 61000-4-2

Product details

High-speed counting slice for Modicon TM3 racks

The TM3XHSC202G is the 200 kHz high-speed counting module in the Modicon TM3 family — it handles single-phase and dual-phase counting, frequency and period measurement, and event counting with thresholds under 10 µs. With 18 discrete I/O (10 inputs, 8 source outputs), it's sized for medium-density encoder and pulse-train applications on a 24 V DC bus. The automatic reset means no manual intervention after a fault clears, which keeps the line running during commissioning.

Dimensions: 85 mm deep, 39 mm wide, 90 mm tall. Mounts on DIN rail (IEC 60715) or plate with fixing kit; IP20 with cover.

Frequently asked questions

What is the depth of TM3XHSC202G?

85 mm (3.3 in).

What is the reset type?

Automatic reset.

What compliance certifications does it hold?

UL 508, CSA C22.2 No 142, EN/IEC 61131-2:2007, and others.
