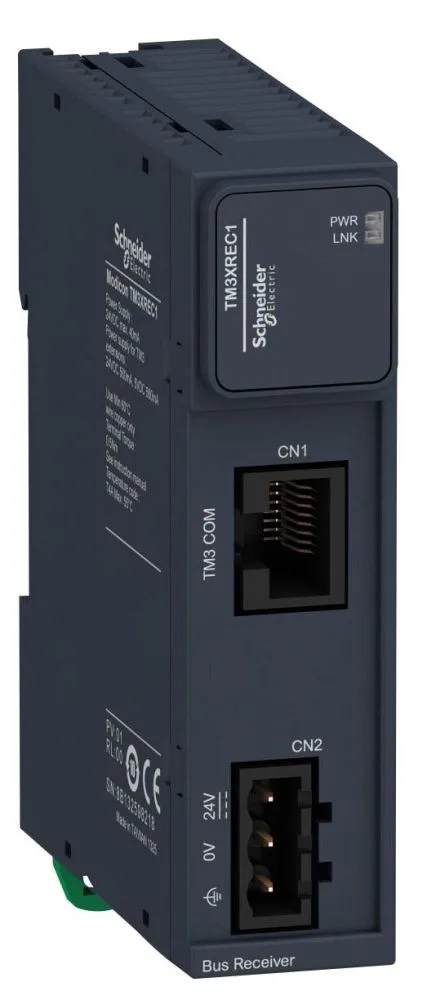

Schneider Electric TM3XREC1
MPNTM3XREC1
Active
REMOTE RECEIVER MODULE, MODICON
$68.58 – $152.81Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon TM3 |
| Product or component type | Remote receiver module |
| Supply voltage | 24 V DC external supply - 15...20 %) |
| Current consumption | 40 mA 24 V DC via bus connector |
| Power supply output current | 560 mA 5 V expansion bus 560 mA 24 V expansion bus |
| Maximum power dissipation in | 1 W |
| IP degree of protection | IP20 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Electrical connection | RJ45 connector for connecting the bus transmitter removable screw terminal block, 3 for connecting the 24 V DC power supply |
| Cable distance between devices | 0.02...0.2 in (0.5...5 mm) extension cable 2 RJ45 between receiver and transmitter |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on panel mounting 3 gn 8.4...150 Hz) on panel mounting |
| Depth | 2.9 in (73.3 mm) |
| Width | 0.93 in (23.65 mm) |
| Height | 3.5 in (90 mm) |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D UL 1604 Class 1 Division 2 CSA C22.2 No 142 IEC 61131-2 UL 508 |
| Marking | CE |
| Category | US10MSX22533 |
| Local signalling | 1 LED green power supply 1 LED green Link (Link Status) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) horizontal installation) 14...122 °F (-10...50 °C) vertical installation) |
MPN
TM3XREC1
