Schneider Electric TM4PDPS1

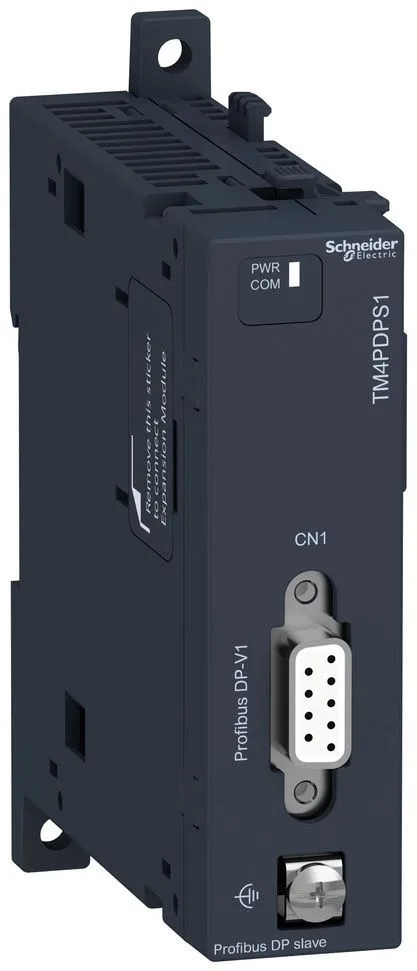

Schneider TM4PDPS1 CMC Communication Module

MPNTM4PDPS1
Obsolete

Square D TM4PDPS1 Cmc Module|Square D TM4PDPS1 Cmc Module

$153.67 – $318.00Ref. price · indicative, final on quote
Schneider Electric TM4PDPS1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TM4PDPS1 key specifications
ParameterValue
Product or component typeProfibus DP communication module
Integrated connection typeProfibus DP female SUB-D 9
Surge withstand1 kV power lines (DC) common mode IEC 61000-4-5 2 kV power lines (AC) common mode IEC 61000-4-5 2 kV relay output common mode IEC 61000-4-5 1 kV I/O common mode IEC 61000-4-5 1 kV shielded cable common mode IEC 61000-4-5 0.5 kV power lines (DC) differential mode IEC 61000-4-5 1 kV power lines (AC) differential mode IEC 61000-4-5 1 kV relay output differential mode IEC 61000-4-5 0.5 kV I/O differential mode IEC 61000-4-5
Current consumption290 mA 5 V DC communication bus
Power dissipation in1.5 W
IP degree of protectionIP20 with protective cover in place
Communication port protocolProfibus DP V0 Profibus DP V1
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connectionScrew connector terminal for connecting the functional ground SUB-D 9 1 female connector for connecting Profibus
Pollution degree2
Shock resistance15 gn 11 ms
Storage altitude0...9842.5 ft (0...3000 m)

All specifications

TM4PDPS1 additional specifications
ParameterValue
Relative humidity10...95 %, without condensation in operation) 10...95 %, without condensation in storage)
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 mm 5...13.2 Hz symmetrical rail 3 gn 8.7...150 Hz symmetrical rail 1 mm 5...13.2 Hz panel mounting 0.7 gn 13.2...100 Hz panel mounting
Depth3.5 in (90 mm)
Width1.0 in (25 mm)
Height3.5 in (90 mm)
StandardsIEC 61131-2 UL 508 EIA-485
MarkingCE
CategoryUS10MSX22533
InsulationBetween bus and internal logic 1000 V DC
Local signalling1 LED (green/yellow) for power supply 1 LED (green/red) for communication
Transmission rate1.5 Mbit/s 656.2 ft (200 m) 500 kbit/s 1312.3 ft (400 m) 187.5 kbit/s 3280.8 ft (1000 m) 9.6...93.75 kbit/s 3937.008 ft (1200 m) 3...12 Mbit/s 328.08 ft (100 m)
Electromagnetic emissionConducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15...0.5 MHz IEC 55011 Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5...300 MHz IEC 55011 Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBμV/m QP class A30...230 MHz IEC 55011 Radiated emissions 60...54 dBμV/m QP30...100 MHz Marine specification (LR, ABS, DNV, GL) Radiated emissions 24 dBμV/m QP156...165 MHz Marine specification (LR, ABS, DNV, GL) Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBμV/m QP class A230...1000 MHz IEC 55011 Radiated emissions 80...50 dμV/m QP150...30000 kHz Marine specification (LR, ABS, DNV, GL) Radiated emissions 54 dBμV/m QP100...2000 MHz Marine specification (LR, ABS, DNV, GL)
Resistance to fast transients2 kV IEC 61000-4-4 power lines) 2 kV IEC 61000-4-4 relay output) 1.5 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link)
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Resistance to conducted disturbances10 V 0.15...80 MHz IEC 61000-4-6 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3
Ambient air temperature for operation14...131 °F (-10...55 °C) horizontal installation 14...122 °F (-10...50 °C) vertical installation
Resistance to electrostatic discharge8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2 8 kV in air Marine specification (LR, ABS, DNV, GL) 6 kV on contact Marine specification (LR, ABS, DNV, GL)
MPN
TM4PDPS1
