Schneider Electric TM5C24D18T

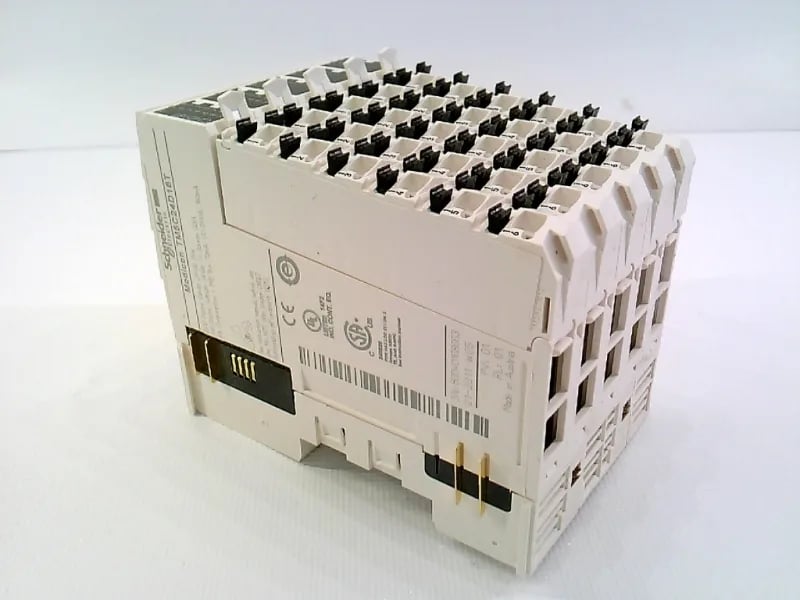

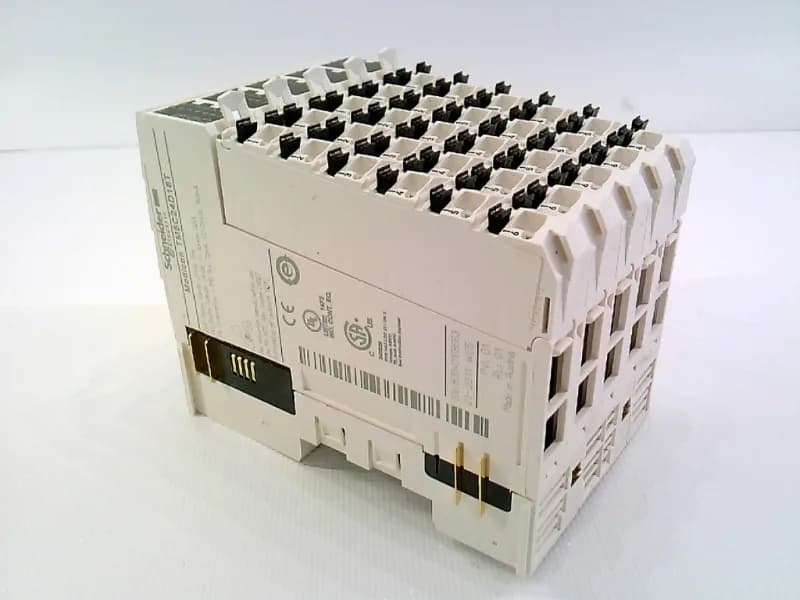

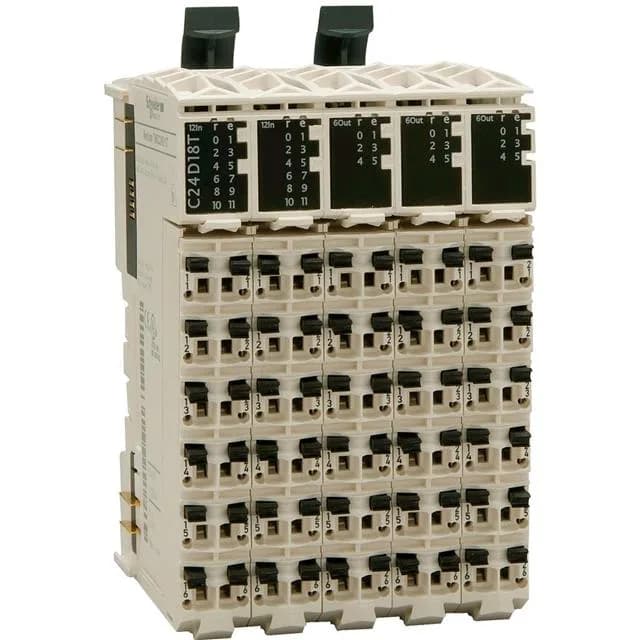

Schneider TM5C24D18T Compact I/O Block, 24 Inputs 18 Outputs

MPNTM5C24D18T
Active

Schneider Modicon TM5C24D18T Compact I/O Expansion Block, 24 Discrete Sink Inputs (24 V DC), 18 Transistor Source Outputs (0.5 A), Spring Terminal, DIN Rail Mount.

$174.59Ref. price · indicative, final on quote
Schneider Electric TM5C24D18T datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5C24D18T key specifications
ParameterValue
Range of productModicon TM5
Product or component typeCompact I/O expansion block
Maximum voltage drop<0.3 V at 500 mA output
Discrete input voltage24 V DC 20.4...28.8 V)
Discrete output voltage24 V DC 20.4...28.8 V)transistor 24 V DC 20.4...28.8 V)DC
Voltage state 0 guaranteed<= 5 V
Voltage state 1 guaranteed>= 15 V
Discrete input current3.75 mA at 24 V DC
Discrete output current0.5 A per output
Maximum leakage current5 µA when switched off
Typical current consumption70 mA 5 V DC 140 mA 24 V DC for inputs/outputs
Power dissipation in3.71 W

All specifications

TM5C24D18T additional specifications
ParameterValue
IP degree of protectionIP20
Mounting supportDIN rail
Electrical connectionRemovable spring terminal block
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail
Depth3.0 in (75 mm)
Width0.5 in (12.5 mm)
Height3.9 in (99 mm)
StandardsIEC 61131-2 UL 508 CSA C22.2 No 213 CSA C22.2 No 142
MarkingCE
CategoryUS1PC1222532
Input filtering<= 25 ms configurable by software
Input impedance6.4 kOhm
Local signalling5 LEDs (green) for power supply 5 LEDs (red) for power supply 24 LEDs (green) for input status 18 LEDs (yellow) for output status
Discrete input logicSink
Discrete input number24 at 24 V DC
Discrete output logicSource
Discrete output number18 transistor at 24 V DC
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation14...122 °F (-10...50 °C) vertical installation) 14...140 °F (-10...60 °C) horizontal installation)

Product details

TM5C24D18T – Modicon TM5 Compact I/O Block

The Schneider Electric TM5C24D18T is a compact I/O expansion block for the Modicon TM5 system, packing 24 sink inputs and 18 source transistor outputs into a 12.5 mm wide slice. Inputs are 24 V DC with a typical draw of 3.75 mA and an impedance of 6.4 kOhm. Input filtering is configurable via software up to 25 ms, allowing debounce adjustments for noisy environments. Outputs are source transistors at 0.5 A per channel, with a maximum voltage drop under 0.3 V at 500 mA. Off-state leakage is 5 µA. Depth is 75 mm, height 99 mm.

Environmental and Mounting Details

Rated IP20, suitable for clean, dry cabinet environments. Operating temperature depends on orientation: -10 to 50 °C vertical, -10 to 60 °C horizontal. Vibration resistance is 1 gn on DIN rail (8.4 to 150 Hz), shock 15 gn for 11 ms. Pollution degree 2.

Meets standards IEC 61131-2, UL 508, CSA C22.2 No 213, and CSA C22.2 No 142. CE marked.

Frequently asked questions

What certifications does TM5C24D18T carry?

It is certified to IEC 61131-2, UL 508, and CSA C22.2 No 213 and No 142, and bears CE marking. These cover industrial control equipment for international and North American installations.
