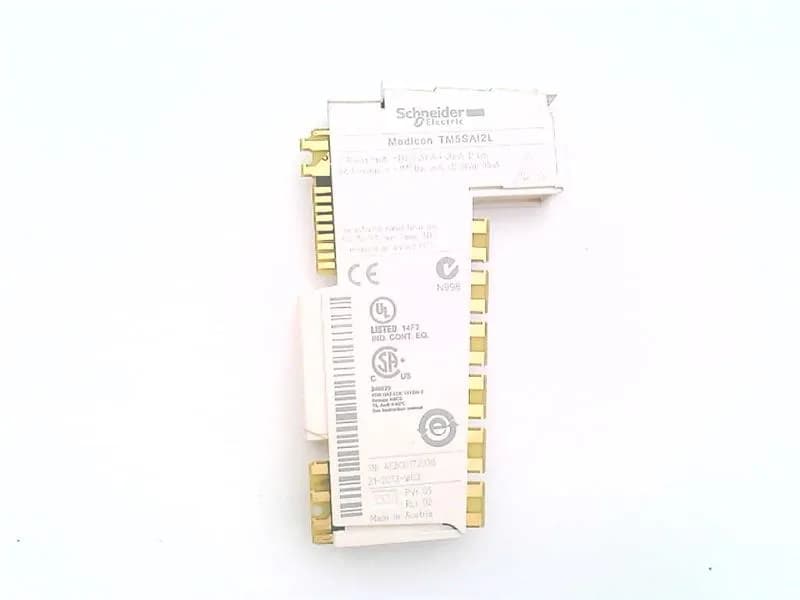

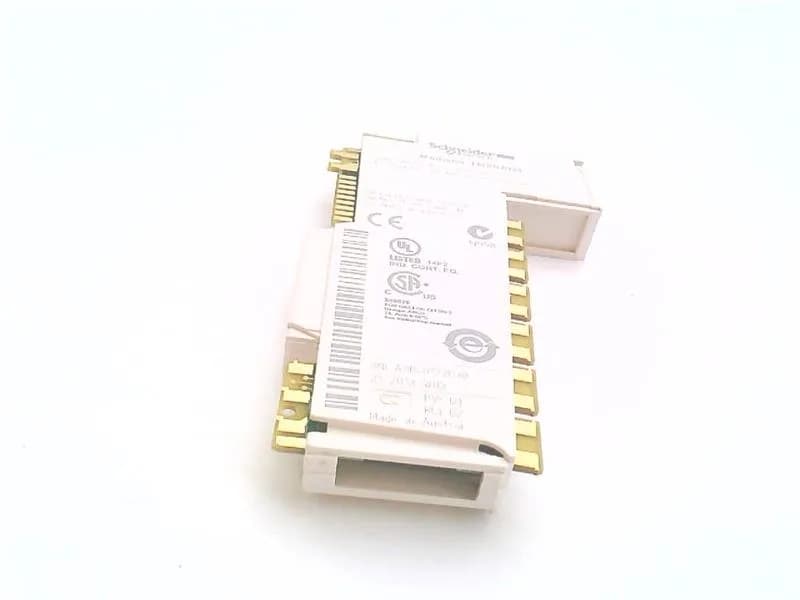

The Schneider Electric TM5SAI2L is a 2-channel analog input module for the Modicon TM5 system, accepting voltage ±10 V and current 0–20 mA / 4–20 mA. Each channel provides 12-bit resolution (2.441 mV for voltage, 4.883 µA for current) with a 1 ms sampling duration for analog inputs and 300 µs for the current mode. The module draws 2 mA from the 5 V DC bus and 5 mA from the 24 V DC I/O supply; total power dissipation is 0.81 W.
Width is 12.5 mm with a depth of 75 mm and height of 99 mm — this narrow profile fits high-density TM5 racks. The housing is white (PANTONE-like) with LED indicators: one green for power supply, one red for second supply, and two green per input for status. It is IP20 rated, suitable for enclosure mounting with pollution degree 2 environment. Ambient operating range is 0…55 °C horizontally (0…60 °C with derating) or 0…50 °C vertically. Storage from -25…70 °C. Isolation between channels and bus is 500 Vrms AC, which covers typical panel wiring voltages. Input impedance is ≥20 mΩ — note this is an exceptionally low value; verify against your sensor output impedance if that matters for your application.
The module carries CE marking and complies with IEC 61131-2, CSA C22.2 No 213, UL 508, and CSA C22.2 No 142. These cover safety and programmable controller standards for North American and European installations. Vibration resistance: 1 gn on DIN rail (8.4–150 Hz) with a 3.5 mm displacement at 5–8.4 Hz. Shock resistance: 15 gn for 11 ms.
Production status is active. No end-of-life or phase-out notices exist.
